SKU: 4BLOCKm2/18

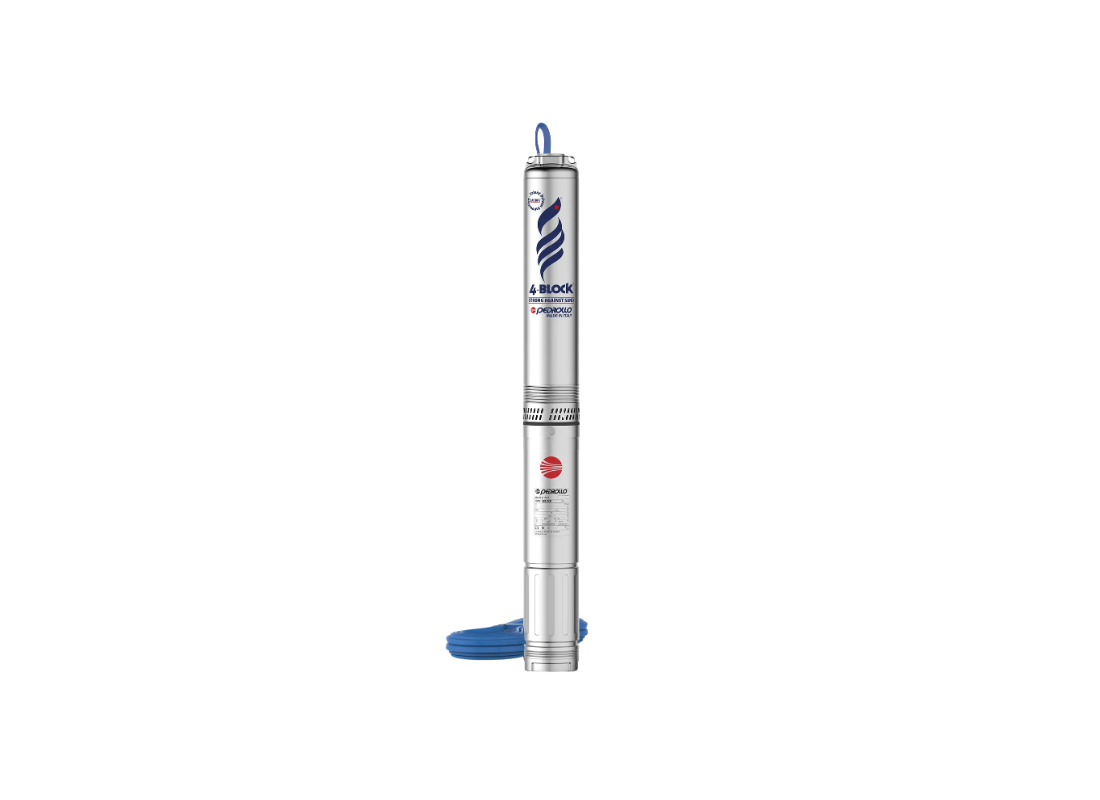

Pedrollo 4BLOCKm2/18 Stainless Steel 1.10kW 2-Wire 4" Submersible Pump with 30m Lead and Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Supplied complete with a 1.10kW 2-wire motor and 30-metre lead, the Pedrollo 4BLOCKm2/18 is a high-head submersible pump for domestic water supply and small commercial irrigation networks. This 4BLOCK2/18 model features patented floating impellers that handle sand concentrations up to 200 g/m³, making it ideal for applications requiring pressure from significant depths.
Drawing 8 Amps from a 240V single-phase supply, the motor delivers 135 metres of shut-off head with a maximum flow of 60 L/Min. The hydraulic design incorporates fully independent floating impellers that tolerate abrasive sand without efficiency loss. The 32 mm discharge port connects to standard pipework, and the pre-installed 30-metre lead simplifies borehole installation.
Stainless steel AISI 304 construction resists corrosion during continuous submersion. The non-toxic food-safe oil-filled motor is suitable for potable water systems, with the power cord HRC certified for drinking water use. Noryl diffusers and Delrin impellers provide abrasion resistance, extending service life in sandy conditions.
Weighing 17.0 kg, the pump features a compact 4-inch profile for standard boreholes. The built-in motor capacitor simplifies electrical connections, eliminating the need for an external control box. Continuous S1 duty rating with Class F insulation and IP X8 protection ensures reliable operation up to 35°C.
FEATURES- Ready-to-install design with integrated capacitor and thermal protector
- Complete with 30-metre power lead for straightforward installation
- Patented floating impeller hydraulics handle sand up to 200 g/m³
- Drinking water approved power cord with ACS certification
- Food-safe oil-filled motor for potable water applications
- Class F insulation with IP X8 protection rating
- Continuous S1 duty operation for reliable long-term use
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this high-head domestic pump lift water from deep wells?
The 4BLOCKm2/18 produces an impressive shut-off head of 135 metres with a maximum flow of 60 L/Min.
How much electrical current does this single-phase borehole motor draw?
Operating on a 240 V single-phase supply, the 1.1 kW motor of the 4BLOCKm-2-18 draws 8 Amps during duty.
What is the total weight of this 4-inch submersible unit?
The 4BLOCKm 2 18 has an overall weight of 17.0 kg and maintains a compact 4-inch profile for standard boreholes.
Can this pump handle water with high levels of suspended sand?
Patented floating impeller hydraulics allow the 4BLOCKm_2_18 to process sand concentrations up to 200 g/m3 without efficiency loss.
What features eliminate the need for a surface-mounted control box?
A built-in motor capacitor and thermal overload protector in the 4BLOCKm2/18 eliminate the need for an external control panel.
