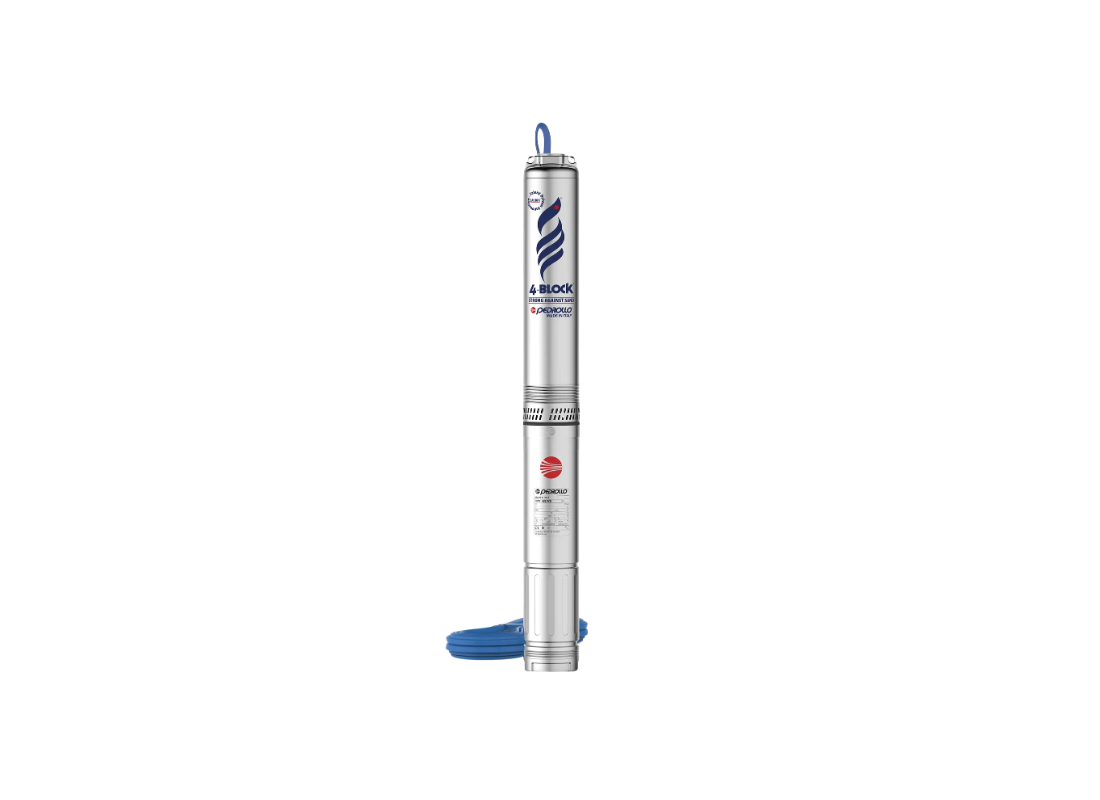

Pedrollo 4BLOCKm4/13 Stainless Steel 1.10kW 2-Wire 4" Submersible Pump with 30m Lead and Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Supplied complete with a 1.10kW 2-wire motor and 30-metre lead, the Pedrollo 4BLOCKm4/13 is a high-flow submersible pump for agricultural irrigation and commercial water supply applications. This 4BLOCK4/13 model features patented floating impellers that handle sand concentrations up to 200 g/m³, delivering substantial volume from 4-inch boreholes.
Powered by a 240V single-phase motor drawing 8 Amps, the pump achieves 97 metres of shut-off head with a maximum flow of 100 L/Min. The hydraulic design incorporates fully independent floating impellers that tolerate suspended solids without performance loss. The 32 mm discharge port connects to standard pipework, and the factory-fitted 30-metre lead simplifies installation.
Stainless steel AISI 304 construction resists corrosion during continuous submersion. The non-toxic food-safe oil-filled motor is suitable for potable water applications, with the power cord HRC certified for drinking water use. Noryl diffusers and Delrin impellers provide abrasion resistance in sandy conditions.
At 16.4 kg, the pump features a compact 4-inch profile for standard boreholes. The built-in motor capacitor eliminates external control box requirements. Continuous S1 duty rating with Class F insulation and IP X8 protection ensures dependable operation up to 35°C.
FEATURES- Ready-to-install with integrated capacitor and thermal protection
- Complete with 30-metre power lead for convenient setup
- Patented floating impeller technology handles sand up to 200 g/m³
- ACS certified power cord approved for drinking water supply
- Food-safe oil-filled motor suitable for potable water applications
- Class F insulation with IP X8 submersion protection
- Continuous S1 duty rating for dependable operation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this high-flow agricultural borehole pump elevate water?
The 4BLOCKm4/13 reaches an impressive shut-off head of 97 metres while delivering high flow rates up to 100 L/Min.
Is the motor filling oil non-toxic and safe for drinking water systems?
Yes, the 4BLOCKm-4-13 uses a motor filled with non-toxic, food-grade oil suitable for domestic potable water use.
What length of power cord comes pre-wired to this unit?
A 30-metre power lead is pre-installed on the 4BLOCKm 4 13 to simplify electrical connection down the well.
What is the operating current of this 1.1 kW single-phase motor?
Powered by a 240 V single-phase motor rated at 1.1 kW, the 4BLOCKm_4_13 draws 8 Amps during operation.
What discharge connection size is provided on this model?
The 4BLOCKm4/13 features a standard 32 mm discharge port for connecting to rising main pipework.
