SKU: 4BLOCKm4/7

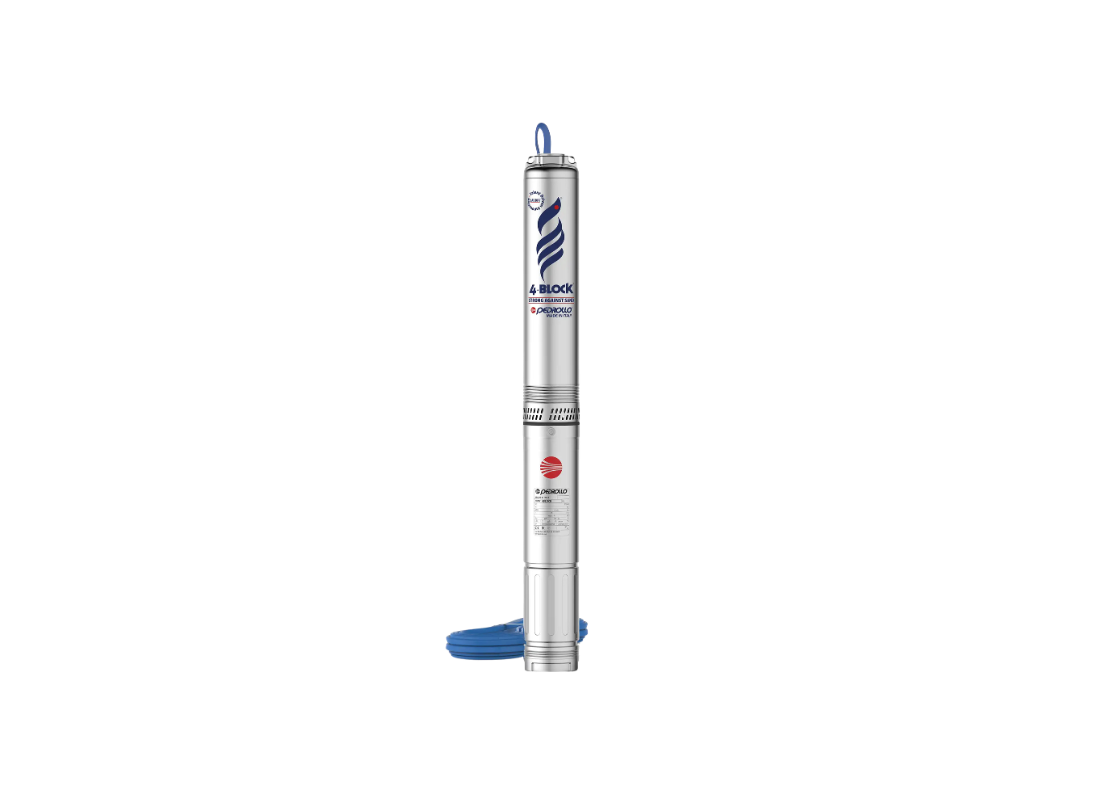

Pedrollo 4BLOCKm4/7 Stainless Steel 0.55kW 2-Wire 4" Submersible Pump with 30m Lead and Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Delivered complete with a 0.55kW 2-wire motor and 30-metre lead, the Pedrollo 4BLOCKm4/7 is a medium-flow submersible pump for domestic water supply and light commercial irrigation. This 4BLOCK4/7 model features patented floating impellers that handle sand up to 200 g/m³ while maintaining hydraulic performance in 4-inch boreholes.
The 240V single-phase motor draws 4.4 Amps and achieves 52 metres of shut-off head with a maximum flow of 100 L/Min. The hydraulic design incorporates fully independent floating impellers that tolerate suspended solids without performance loss. The 32 mm discharge port connects to standard distribution pipework, and the factory-fitted 30-metre lead simplifies installation.
Stainless steel AISI 304 construction resists corrosion during continuous submersion. The non-toxic food-safe oil-filled motor makes this pump suitable for potable water applications, with the power cord HRC certified for drinking water use. Noryl diffusers and Delrin impellers provide abrasion resistance in sandy conditions.
At 12.1 kg, the pump maintains a compact 4-inch profile for standard boreholes. The built-in motor capacitor eliminates external control box requirements. Continuous S1 duty rating with Class F insulation and IP X8 protection ensures dependable operation up to 35°C.
FEATURES- Ready-to-install with integrated capacitor and thermal protection
- Complete with 30-metre power lead for convenient setup
- Patented floating impeller technology handles sand up to 200 g/m³
- ACS certified power cord approved for drinking water supply
- Food-safe oil-filled motor suitable for potable water applications
- Class F insulation with IP X8 submersion protection
- Continuous S1 duty rating for dependable operation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the flow and pressure capabilities of this medium-flow pump?
The 4BLOCKm4/7 achieves 52 metres of shut-off head with a maximum delivery rate of 100 L/Min.
Does this submersible unit include a pre-installed power cable?
Yes, the 4BLOCKm-4-7 comes supplied with a factory-fitted 30-metre power lead for straightforward borehole installation.
Is this pump suitable for continuous running duty?
The 4BLOCKm 4 7 is rated for continuous S1 duty operation with Class F insulation and IP X8 submersion protection.
What electrical current does this 0.55 kW single-phase motor draw?
Connected to a 240 V single-phase supply, the 0.55 kW motor of the 4BLOCKm_4_7 draws 4.4 Amps.
What certification verifies that the power cable is safe for drinking water?
The power cable of the 4BLOCKm4/7 is HRC certified and approved by ACS for drinking water applications.
