SKU: 4BLOCKm6/10

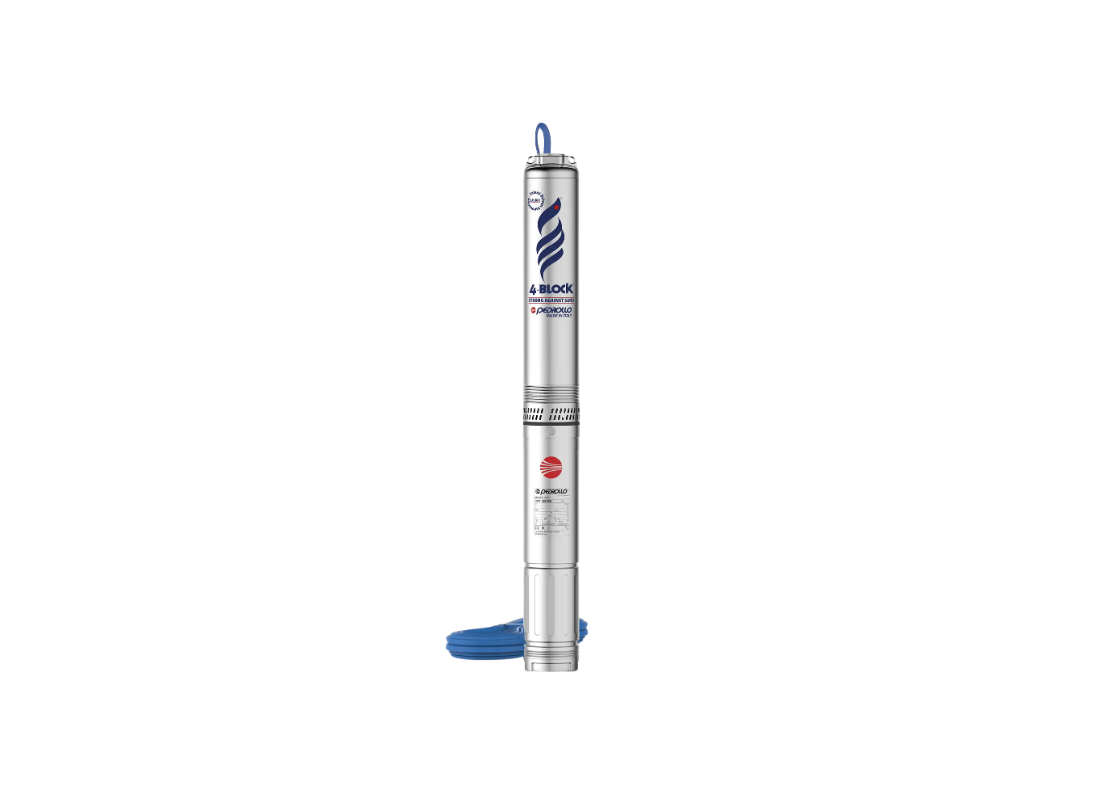

Pedrollo 4BLOCKm6/10 Stainless Steel 1.10kW 2-Wire 4" Submersible Pump with 30m Lead and Floating Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Supplied complete with a 1.10kW 2-wire motor and 30-metre lead, the Pedrollo 4BLOCKm6/10 is a high-flow submersible pump for commercial-scale irrigation and industrial water distribution systems. This 4BLOCK6/10 model features patented floating impellers that handle sand concentrations up to 200 g/m³ while sustaining high flow rates over extended periods in 4-inch boreholes.
Powered by a 240V single-phase motor drawing 8 Amps, the pump delivers 63 metres of shut-off head with a maximum flow of 150 L/Min. The hydraulic design incorporates fully independent floating impellers that tolerate suspended solids without efficiency loss. The 32 mm discharge port connects to standard pipework, and the pre-installed 30-metre lead simplifies borehole installation.
Stainless steel AISI 304 construction resists corrosion during continuous submersion. The non-toxic food-safe oil-filled motor is suitable for potable water applications, with the power cord HRC certified for drinking water use. Noryl diffusers and Delrin impellers provide abrasion resistance in sandy conditions.
Weighing 16.4 kg, the pump features a compact 4-inch profile for standard boreholes. The built-in motor capacitor eliminates external control box requirements. Continuous S1 duty rating with Class F insulation and IP X8 protection ensures reliable performance up to 35°C.
FEATURES- Ready-to-install with integrated capacitor and thermal protection
- Complete with 30-metre power lead for convenient setup
- Patented floating impeller technology handles sand up to 200 g/m³
- ACS certified power cord approved for drinking water supply
- Food-safe oil-filled motor suitable for potable water applications
- Class F insulation with IP X8 submersion protection
- Continuous S1 duty rating for dependable operation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum shut-off lift height of this commercial-scale irrigation pump?
The 4BLOCKm6/10 delivers 63 metres of shut-off head while sustaining high flow rates up to 150 L/Min.
How much current does this 1.1 kW single-phase motor draw under load?
Powered by a 1.1 kW single-phase motor on 240 V, the 4BLOCKm-6-10 draws 8 Amps during normal duty.
Does this borehole pump require an external starting control box?
The 4BLOCKm 6 10 features a built-in capacitor and thermal protector, eliminating the need for an external starter box.
How does the hydraulic stack tolerate abrasive sand in groundwater?
Independent floating impellers enable the 4BLOCKm_6_10 to handle sand concentrations up to 200 g/m3 without seizing.
Is the power cable certified for safe contact with drinking water?
Yes, the power cable on the 4BLOCKm6/10 is ACS certified and approved for potable drinking water supply.
