SKU: 5CRM80X-EP22

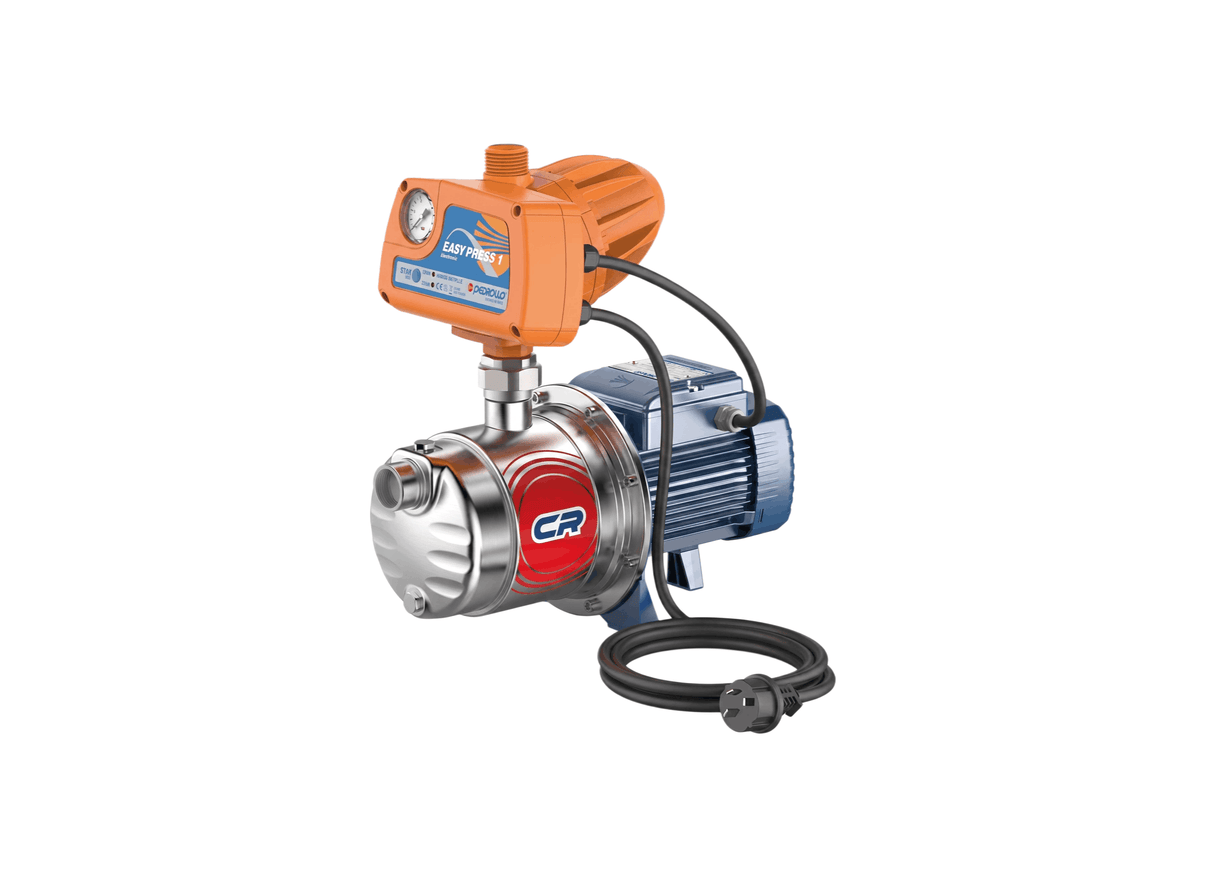

Pedrollo 5CRM80X-EP22 Stainless Steel Multi-Stage Pressure Pump for Garden Irrigation with Noryl Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
For domestic and civil clean-water service, the 5CRM80X-EP22 Easy Pump Pressure System provides pressure delivery for applications using small and medium sized pressure tanks. The same series is also specified for garden and orchard irrigation, provided the liquid is clean and not chemically aggressive towards the pump materials.
With a 0.75 kW single-phase motor, the 5CRm 80-EP1 reaches a maximum head of 67 m and maximum flow of 80 L/Min at 50 Hz and 2900 min?¹. Its maximum working pressure is 7 bar, and the motor is intended for continuous S1 service within the stated operating conditions.
The hydraulic assembly is a multi-stage centrifugal pump, with performance varying according to the operating point shown on the characteristic curve. This configuration provides the pressure range required for clean-water distribution and pressure system duties without extending the specified application beyond domestic, civil and garden or orchard use.
Stainless steel AISI 304 forms the pump body and backplate, while the hydraulic stages use Noryl FE1520PW impellers and diffusers. The permitted liquid temperature is -10°C to +40°C, and the single-phase 240 V motor includes thermal overload protection incorporated into the winding.
FEATURES
- Multi-stage centrifugal construction uses successive hydraulic stages within the pump assembly.
- Stainless steel AISI 304 pump body is fitted with threaded ports compliant with ISO 228/1.
- Stainless steel AISI 304 backplate provides the specified rear body construction.
- Noryl FE1520PW diffusers are fitted with anti-wear rings within the hydraulic stage assembly.
- Stainless steel AISI 431 motor shaft provides the specified shaft material for the rotating assembly.
- AR-13 mechanical seal incorporates a 13 mm shaft diameter, ceramic stationary ring, graphite rotating ring and NBR elastomer.
- 6203 ZZ / 6203 ZZ bearings are specified for the 5CRm 80-EP1 rotating assembly.
- Class F insulation with IP X4 protection forms part of the specified single-phase motor construction.
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 67 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.2 Amps |
| Suitable For | Garden Irrigation |
| Body Material | AISI 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of water is suitable for this pressure pump?
Clean water and liquids that are not chemically aggressive towards its materials are suitable for the 5CRM80X-EP22, including domestic distribution and garden irrigation.
What maximum head can the pump deliver?
The pump reaches a maximum head of 67 metres; the 5CRM80X_EP22 supports pressure delivery, but maximum flow is 80L/Min.
What liquid temperature range is permitted during operation?
The permitted liquid temperature is -10 °C to +40 °C, and the 5CRM/80X/EP22 should operate within this range for the intended clean-water applications.
Which materials are used in the pump’s hydraulic assembly?
The pump body and backplate use AISI 304 stainless steel, while Noryl FE1520PW forms the impellers and diffusers in the 5CRM 80X EP22 assembly.
What electrical supply and motor protection does the system require?
The system uses a single-phase 240 V supply, with a 0.75 kW P2 motor and winding-integrated thermal overload protection for the 5CRM80X-EP22.
