SKU: F32/200AB

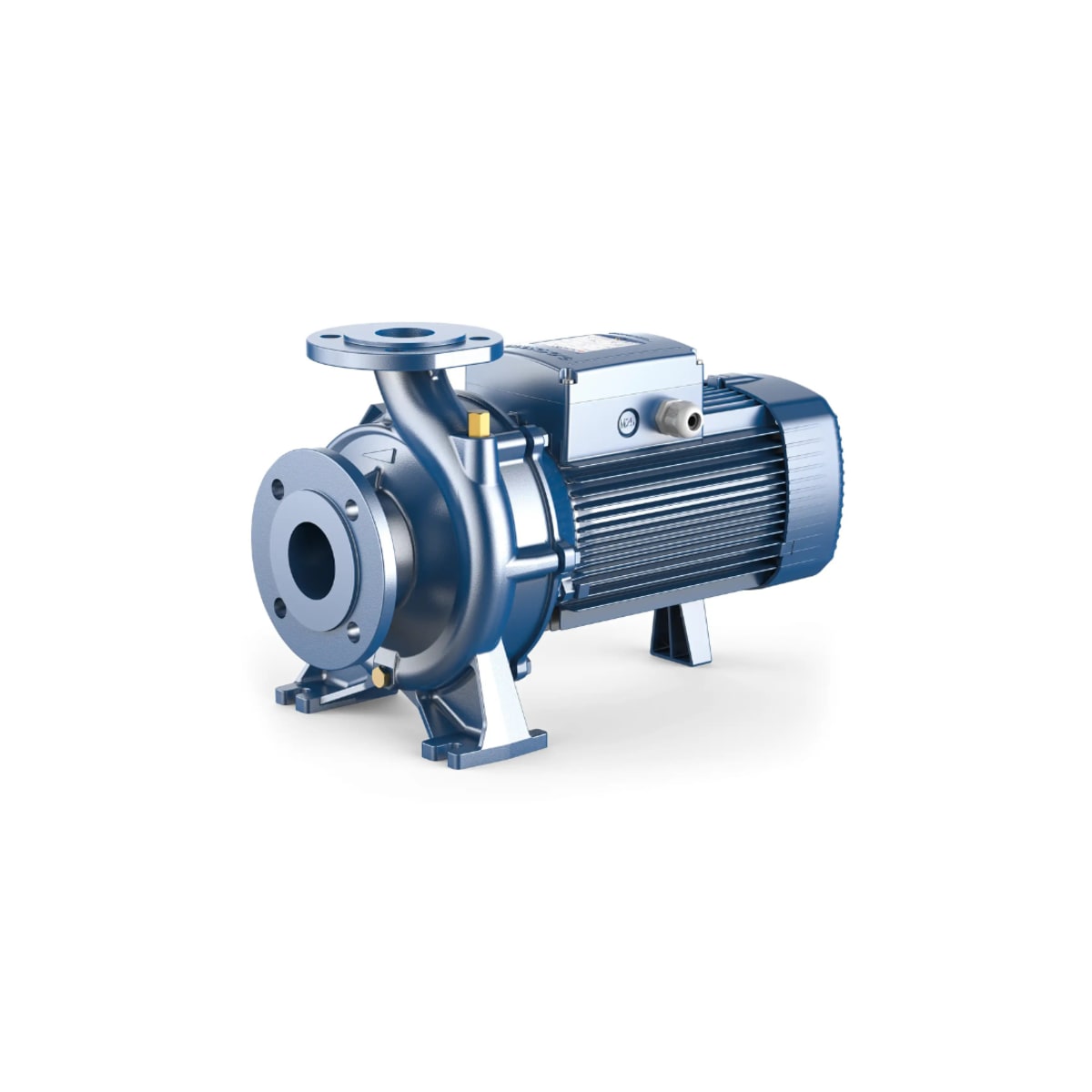

Pedrollo F32/200AB Cast Iron Close-Coupled Centrifugal Pump for Pressure Boosting with Brass Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Focused entirely on municipal and industrial pressure boosting, the Pedrollo F32/200AB accurately directs clear, non-abrasive fluids across complex infrastructure. Proper deployment dictates that the machine be housed indoors or within a sheltered pumping station away from direct elemental exposure.
Utilizing a 415 V three-phase connection, the 4 kW motor pushes fluid powerfully to secure a verified Max Head 55 m and a corresponding Max Flow 320 L/Min. Plumbing requirements mandate securely mating the system to a 50 mm intake line and a 32 mm delivery line to ensure correct hydraulic behavior.
Constructed as an EN733 compliant close-coupled blueprint, the internal volute handles flow seamlessly over extended cycles. This exact geometric proportion allows for a maximum manometric suction lift of 7 m, optimizing pressure generation without risking internal hydraulic shear.
Mechanical strength relies on a dense cast iron external body safeguarding a dedicated brass impeller. A professional-grade Ceramic, Graphite, and NBR interface effectively seals the mechanical gap. Power is provided by an IE3 certified electric motor, carrying IP55 environmental shielding and F-class thermal insulation.
FEATURES
- Upgraded FN-24 Ø 24 mm mechanical isolation component
- Main rotational shaft crafted from AISI 431 stainless steel
- System operates at a nominal electrical current of 8.9 A
- Pump housing engineered to tolerate 10 bar (PN10) maximum pressure
- Certified by the manufacturer for continuous S1 commercial usage
- Safe ambient installation climate restricted to -10 °C to +40 °C
- Wide thermal handling capacity for liquids spanning -10 °C up to +90 °C
SPECIFICATIONS
| Max Flow | 320 L/Min |
| Max Head | 55 m |
| Power | 4 kW / 415v |
| Rated Current | 8.9 Amps |
| Suitable For | Industrial Water Distribution |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What liquid and ambient temperatures does the datasheet allow?
For the F32/200AB, the permitted liquid temperature range is -10°C to +90°C, and the ambient temperature range is -10°C to +40°C.
What power rating should I use when checking this SKU?
The P2 motor output of the F32 200AB is 4 kW.
Can the pump be used for air-conditioning water circulation?
Suitable uses for the F32_200AB include water supply, pressurisation, irrigation, air-conditioning water circulation, power washing, firefighting, and industrial or agricultural applications.
How high can the manometric suction head be?
The maximum manometric suction head for the F32-200AB is 7 m.
What should I know about the maximum casing pressure?
The pump body on the F32200AB is rated for a maximum pressure of 10 bar (PN10).
