SKU: F32/200BH

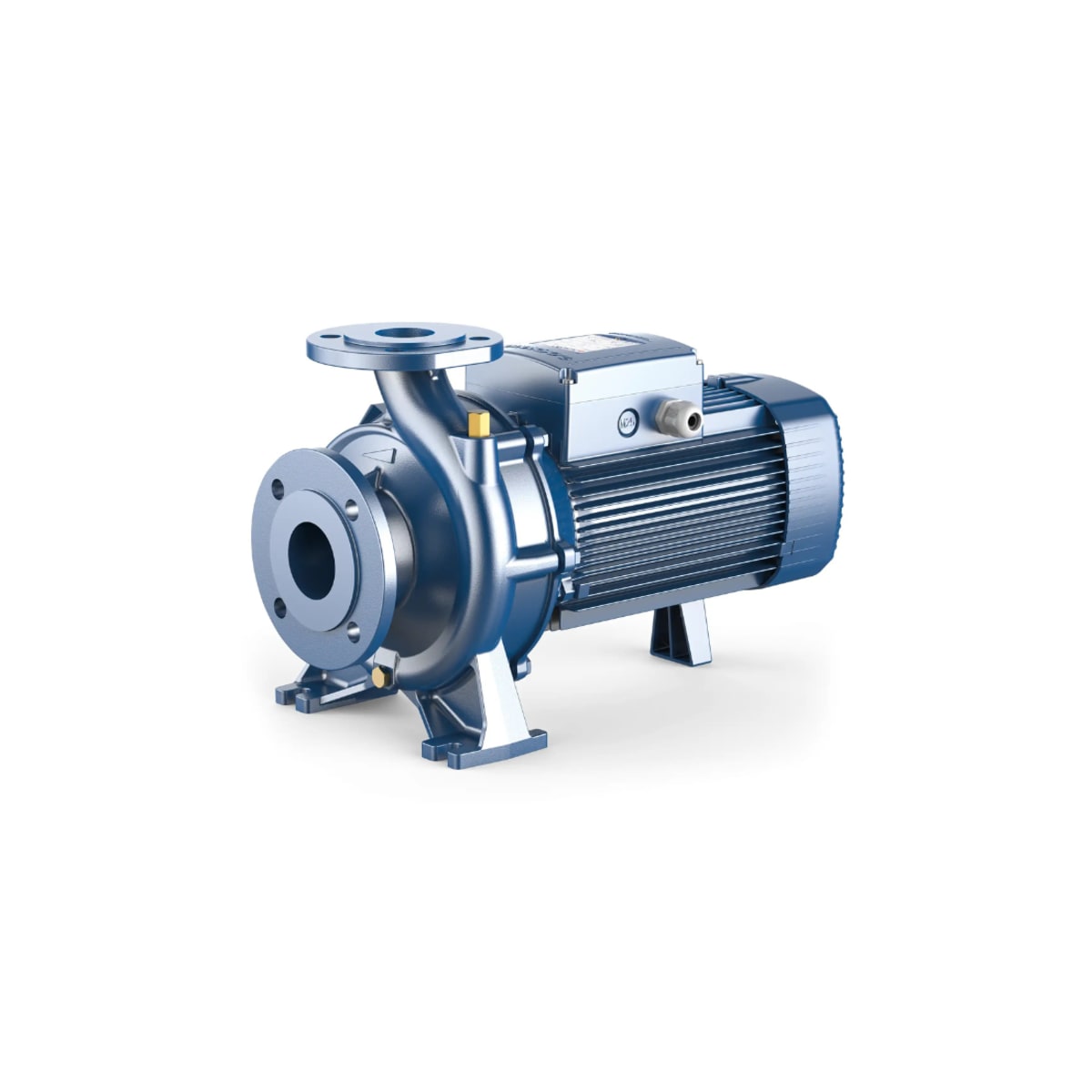

Pedrollo F32/200BH Cast Iron Horizontal Centrifugal Pump for Cooling Systems with Brass Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Engineered explicitly for commercial cooling systems and chilled water distribution, the Pedrollo F32/200BH moves non-aggressive liquids with high reliability. To preserve structural integrity and motor health, the equipment requires mounting inside well-ventilated, weather-shielded facility rooms.
Drawing from a 415 V industrial electrical supply, the 3 kW mechanism generates stable pressurization, specifically a Max Head 45 m and a Max Flow 300 L/Min. Integration into existing pipework requires a standard 50 mm suction entry bolted to a 32 mm pressurized exit port.
The horizontal flanged layout rigorously follows EN733 dimension standards, promoting balanced kinetic transfer during continuous operation. It draws clear water safely, maintaining a 7 m manometric suction limit without inducing destructive cavitation or severe fluid disruption.
A thick cast iron housing surrounds the precision brass impeller, translating motor torque into smooth volumetric movement. The rotational shaft is isolated by a trusted Ceramic, Graphite, and NBR seal configuration. The three-phase drive ensures IE3 compliance, complete with IP55 dust protection and class F temperature resistance.
FEATURES
- Industrial grade FN-24 Ø 24 mm dynamic mechanical seal interface
- Kinetic power transferred via an AISI 431 stainless steel shaft
- Electrical setup operating at a rated current of 7.3 A
- Primary cast casing tested to withstand a 10 bar (PN10) threshold
- Three-phase motor optimized for S1 continuous running applications
- Approved installation environment temperature of -10 °C to +40 °C
- Liquid thermal tolerance mapped directly from -10 °C to +90 °C
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 45 m |
| Power | 3 kW / 415v |
| Rated Current | 7.3 Amps |
| Suitable For | Industrial and Agricultural Clean Water Distribution |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is this pump suitable for continuous use with any liquid?
No. The F32/200BH is designed for clean water free from abrasive particles; unsuitable liquids can damage its components.
What P2 motor output is listed for the model?
The P2 motor output of the F32 200BH is 3 kW.
Where should the pump be installed for protection and ventilation?
Install the F32_200BH in a well-ventilated indoor location or in a protected area.
What is the permitted maximum pressure in the pump body?
The pump body on the F32-200BH is rated for a maximum pressure of 10 bar (PN10).
Are irrigation and domestic water supply listed uses?
The F32200BH is designed for clean water free from abrasive particles and liquids that could damage its components.
