SKU: F32/250A

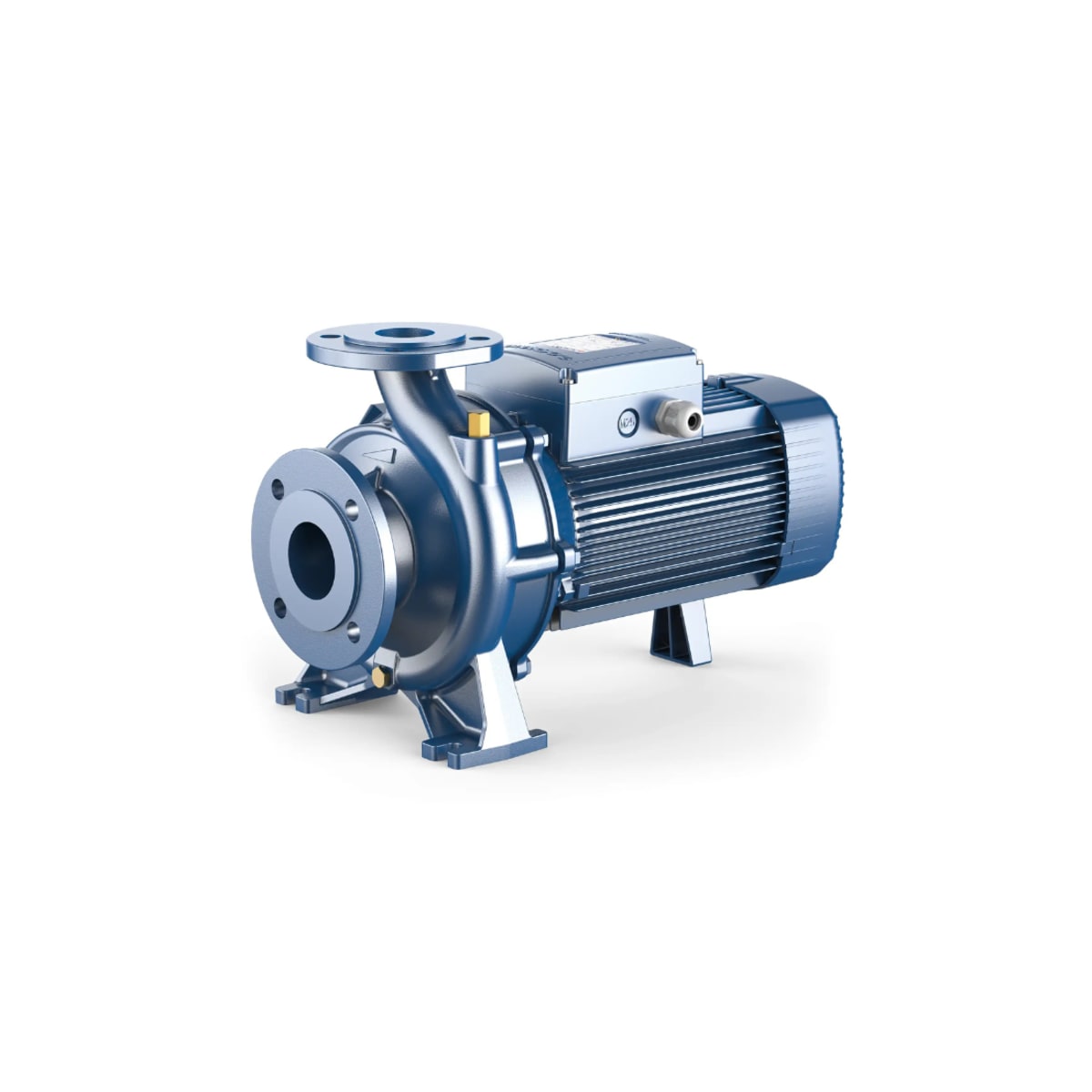

Pedrollo F32/250A Cast Iron Centrifugal Pump for Industrial Supply with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Deployed to tackle critical industrial supply requirements, the Pedrollo F32/250A transfers clear fluids dependably across complex infrastructure. It ensures that fluid handling demands are met securely, provided the assembly is shielded indoors away from direct environmental exposure.
Operating on a 415 V three-phase power feed, the 15 kW drive network confidently achieves a Max Head 97 m alongside a maximum output of Max Flow 500 L/Min. Pipeline integration utilizes a 50 mm flanged suction port matched with a 32 mm flanged discharge port to maintain exact delivery constraints.
The close-coupled footprint adheres entirely to EN733 standardized criteria. This rigid alignment guarantees a stable manometric suction limit reaching up to 7 m, minimizing internal turbulence and securing reliable kinetic energy transfer across continuous routing tasks.
The heavy cast iron primary housing is mated to a solid internal impeller for uncompromising momentum transfer. A specialized Ceramic, Graphite, and NBR dynamic seal isolates the rotational mechanism safely, while the three-phase motor features a standard IP55 enclosure combined with class F thermal regulation.
FEATURES
- Industrial mechanical isolation component utilizing Graphite and Ceramic
- Corrosion-resisting AISI 431 stainless steel rotational shaft
- Electrical system verified for a 25.0 A nominal current draw
- Main casing pressure tolerance explicitly verified to 10 bar (PN10)
- Built exclusively for S1 continuous running industrial applications
- Permitted ambient operating climate ranges from -10 °C up to +40 °C
- Supported liquid thermal capacities bridge -10 °C directly to +90 °C
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 97 m |
| Power | 15 kW / 415v |
| Rated Current | 25 Amps |
| Suitable For | Industrial and Agricultural Water Supply |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 50 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much P2 motor power is listed, in kW?
The P2 motor output of the F32/250A is 15 kW.
Does an outdoor installation need protection from the weather?
Install the F32 250A in a well-ventilated indoor location or in a protected area.
Which liquid and ambient temperature limits apply?
For the F32_250A, the permitted liquid temperature range is -10°C to +90°C, and the ambient temperature range is -10°C to +40°C.
Is this pump designed for industrial or agricultural duties?
Suitable uses for the F32-250A include water supply, pressurisation, irrigation, air-conditioning water circulation, power washing, firefighting, and industrial or agricultural applications.
What water quality is suitable for this pump?
The F32250A is designed for clean water free from abrasive particles and liquids that could damage its components.
