SKU: F40/160B

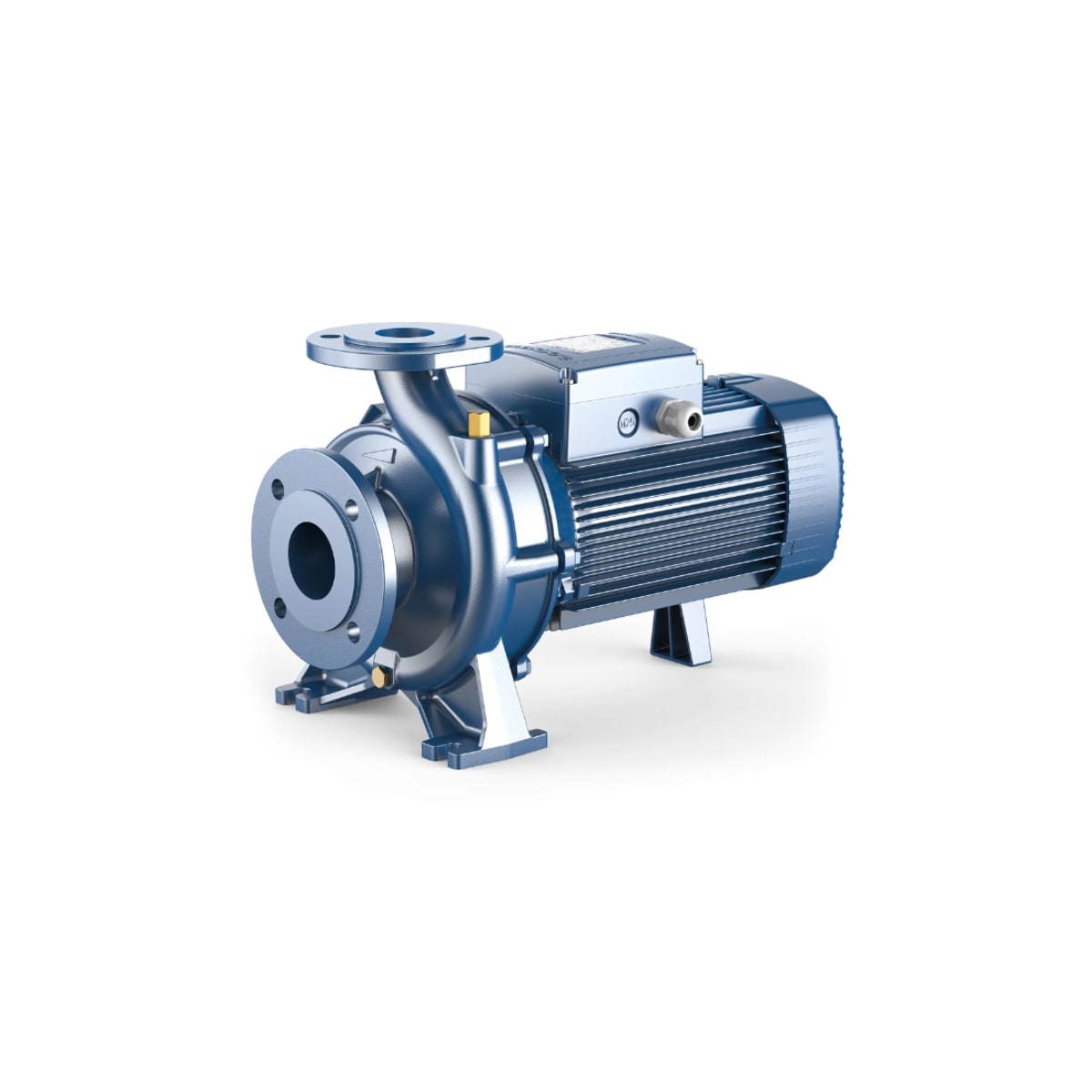

Pedrollo F40/160B Cast Iron Centrifugal Pump for Fluid Transfer with Brass Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Deployed to stabilize high-volume fluid transfer operations, the Pedrollo F40/160B mechanical assembly directs large quantities of clear liquids devoid of aggressive particles. To guarantee optimal operational lifespan, the unit must be located within environmentally controlled building zones away from harsh weather elements.
Demanding a 415 V three-phase power feed, the 3 kW engine delivers solid high-capacity metrics, specifically logging a Max Head 32 m alongside a Max Flow 600 L/Min. Standardized flanged routing uses a 65 mm suction connection paired with a 40 mm delivery line to push liquid upward efficiently.
The physical configuration strictly follows EN733 standardized spacing. It draws effectively, maintaining a 7 m manometric suction lift while balancing heavy fluid dynamics internally to prevent unwanted hydraulic sheer and operational vibration over long operational cycles.
Material engineering pairs a thick cast iron volute with a smooth brass impeller to ensure consistent volumetric displacement. A Ceramic, Graphite, and NBR assembly provides primary leak prevention. The motor operates at IE3 efficiency grades, flanked by class F thermal protection and an IP55 shell.
FEATURES
- Standardized FN-20 Ø 20 mm dynamic mechanical isolation interface
- Corrosion-resisting AISI 431 stainless steel shaft construction
- Rated current draw of 7.3 A under standard operating conditions
- Main body engineered strictly for 10 bar (PN10) maximum pressure
- Approved for S1 continuous running without thermal degradation
- Wide liquid temperature tolerance spanning safely from -10 °C up to +90 °C
- Requires protected indoor mounting for maximized equipment lifespan
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 32 m |
| Power | 3 kW / 415v |
| Rated Current | 7.3 Amps |
| Suitable For | Industrial and Agricultural Water Distribution |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 65 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What power rating should I use when checking this SKU?
The P2 motor output of the F40/160B is 3 kW.
Can the pump be used for air-conditioning water circulation?
Suitable uses for the F40 160B include water supply, pressurisation, irrigation, air-conditioning water circulation, power washing and industrial or agricultural applications.
How high can the manometric suction head be?
The maximum manometric suction head for the F40_160B is 7 m.
What should I know about the maximum casing pressure?
The pump body on the F40-160B is rated for a maximum pressure of 10 bar (PN10).
What liquid and ambient temperatures does the datasheet allow?
For the F40160B, the permitted liquid temperature range is -10°C to +90°C, and the ambient temperature range is -10°C to +40°C.
