SKU: F40/200A

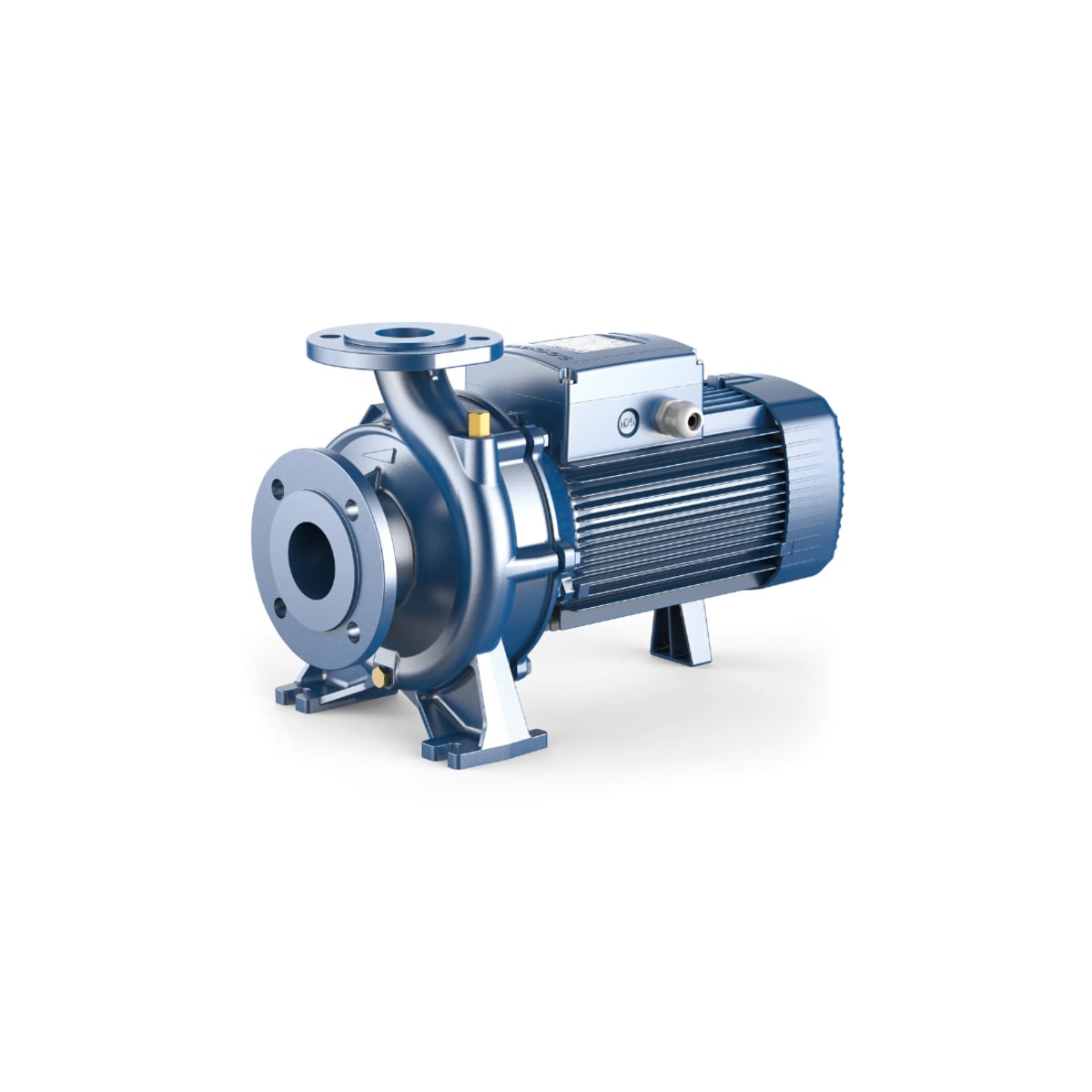

Pedrollo F40/200A Cast Iron Centrifugal Pump for HVAC Circulation with Brass Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Focused on stabilizing demanding HVAC circulation loops, the Pedrollo F40/200A accurately processes clear, non-abrasive fluids across complex commercial networks. Proper deployment dictates that the equipment be housed securely indoors or within a sheltered pumping station away from direct elemental exposure.
Utilizing a 415 V three-phase power grid, the heavy-duty 7.5 kW motor pushes liquid powerfully to secure a verified Max Head 55 m and a corresponding volumetric output of Max Flow 700 L/Min. Plumbing requirements mandate securely mating the system to a 65 mm intake line and a 40 mm delivery line.
Constructed using an EN733 compliant close-coupled blueprint, the internal volute balances rigorous flow dynamics seamlessly. This exact geometric proportion allows for a maximum manometric suction lift of 7 m, optimizing pressure generation without risking internal hydraulic shear or unwanted turbulence.
Mechanical strength relies on a dense cast iron external body safeguarding a precision brass impeller. A professional-grade Ceramic, Graphite, and NBR dynamic interface effectively seals the rotational gap. Energy is provided by an IE3 certified electric motor, carrying IP55 environmental shielding and F-class thermal insulation.
FEATURES
- Industrial FN-24 Ø 24 mm mechanical isolation component for shaft safety
- Main rotational transmission crafted from durable AISI 431 stainless steel
- System operates reliably at a nominal electrical current of 15.6 A
- Housing engineered to securely tolerate 10 bar (PN10) maximum internal pressure
- Certified by the manufacturer for non-stop S1 continuous commercial usage
- Safe ambient installation climate strictly confined to -10 °C to +40 °C
- Wide thermal handling capacity for clear liquids spanning -10 °C up to +90 °C
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 55 m |
| Power | 7.5 kW / 415v |
| Rated Current | 15.6 Amps |
| Suitable For | Industrial Water Distribution |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 65 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Does an outdoor installation need protection from the weather?
Install the F40/200A in a well-ventilated indoor location or in a protected area.
Which liquid and ambient temperature limits apply?
For the F40 200A, the permitted liquid temperature range is -10°C to +90°C, and the ambient temperature range is -10°C to +40°C.
Is this pump designed for industrial or agricultural duties?
Suitable uses for the F40_200A include water supply, pressurisation, irrigation, air-conditioning water circulation, power washing, firefighting, and industrial or agricultural applications.
What water quality is suitable for this pump?
The F40-200A is designed for clean water free from abrasive particles and liquids that could damage its components.
How much P2 motor power is listed, in kW?
The P2 motor output of the F40200A is 7.5 kW.
