SKU: F50/200AR

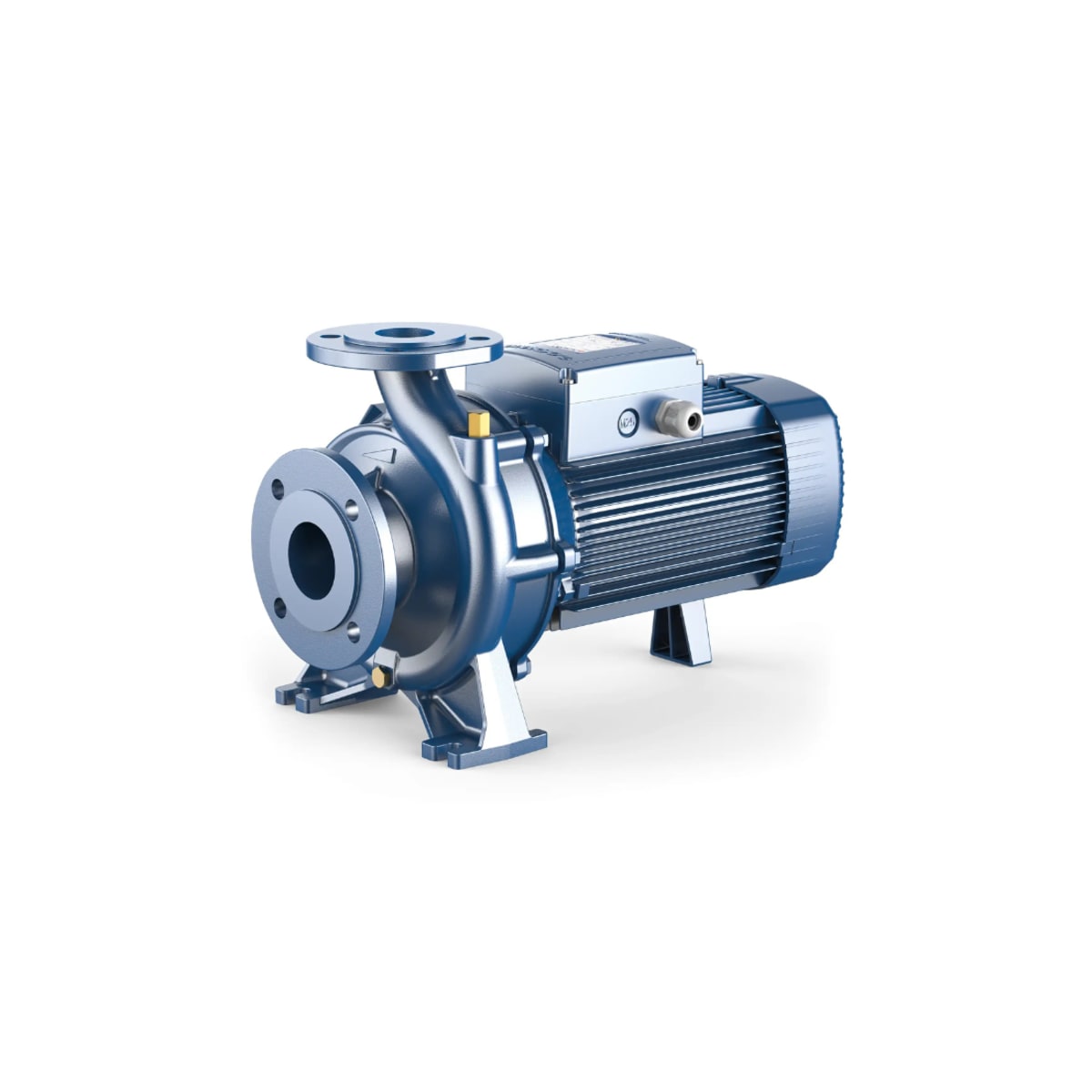

Pedrollo F50/200AR Cast Iron Close-Coupled Centrifugal Pump for Industrial Liquid Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Intended specifically for high-capacity industrial liquid transfer scenarios, the Pedrollo F50/200AR directs non-aggressive clean fluids with exceptional stability. Proper facility installation requires locating the machinery inside climate-protected, weather-shielded rooms to maintain optimal operational integrity over extensive mechanical cycles.
Harnessing a 415 V industrial electrical connection, the extreme 22 kW drive system generates massive pressurization, logging a Max Head 69 m alongside a Max Flow 1800 L/Min. Correct infrastructure attachment relies on standardized 65 mm suction and 50 mm discharge flanged connections to guide the fluid safely.
The horizontal flanged architecture observes EN733 dimensional standards flawlessly, promoting balanced kinetic transfer across heavy delivery phases. It pulls clear liquids securely, maintaining a 7 m manometric suction limit, which strictly minimizes destructive cavitation and severe flow disruption.
Heavy-duty cast iron housing encapsulates a dedicated closed impeller to direct momentum safely. Mechanical sealing is accomplished through a proven Ceramic, Graphite, and NBR interface. The three-phase mechanical setup ensures IE3 operational efficiency, reinforced by standard IP55 dust protection and class F temperature limits.
FEATURES
- Standardized dynamic sealing arrangement utilizing Graphite and Ceramic
- Rotational kinetic energy transferred via an AISI 431 stainless steel shaft
- Electrical architecture actively operating at a 41.5 A rated current
- Cast casing tested to reliably withstand a 10 bar (PN10) threshold
- Motor optimized specifically for continuous S1 commercial running
- Approved ambient installation climate restricted from -10 °C up to +40 °C
- Thermal fluid tolerance mapped precisely from -10 °C to +90 °C
SPECIFICATIONS
| Max Flow | 1800 L/Min |
| Max Head | 69 m |
| Power | 22 kW / 415v |
| Rated Current | 41.5 Amps |
| Suitable For | Industrial Water Supply |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 65 mm |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can the manometric suction head be?
The maximum manometric suction head for the F50/200AR is 7 m.
What should I know about the maximum casing pressure?
The pump body on the F50 200AR is rated for a maximum pressure of 10 bar (PN10).
What liquid and ambient temperatures does the datasheet allow?
For the F50_200AR, the permitted liquid temperature range is -10°C to +90°C, and the ambient temperature range is -10°C to +40°C.
What power rating should I use when checking this SKU?
The P2 motor output of the F50-200AR is 22 kW.
Can the pump be used for air-conditioning water circulation?
Suitable uses for the F50200AR include water supply, pressurisation, irrigation, air-conditioning water circulation, power washing, firefighting, and industrial or agricultural applications.
