SKU: F65/200B

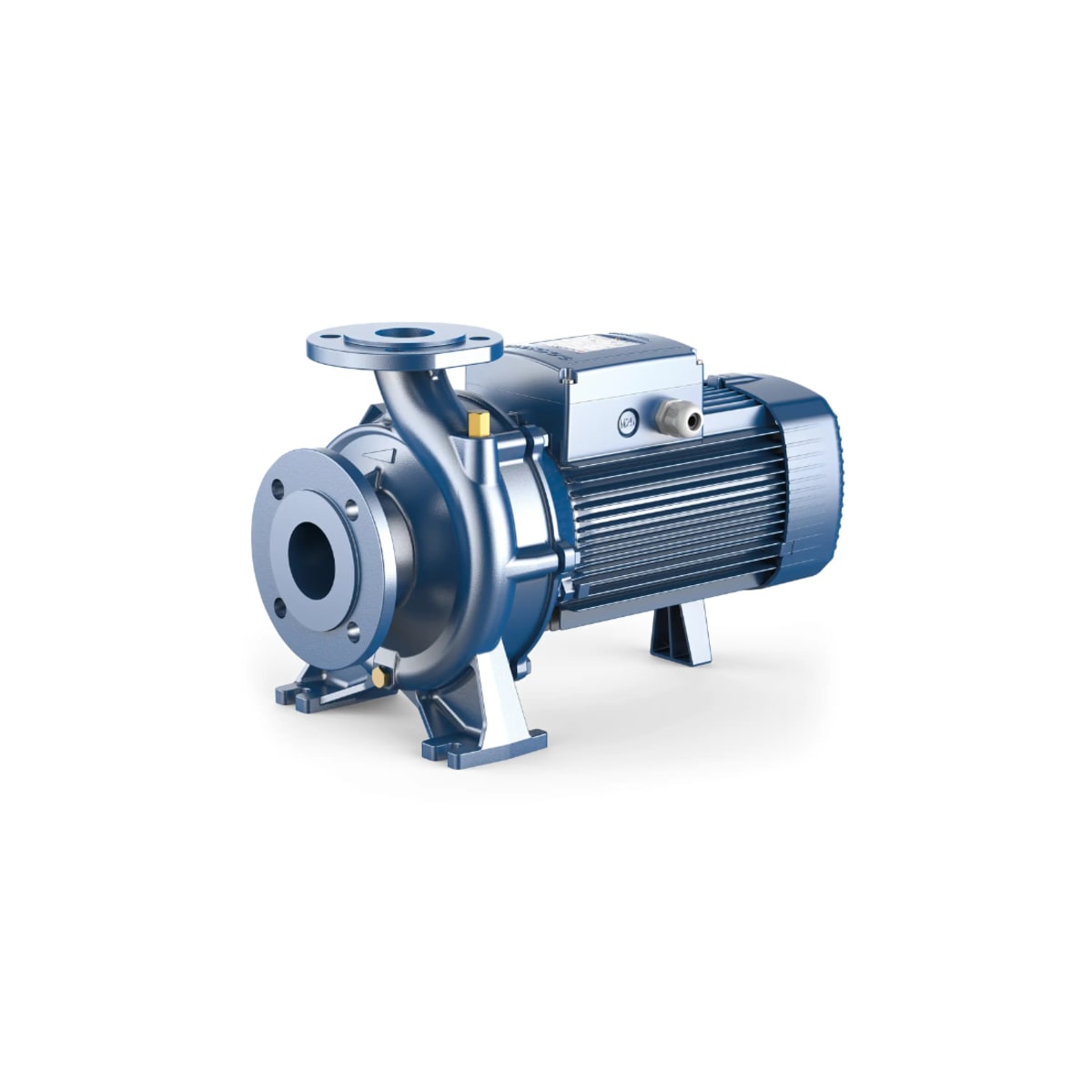

Pedrollo F65/200B Cast Iron End Suction Centrifugal Pump for HVAC Fluid Circulation with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Targeted at large-scale HVAC fluid circulation networks, the Pedrollo F65/200B provides unmatched stability for continuous clear liquid distribution. Proper installation mandates securely mounting the machinery indoors or inside a sheltered technical enclosure to avoid exposure to detrimental outdoor elements.
Powered by a dedicated 415 V three-phase grid, the 15 kW motor delivers highly consistent metrics, generating a Max Head 44 m and a massive Max Flow 2400 L/Min. Seamless pipeline integration involves attaching the infrastructure directly to an 80 mm intake flange and a 65 mm delivery flange.
Constructed as a close-coupled single stage end suction unit adhering directly to EN733 standardized spacing, the internal geometry handles rigorous flow demands safely. This physical footprint secures a reliable 7 m manometric suction lift while mitigating internal turbulence during extended, non-stop routing tasks.
A thick cast iron primary housing encloses a smoothly machined closed impeller, optimizing rotational energy transfer into steady kinetic movement. Dynamic containment depends on a trusted Ceramic, Graphite, and NBR mechanical seal. The high-efficiency IE3 drive mechanism incorporates an IP55 shell and class F thermal rating.
FEATURES
- FN-32 NU Ø 32 mm dynamic mechanical isolation interface component
- Corrosion-resisting AISI 431 stainless steel power transmission shaft
- Electrical system verified for a 30.0 A nominal current draw
- Main body engineered strictly for 10 bar (PN10) maximum pressure
- Approved for non-stop S1 industrial fluid routing applications
- Permitted ambient operating climate ranges from -10 °C up to +40 °C
- Supported liquid thermal capacities bridge -10 °C directly to +90 °C
SPECIFICATIONS
| Max Flow | 2400 L/Min |
| Max Head | 44 m |
| Power | 15 kW / 415v |
| Rated Current | 30 Amps |
| Suitable For | Process Water Handling |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum ambient temperature listed for installation?
The ambient temperature range for the F65/200B is -10°C to +40°C.
What pressure rating applies to the pump casing?
The pump body on the F65 200B is rated for a maximum pressure of 10 bar (PN10).
What is the P2 power rating of the F65/200B?
The P2 motor output of the F65_200B is 15 kW.
Can this pump circulate water in air-conditioning systems?
Yes. The F65-200B can circulate suitable clean water in air-conditioning systems.
What liquid conditions could damage the pump?
Do not use the F65200B with abrasive liquids or other liquids that could damage its components.
