SKU: F80/160B

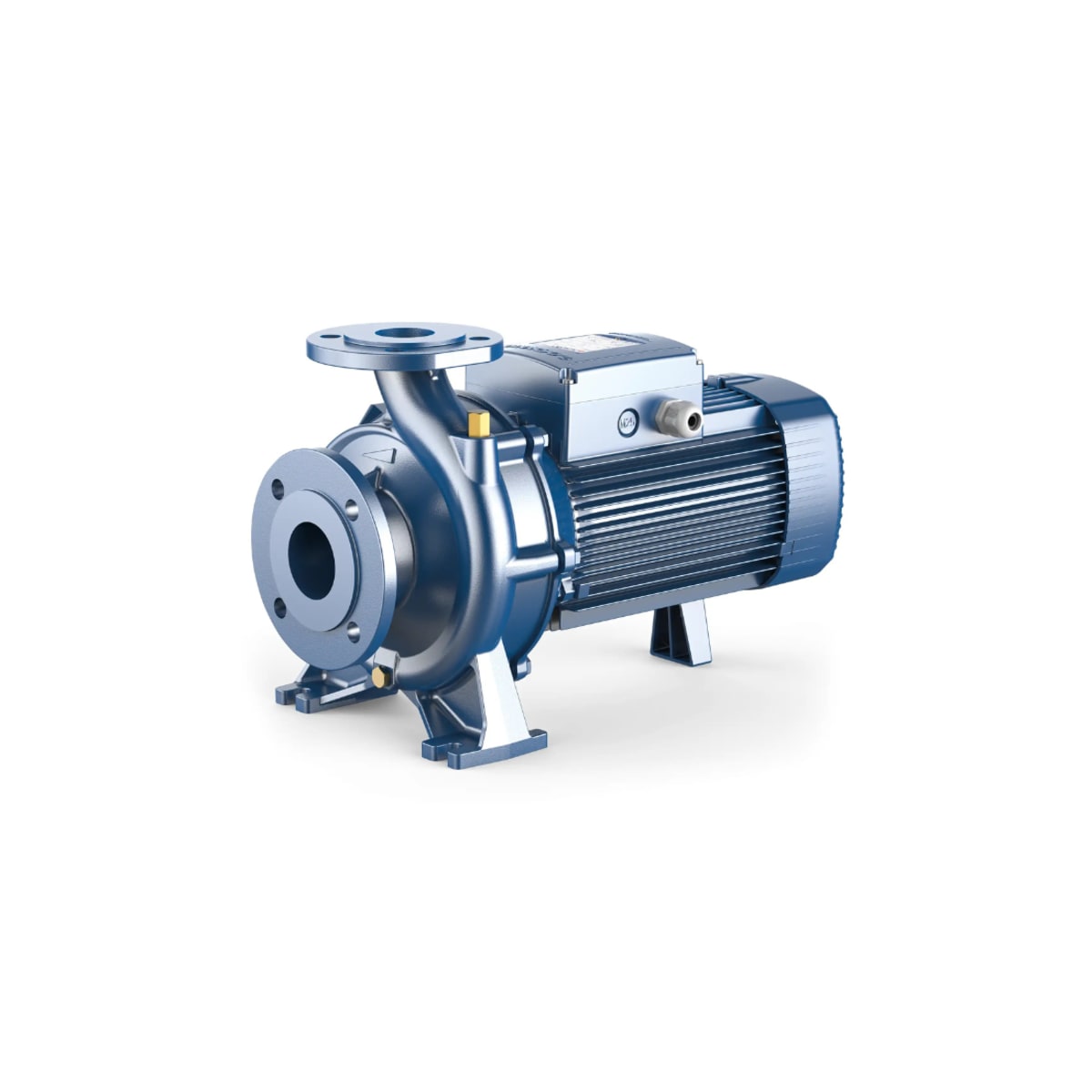

Pedrollo F80/160B Cast Iron Close-Coupled Centrifugal Pump for Heavy Liquid Transfer with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Deployed to sustain heavy liquid transfer across commercial pipelines, the Pedrollo F80/160B successfully directs high volumes of clear fluids devoid of aggressive particles. To guarantee optimal operational longevity, facility managers must locate this single stage end suction unit within environmentally controlled building zones or protected industrial enclosures.
Operating strictly across a 415 V three-phase grid, the 18.5 kW engine delivers strong performance metrics, outputting a verified Max Head 35 m and a massive Max Flow 4000 L/Min. Correct infrastructure attachment relies heavily on standardized 100 mm suction and 80 mm discharge flanged connections to guide the fluid safely upward.
The horizontal flanged configuration rigorously follows EN733 standardized spacing for centrifugal models. It draws effectively, sustaining a 7 m manometric suction lift while actively balancing internal fluid dynamics to combat unwanted hydraulic sheer and physical vibration over long cycles.
The thick cast iron primary housing is mated to a solid closed impeller for uncompromising momentum transfer. A specialized Ceramic, Graphite, and NBR dynamic seal isolates the rotational mechanism safely, while the large three-phase motor features a standard IP55 enclosure combined with class F thermal regulation.
FEATURES
- Upgraded FN-32 NU Ø 32 mm professional-grade mechanical seal interface
- Rotational kinetic energy transferred via a durable AISI 431 stainless steel shaft
- Electrical architecture actively operating at a 34.5 A rated current
- Main casing pressure tolerance explicitly verified to 10 bar (PN10)
- Certified specifically for S1 continuous running industrial applications
- Permitted ambient operating climate ranges from -10 °C up to +40 °C
- Supported thermal capacities bridge -10 °C directly to +90 °C
SPECIFICATIONS
| Max Flow | 4000 L/Min |
| Max Head | 35 m |
| Power | 18.5 kW / 415v |
| Rated Current | 34.5 Amps |
| Suitable For | Industrial Clean Water Distribution |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pressure rating applies to the pump casing?
The pump body on the F80/160B is rated for a maximum pressure of 10 bar (PN10).
What is the P2 power rating of the F80/160B?
The P2 motor output of the F80 160B is 18.5 kW.
Can this pump circulate water in air-conditioning systems?
The F80_160B is designed for clean water free from abrasive particles and liquids that could damage its components.
What liquid conditions could damage the pump?
The F80-160B is designed for clean water free from abrasive particles and liquids that could damage its components.
What is the maximum ambient temperature listed for installation?
The ambient temperature range for the F80160B is -10°C to +40°C.
