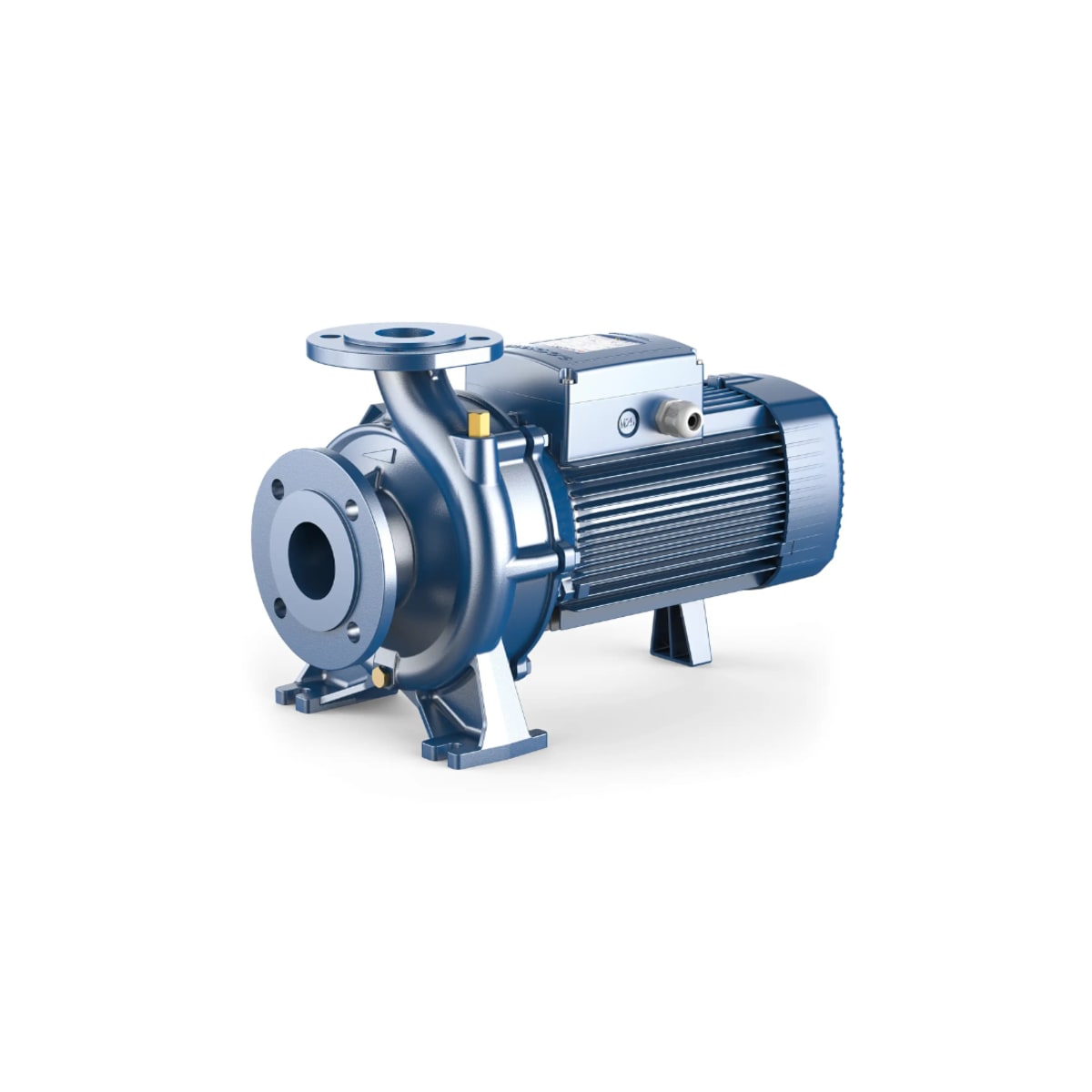

Pedrollo F80/160D Cast Iron Single Stage Centrifugal Pump for Commercial Fluid Cooling with Closed Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Optimized for massive commercial fluid cooling loops, the Pedrollo F80/160D securely manages demanding clear liquid processing requirements at extremely high volumes. Facility operators must place this single stage end suction pump within climate-controlled or weather-protected technical rooms to prevent environmental degradation and ensure non-stop reliability.
Drawing from a 415 V three-phase electrical supply, the 11 kW drive system generates substantial fluid transit, logging a Max Head 25 m alongside an incredible Max Flow 4000 L/Min. Integration relies heavily on properly aligning the large standardized 100 mm suction and 80 mm discharge flanged ports to guide the liquid correctly.
The horizontal flanged architecture conforms exactly to EN733 dimensional standards, promoting perfectly balanced kinetic transfer. It draws clear fluid safely, maintaining a 7 m manometric suction limit, which strictly minimizes disruption and physical vibration during extended commercial routing operations.
Heavy-duty cast iron housing encapsulates the dedicated closed impeller to direct momentum reliably. Dynamic sealing is achieved via a proven Ceramic, Graphite, and NBR configuration. The three-phase mechanism ensures IE3 operational efficiency, reinforced by IP55 dust protection and class F temperature limits.
FEATURES
- Standardized professional-grade mechanical seal interface for heavy pipelines
- Electrical architecture actively running at a 22.0 A rated continuous current
- Cast casing tested to safely withstand a 10 bar (PN10) operational threshold
- Motor optimized strictly for continuous S1 commercial liquid handling
- Approved ambient installation climate restricted from -10 °C up to +40 °C
- Thermal fluid tolerance mapped precisely from -10 °C to +90 °C
- Rotational kinetic energy transferred via a highly reliable stainless steel shaft
SPECIFICATIONS
| Max Flow | 4000 L/Min |
| Max Head | 25 m |
| Power | 11 kW / 415v |
| Rated Current | 22 Amps |
| Suitable For | Industrial Supply |
| Body Material | Cast Iron |
| Liquid Temperature | '-10°C to +90°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much pressure can the pump body handle?
The pump body on the F80/160D is rated for a maximum pressure of 10 bar (PN10).
Which motor output rating applies to this model?
The P2 motor output of the F80 160D is 11 kW.
What is the stated limit for manometric suction head?
The maximum manometric suction head for the F80_160D is 7 m.
Which water-system duties include irrigation and pressurisation?
Suitable uses for the F80-160D include water supply, pressurisation, irrigation, air-conditioning water circulation, power washing, firefighting, and industrial or agricultural applications.
Should the pump be installed indoors or in a protected area?
Install the F80160D in a well-ventilated indoor location or in a protected area.
