SKU: MC15/45-N*

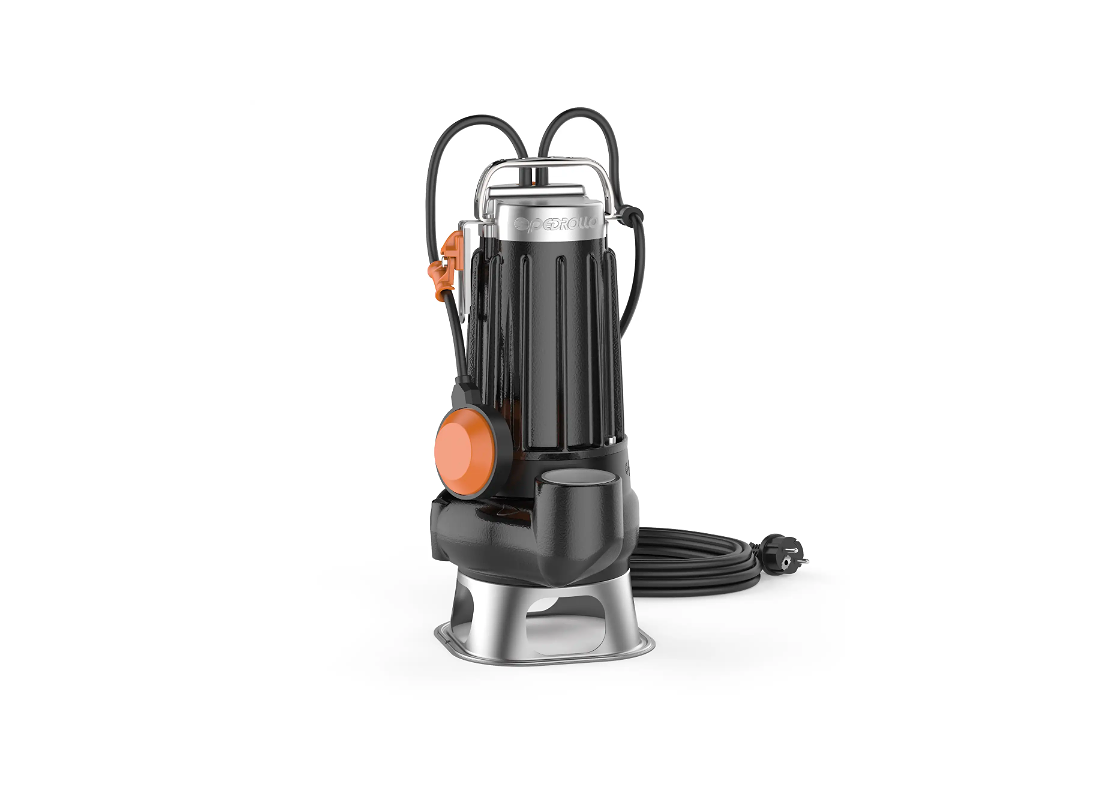

Pedrollo MC15/45-N Cast Iron IPX8 Protection Submersible Drainage Pump for Sludge with Two-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Tackling demanding fluid management challenges, the Pedrollo MC15/45-N MC Submersible Channel Pump, FBSP operates efficiently in transferring unrefined sewage and abrasive sludge mixtures. This dynamic platform is developed to handle dirty water containing suspended solids and short fibers, establishing a reliable extraction loop for wastewater processing.
Providing heavy environmental defense, the exterior architecture is manufactured from a thick cast iron body reinforced with an advanced cataphoresis treatment. By resisting chemical abrasion, this rigid casing ensures internal tolerances remain protected inside subterranean pits. Weighing 19.3 kg, the dense structural casting limits vibration during high-flow liquid routing.
Internal thermodynamic stability is governed by a precise TWO-CHANNEL impeller constructed from 304 stainless steel. This component accelerates dense effluent through the 50 mm discharge port. To secure the drive axis, engineers implemented a double mechanical seal array partitioned by a central oil chamber, enabling a total flow rate of 750 L/Min and up to 14 m of manometric head.
The three-phase infrastructure depends on a 1.1 kW motor that draws a consistent 3.2 Amps on a 415v supply. Supplied with a standard 10-metre power cable, this unit integrates into commercial networks. Capable of continuous submerged operation, the heavy-duty pump withstands continuous exposure to liquid temperatures up to 40 degrees Celsius.
Features
- Manufactured with a thick cast iron housing treated with cataphoresis for heavy extended durability
- Features a precision TWO-CHANNEL impeller constructed completely from 304 grade stainless steel
- Utilizes a dual double mechanical seal layout separated directly by an integrated internal oil chamber
- Designed with a 50 mm fluid outlet port to accommodate heavy-duty commercial system pipelines
- Operates safely when fully submerged in abrasive liquid mediums reaching up to 40 degrees Celsius
- Physical dry unit weight is verified at precisely 19.3 kg to support functional underground base anchoring
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What applications are described for this submersible wastewater pump?
The pump transfers unrefined sewage, abrasive sludge mixtures and dirty water containing short fibres, making the MC15/45-N suitable for wastewater extraction.
What materials are used to build the pump body and impeller?
A thick cast iron body with cataphoresis treatment supports corrosion resistance, while the MC15 45-N uses a two-channel stainless steel impeller.
What is the maximum solid passage?
The pump handles suspended solids up to 50 mm, allowing the MC15/45-N to move wastewater containing larger particles through suitable discharge pipework.
What power supply and motor rating are provided?
The description identifies a three-phase motor and 415 V supply for the MC15/45-N; no motor output or current is stated in the available description.
What protection is used around the drive shaft?
A double mechanical seal with an oil chamber protects the shaft from water ingress, supporting submerged wastewater operation of the MC15/45-N.
