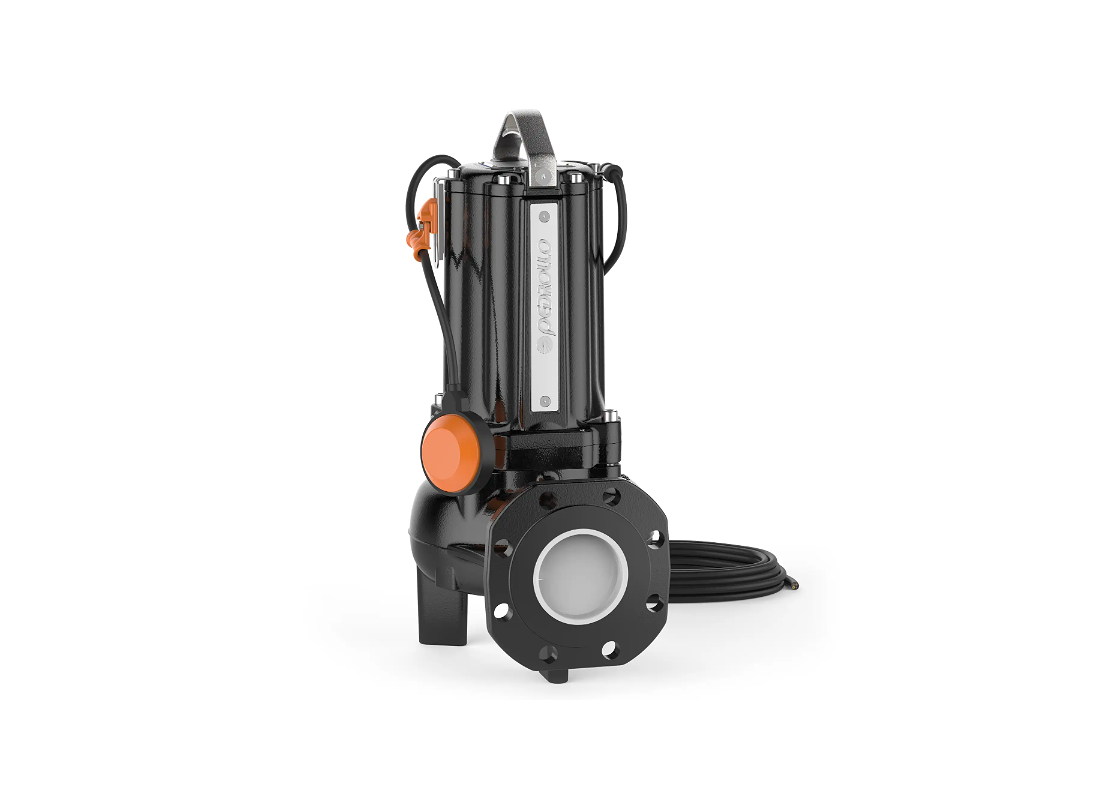

Precision fluid velocity routing defines the Pedrollo MC30/50-F MC Submersible Channel Pump, Guide Rail as a capable asset for high-demand municipal infrastructure. The thermodynamic layout safely accelerates raw sewage and suspended solids, stabilizing circulation within aggressive extraction networks.
To maintain structural integrity against underground corrosion, the main pump housing is forged from thick cast iron layered with a protective cataphoresis treatment. This robust metal shell isolates delicate mechanical tolerances from abrasive sludge mixtures. Weighing 45.5 kg, the dense chassis provides anchoring force to mitigate vibrations during startup cycles.
Managing heavy wastewater volumes, the internal hydraulic matrix relies on a rugged TWO-CHANNEL impeller made from 304 stainless steel. This mechanism accelerates liquid through a 65 mm discharge port, clearing short fibers and sludge. This unit is suitable for guide rail installations using an automatic coupling arrangement that allows vital service access without requiring personnel to enter the wet well.
Providing torque is a 2.2 kW three-phase motor pulling 6.5 Amps across a 415v grid. The drive shaft is protected by a double mechanical seal separated by an internal oil chamber. Supported by a 10-metre power cable, the assembly sustains operation in abrasive liquid environments up to 40 degrees Celsius, achieving an 1100 L/Min flow rate and a 22 m head limit.
Features
- Specifically engineered for guide rail installations employing a standard automatic coupling base structure
- Manufactured entirely from thick cast iron featuring enhanced cataphoresis protection for extended life
- Utilizes a high-clearance TWO-CHANNEL impeller carefully forged directly from 304 grade stainless steel
- Incorporates a central oil chamber to perfectly separate the internal double mechanical seal arrangement
- Designed to continuously process abrasive raw sewage at liquid temperatures up to 40 degrees Celsius
- Dry physical weight verified at exactly 45.5 kg to provide robust and reliable underground static stability
