SKU: MC30/70-F

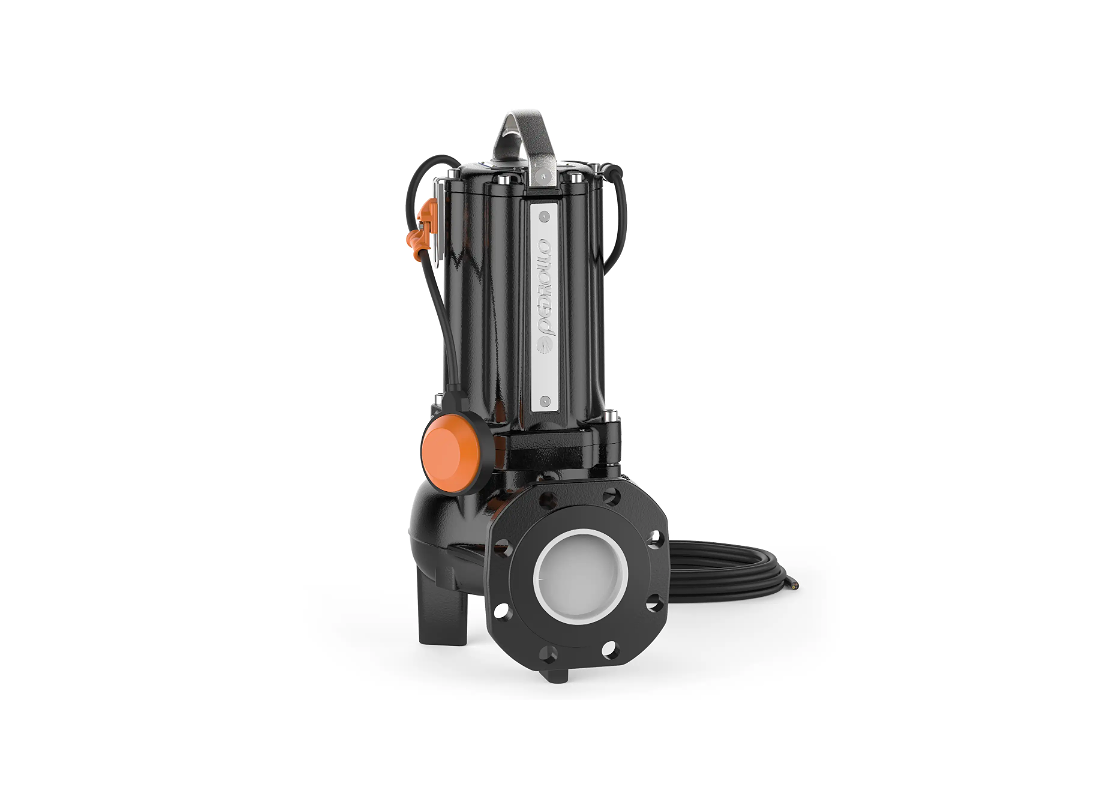

Pedrollo MC30/70-F Cast Iron Micro Cast Submersible Drainage Pump for Dirty Water with Two-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Precision fluid velocity routing defines the Pedrollo MC30/70-F MC Submersible Channel Pump, Guide Rail as a capable asset for municipal infrastructure. The layout accelerates raw sewage and suspended solids, stabilizing circulation within extraction networks. This unit is designed to assist in bypassing mechanical clogging risks in intensive processing.
Providing torque is a 2.2 kW three-phase motor pulling 5.9 Amps across a 415v grid. Supported by a 10-metre power cable, the assembly sustains operation in liquids up to 40 degrees Celsius. Achieving a 1500 L/min flow rate and a 12 m head limit, the system is suitable for guide rail installations using an automatic coupling arrangement.
To maintain integrity against underground corrosion, the main housing is forged from heavy-gauge cast iron with a protective cataphoresis treatment. This metal shell isolates mechanical tolerances from abrasive sludge. Weighing 42.2 kg, the dense chassis provides necessary anchoring force to mitigate vibrations during high-flow startup cycles.
Managing wastewater volumes, the internal matrix relies on a DOUBLE-CHANNEL impeller manufactured from AISI 304 stainless steel. This mechanism accelerates liquid through an 80 mm discharge port, clearing short fibers. The drive shaft is protected by a double mechanical seal separated by an oil chamber, supporting long-term underground deployment.
Features
- Specifically engineered for guide rail installations employing an automatic coupling base
- Manufactured from heavy-gauge cast iron featuring enhanced cataphoresis protection
- Utilizes a DOUBLE-CHANNEL impeller carefully forged from AISI 304 stainless steel
- Incorporates a central oil chamber to separate the internal double mechanical seal setup
- Designed to process abrasive raw sewage containing short fibers continuously
- Accommodates suspended solid passage up to a maximum diameter of 70 mm
- Dry physical weight verified at exactly 42.2 kg to provide robust static stability
SPECIFICATIONS
| Max Flow | 1500 L/min |
| Max Head | 12 m |
| Power | 2.2 kW / 415v |
| Rated Current | 6.5 Amps |
| Suitable For | Extreme Flow Sewage Networks |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum head stated for this wastewater pump?
The pump has a maximum head of 12 m, while the MC30 70-F is intended for municipal sewage and wastewater extraction applications.
What installation arrangement helps simplify maintenance?
The guide-rail installation uses an automatic coupling arrangement, allowing the MC30/70-F to be accessed for servicing without entering the wet well.
Which liquids and solids is the pump designed to handle?
It is designed for raw sewage, abrasive sludge and suspended solids, with passage up to 70 mm through the MC30_70-F hydraulic system.
What materials are used in the pump housing and impeller?
A cataphoresis-treated cast iron housing helps resist corrosion from abrasive sludge, protecting the MC30_70-F during demanding municipal wastewater extraction service.
What are the motor rating and electrical requirements?
The 2.2 kW three-phase motor draws 5.9 A at 415 V, and the MC30 70-F description also identifies a 10-metre power cable.
