SKU: MC40/50-F

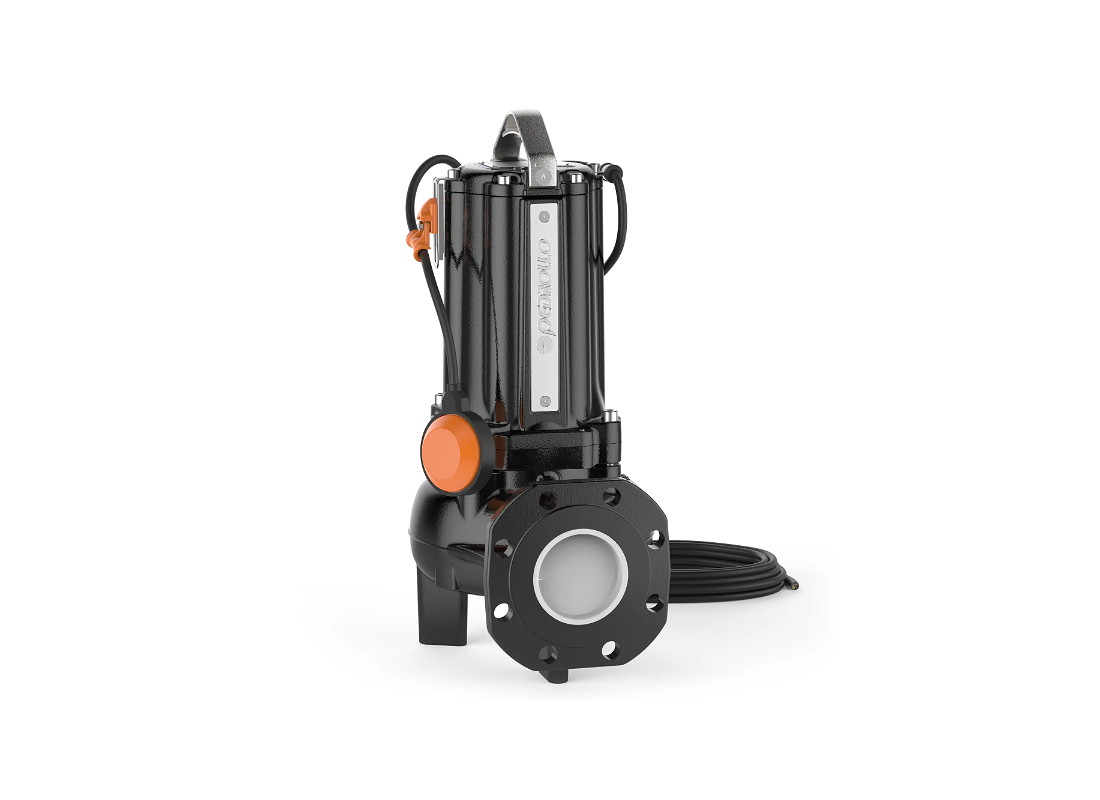

Pedrollo MC40/50-F Cast Iron 10 Metre Cable Submersible Drainage Pump for Wastewater with Two-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Engineered to address high operational extraction demands, the Pedrollo MC40/50-F MC Submersible Channel Pump, Guide Rail scales up commercial drainage efficiency. This three-phase powerhouse utilizes a 3 kW motor pulling 7 Amps over a 415v supply. By delivering strong torque, the system safely processes abrasive unrefined sewage and short fibers without succumbing to disruptive mechanical stalling.
Built for integration into subterranean municipal networks, this mechanism is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well. The fluid architecture pushes sludge-mixed wastewater and suspended solids outward through a heavy-duty 65 mm discharge port, maintaining a clear hydraulic pathway during usage.
Managing this internal pressure is a TWO-CHANNEL impeller constructed from premium 304 stainless steel. Protected by a double mechanical seal setup completely isolated by an oil chamber, the rotating shaft operates free from moisture intrusion. These components accelerate aggressive liquids to produce a maximum flow of 1100 L/Min and a vertical lift pressure of 24 m.
To ensure this mechanism survives caustic pit environments, the primary enclosure is cast from ultra-thick iron and reinforced with a specialized cataphoresis coating. This architectural design creates a barrier against chemical degradation. Weighing 49.8 kg, the dense structural casting anchors the unit securely, accommodating liquid temperatures up to 40 degrees Celsius with its 10-metre cable.
Features
- Specifically tailored for complex guide rail configurations employing a dedicated automatic coupling base
- Manufactured from ultra-thick cast iron actively protected by a highly specialized cataphoresis treatment
- Features an advanced TWO-CHANNEL impeller specifically crafted completely from 304 grade stainless steel
- Incorporates a 65 mm fluid discharge port configured to streamline heavy commercial volume transfer
- Utilizes an internal central oil bath to completely partition the effective double mechanical seal array
- Records a high dry static weight of 49.8 kg to help limit lateral operational vibration during daily activation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What outlet size is used for wastewater discharge?
A 65 mm discharge port connects the pump to suitable pipework, helping the MC40/50-F transfer wastewater and suspended material from drainage systems.
What maximum flow rate can the pump deliver?
The maximum flow rate is 1100 L/min, giving the MC40 50-F capacity for high-volume commercial drainage; actual delivery depends on operating conditions.
What motor supply and output does the pump use?
A 3 kW three-phase motor draws 7 A from a 415 V supply, providing the MC40/50-F with power for demanding wastewater extraction.
Which construction features help resist corrosion?
The cast iron housing has a cataphoresis coating, while the 304 stainless steel two-channel impeller supports durability in the MC40_50-F.
What type of wastewater and solids can it handle?
The pump is described for abrasive sewage, sludge-mixed wastewater and short fibres, with the MC40/50-F operating in liquids up to 40 °C.
