SKU: MC40/70-F

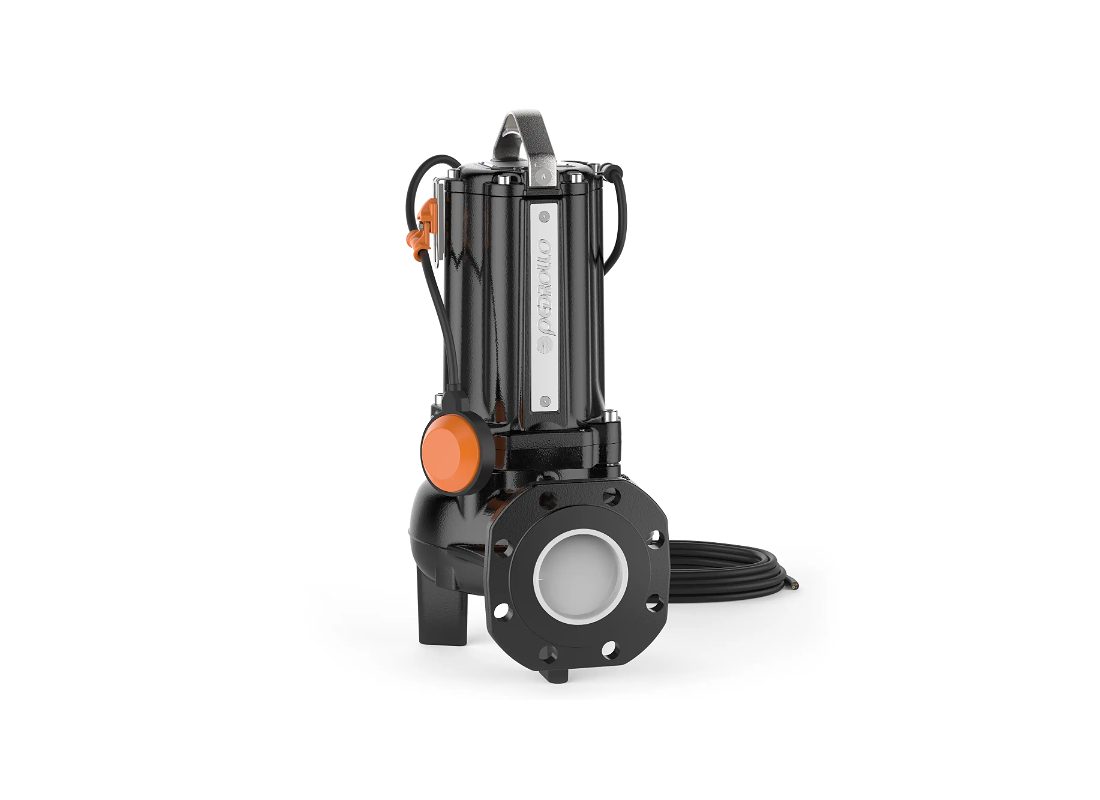

Pedrollo MC40/70-F Cast Iron Three Phase Submersible Drainage Pump for Putrid Sludge with Two-Channel Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Engineered to address high operational extraction demands, the Pedrollo MC40/70-F MC Submersible Channel Pump, Guide Rail scales up drainage efficiency. This three-phase powerhouse utilizes a 3.0 kW motor pulling 7.8 Amps over a 415v supply. By delivering strong torque, the system processes abrasive unrefined sewage without mechanical stalling.
Built for integration into subterranean networks, this mechanism is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well. The fluid architecture pushes sludge-mixed wastewater outward through an 80 mm discharge port, maintaining a clear hydraulic pathway during usage.
Managing internal pressure is a DOUBLE-CHANNEL impeller constructed from AISI 304 stainless steel. Protected by a double mechanical seal setup isolated by an oil chamber, the shaft operates free from moisture intrusion. These components accelerate aggressive liquids to produce a maximum flow of 1600 L/min and a vertical lift pressure of 15 m.
To ensure this mechanism survives caustic environments, the primary enclosure is cast from heavy-gauge iron and reinforced with a cataphoresis coating. This architectural design creates a barrier against chemical degradation. Weighing 46.3 kg, the structural casting anchors the unit securely, accommodating liquids up to 40 degrees Celsius.
Features
- Tailored for complex guide rail configurations employing a dedicated automatic coupling base
- Manufactured from heavy-gauge cast iron actively protected by a cataphoresis treatment
- Features an advanced DOUBLE-CHANNEL impeller crafted from AISI 304 stainless steel
- Incorporates an 80 mm fluid discharge port configured for heavy commercial transfer
- Utilizes an internal central oil bath to partition the double mechanical seal array
- Engineered to support the continuous passage of suspended solids up to 70 mm
- Records a dry static weight of 46.3 kg to help limit lateral operational vibration
SPECIFICATIONS
| Max Flow | 1600 L/min |
| Max Head | 15 m |
| Power | 3 kW / 415v |
| Rated Current | 7.5 Amps |
| Suitable For | Massive Volume Wastewater Transfer |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What materials protect the pump against corrosion in wastewater environments?
A cast iron body with cataphoresis coating resists corrosion, while the AISI 304 stainless steel double-channel impeller equips the MC40/70-F for wastewater duties.
What is the maximum flow rate described for this pump?
The pump delivers up to 1600 L/min, giving the MC40 70-F high extraction capacity for demanding sewage and sludge-mixed wastewater applications.
How is the pump installed for easier servicing in a wet well?
An automatic coupling and guide-rail arrangement allows servicing from above without personnel entering the wet well when installing the MC40/70-F.
What size of suspended solids can pass through the hydraulic system?
The hydraulic design handles suspended solids up to 70 mm, helping the MC40_70-F move raw sewage and wastewater containing larger debris.
What motor and electrical supply are used?
A 3.0 kW three-phase motor draws 7.8 A from a 415 V supply, powering the MC40/70-F for demanding extraction work.
