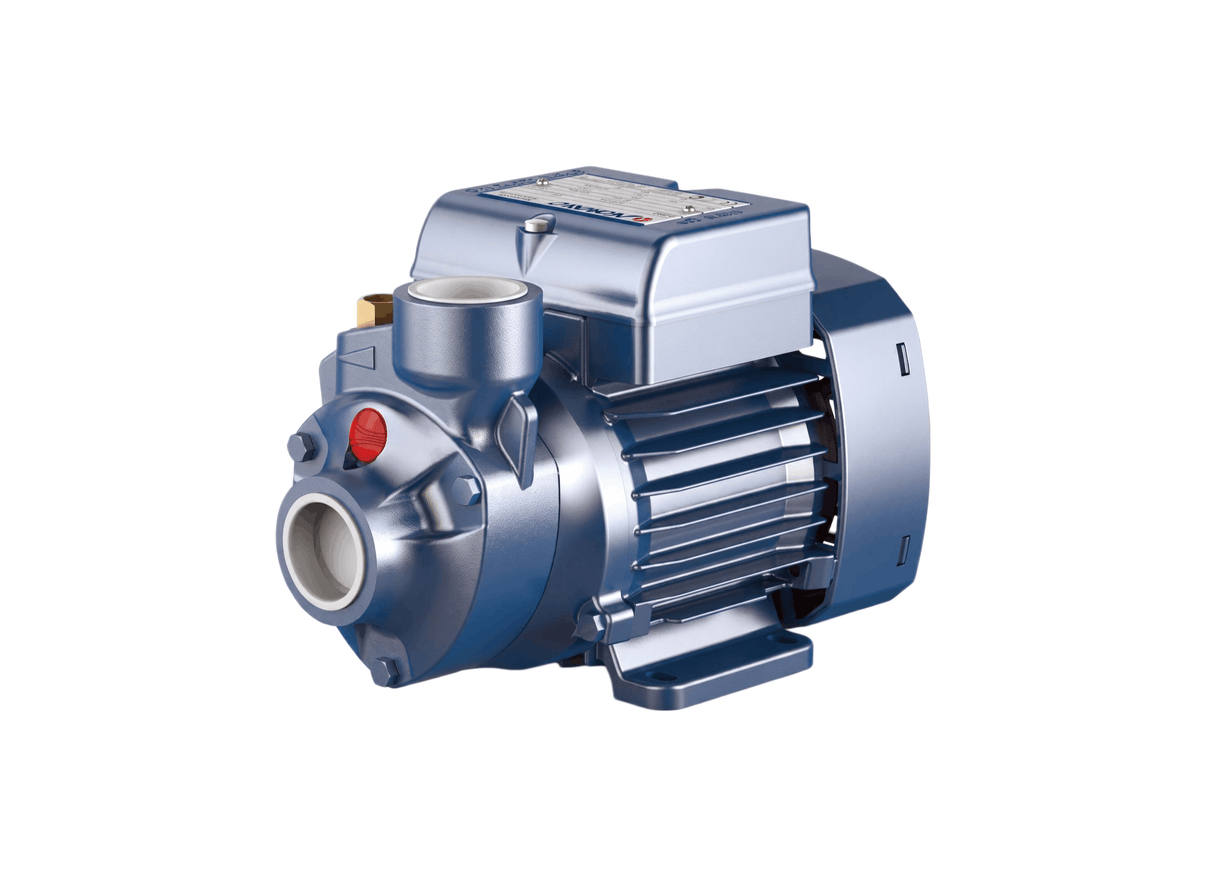

Pedrollo PKm80 Cast Iron Close Coupled Peripheral Pump for Orchard Irrigation with Brass Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Domestic water distribution and garden or orchard irrigation can be served by the Pedrollo PKM80, using a close coupled peripheral arrangement for compact clean-water pumping. Its intended liquid duty covers clean water without abrasive particles and liquids that are not chemically aggressive towards the materials used in the pump.
The PKM80 provides a maximum head of 66 m alongside a maximum flow of 50 L/Min. Its maximum working pressure is 8 bar, establishing the specified pressure capability while the hydraulic performance combines moderate flow with the higher head characteristics of a peripheral pump.
Pressure generation comes from a peripheral impeller fitted with radial vanes. This hydraulic configuration is appropriate to clean-water duties where water needs to be distributed or supplied through domestic systems, gardens or orchards, without introducing applications or liquid-handling capabilities beyond the specified service.
A cast iron pump body houses the brass impeller within the close coupled construction. The pump accepts liquid temperatures up to 40°C, while the compact arrangement combines the hydraulic and drive components into a straightforward assembly for installation within its specified operating environment.
FEATURES
- Peripheral impeller uses radial vanes to develop the pump's characteristic pressure.
- Close coupled construction combines the pump and motor arrangement into a compact assembly.
- Cast iron pump body provides the principal structural housing for the hydraulic section.
- Brass impeller forms the rotating hydraulic element within the pump body.
- Single mechanical seal provides shaft sealing between the rotating assembly and pump body.
- Stainless steel motor shaft provides the specified drive component for the rotating assembly.
- Aluminium motor bracket is fitted with a brass cover and front scraping anti-locking function.
- ISO 228/1 threaded ports provide the standard threaded connection arrangement specified for the pump body.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What liquid temperature range is suitable for this pump?
Liquid temperatures from -10 °C to +60 °C are permitted, so the PKM80 should operate within this range when pumping suitable clean water.
What maximum head can the pump reach?
The maximum head is 70 metres; the PKM_80 provides higher-pressure clean-water delivery, while the actual head depends on the operating flow rate.
Which materials form the main hydraulic components?
The pump body is cast iron and the impeller is brass with peripheral radial vanes, forming the hydraulic assembly of the PKM/80.
What pressure limit should be considered during installation?
The maximum working pressure is 7 bar, and manometric suction lift can reach 8 metres; keep both limits in mind when installing the PKM 80.
Which applications are suitable for this peripheral pump?
Domestic water distribution and garden or orchard irrigation are suitable uses for the PKM80, provided the liquid is clean and non-abrasive.
