SKU: PKM90

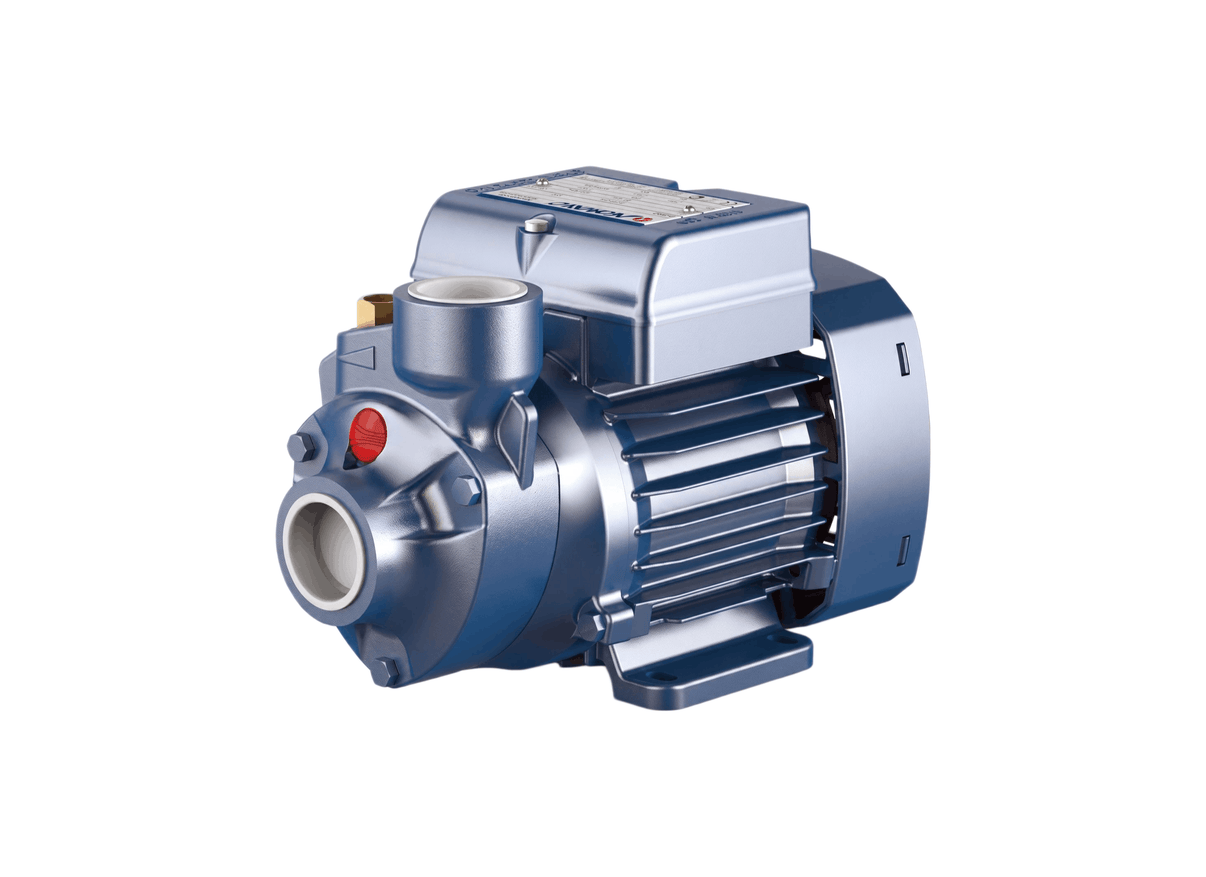

Pedrollo PKm90 Cast Iron Close Coupled Peripheral Pump for Domestic Water Distribution with Brass Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
For clean water distribution, garden and orchard irrigation, the Pedrollo PKM90 provides a compact close coupled peripheral pumping arrangement. It is intended for clean liquids without abrasive particles and for liquids that are not chemically aggressive towards the pump materials, making its operating role clearly suited to clean-water service.
The hydraulic characteristics give the PKM90 a maximum head of 82 m and maximum flow of 40 L/Min. With a maximum working pressure of 8 bar, the pump is configured around higher head performance rather than high-volume flow, providing a defined hydraulic duty within its specified operating limits.
A peripheral impeller with radial vanes forms the hydraulic element responsible for developing the pump's pressure. This configuration supports water distribution and smaller-scale irrigation duties where a combination of elevated head and moderate flow is required rather than large-volume transfer.
The pump uses a cast iron body and brass impeller in a close coupled construction. Liquid temperatures up to 40°C are permitted, while the integrated arrangement keeps the pump assembly compact and mechanically straightforward for suitable domestic water service installations.
FEATURES
- Radial peripheral vane impeller configuration provides the hydraulic pumping action.
- Close coupled pump construction keeps the complete pumping arrangement compact.
- Cast iron hydraulic body forms the main structural enclosure around the pump section.
- Brass impeller provides the specified material configuration for the rotating hydraulic element.
- Single mechanical seal construction provides separation around the rotating shaft.
- Stainless steel motor shaft provides the mechanical drive connection through the pump.
- Aluminium motor bracket incorporates a brass cover and patented front scraping anti-locking function.
- ISO 228/1 threaded ports provide the specified threaded connection arrangement on the pump body.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What types of liquid can this pump handle?
Use clean water without abrasive particles or liquids that are not chemically aggressive towards the pump materials when operating the PKM90.
What is the maximum flow rate available?
The maximum flow rate is 40 L/min; the PKM_90 is designed for clean-water duties where moderate flow and higher head are useful.
How much working pressure can the pump withstand?
The maximum working pressure is 10 bar, providing the pressure limit for the PKM/90; installation conditions must remain within this rated value.
Where is this pump intended to be installed?
The pump should be installed indoors or in a location sheltered from bad weather, protecting the PKM 90 during its intended domestic water service.
What is the maximum head this pump can develop?
The maximum head reaches 90 metres, making the PKM90 suitable for higher-head water distribution; delivered head decreases as the required flow increases.
