SKU: TOP-2-LA-MANUAL

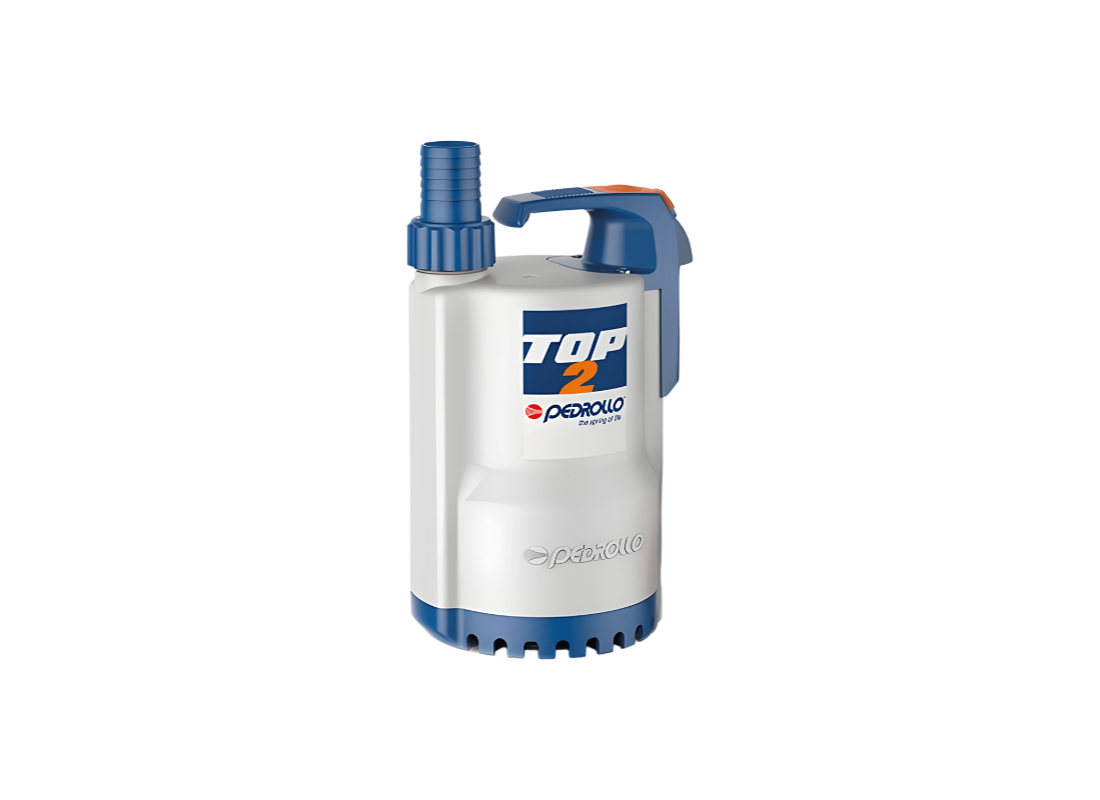

Pedrollo TOP-2-LA-Manual Technopolymer Submersible Drainage Pump for Aggressive Liquids with Noryl Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Designed for aggressive liquids, the Pedrollo TOP-2-LA-Manual provides a reliable solution for manual drainage applications where enhanced corrosion resistance is required. This technopolymer submersible pump is intended for domestic and civil use, offering dependable performance when handling compatible aggressive liquids. The manual configuration provides flexible operation across a range of drainage tasks.
Hydraulic delivery is driven by a 0.37 kW single-phase 240v motor, achieving a maximum flow rate of up to 220 L/Min. Drawing a rated current of 2 Amps, the system delivers up to 8 m head during continuous duty operation. The pumped liquid provides continuous motor cooling while operating within a maximum liquid temperature of 40°C.
Liquids containing suspended solids up to 10 mm are processed using a Noryl impeller designed for reliable hydraulic performance. The LA version incorporates an AISI 316 stainless steel motor shaft to improve corrosion resistance when handling compatible aggressive liquids. The hydraulic design supports dependable drainage performance across domestic and civil applications.
Construction features a high-strength technopolymer pump body and suction filter for excellent corrosion and impact resistance. The motor shaft is manufactured from AISI 316 stainless steel, while the AISI 304 stainless steel motor casing provides additional durability. Protection is provided by a double mechanical seal with an interposed oil chamber, together with winding-integrated thermal overload protection for reliable motor safety.
FEATURES
- LA version with AISI 316 stainless steel motor shaft for improved corrosion resistance.
- Technopolymer pump body and suction filter providing excellent corrosion and impact resistance.
- Noryl impeller designed to process clean water containing suspended solids up to 10 mm.
- Efficient 0.37 kW single-phase motor drawing 2 Amps at 240v for continuous service duty.
- Double mechanical seal arrangement with an oil chamber protecting the motor shaft against water ingress.
- AISI 304 stainless steel motor casing ensuring structural durability in submerged environments.
- Manual control configuration with a resin-sealed handle for flexible drainage applications.
- Thermal overload protection built into the motor winding to safeguard against overheating.
SPECIFICATIONS
| Max Flow | 220 L/Min |
| Max Head | 8 m |
| Power | 0.37 kW / 240v |
| Rated Current | 2 Amps |
| Suitable For | Aggressive Liquids |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of liquid is this pump intended to handle?
The submersible pump is intended for domestic and civil drainage involving compatible aggressive liquids, with the TOP-2-LA-MANUAL offering corrosion-resistant construction.
Which material improves resistance to compatible aggressive liquids?
The LA version uses an AISI 316 stainless steel motor shaft, improving corrosion resistance when the TOP 2 LA MANUAL handles compatible aggressive liquids.
What motor rating and delivery performance are described?
A 0.37 kW single-phase motor at 240 V draws 2 A and delivers up to 220 L/min flow and 8 m head with the TOP-2-LA-MANUAL.
What suspended-solids size can the pump process?
The Noryl impeller can process liquids containing suspended solids up to 10 mm, supporting drainage tasks suited to the TOP 2 LA MANUAL.
What features protect the motor during operation?
A double mechanical seal and oil chamber help prevent water ingress at the shaft, while winding-integrated thermal overload protection safeguards the TOP-2-LA-MANUAL motor.
