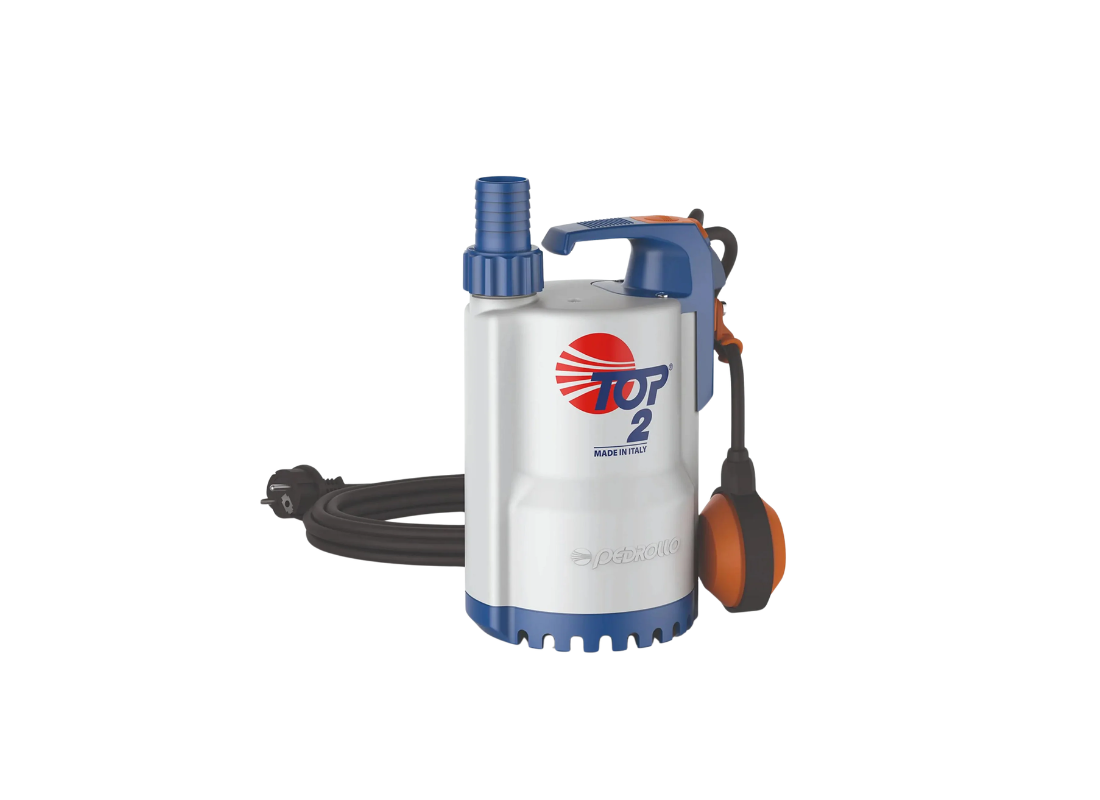

Pedrollo TOP 2 Technopolymer Submersible Drainage Pump with Float Switch

Warranty & Returns

All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.

• Products must be installed correctly and in accordance with the manufacturer’s instructions.
• Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
• Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
• The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
• Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
• Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
• Customers are responsible for return freight costs for change-of-mind returns.
• Restocking fees may apply to special-order, bulky or non-stocked products.
• Used, installed or specially ordered products may not be eligible for change-of-mind returns.
• If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.

Your rights under Australian Consumer Law are not affected.

What type of liquid is this pump intended to handle?

The submersible pump is intended for domestic and civil drainage involving compatible aggressive liquids, with the TOP-2-LA-MANUAL offering corrosion-resistant construction.

Which material improves resistance to compatible aggressive liquids?

The LA version uses an AISI 316 stainless steel motor shaft, improving corrosion resistance when the TOP 2 LA MANUAL handles compatible aggressive liquids.

What motor rating and delivery performance are described?

A 0.37 kW single-phase motor at 240 V draws 2 A and delivers up to 220 L/min flow and 8 m head with the TOP-2-LA-MANUAL.

What suspended-solids size can the pump process?

The Noryl impeller can process liquids containing suspended solids up to 10 mm, supporting drainage tasks suited to the TOP 2 LA MANUAL.

What features protect the motor during operation?

A double mechanical seal and oil chamber help prevent water ingress at the shaft, while winding-integrated thermal overload protection safeguards the TOP-2-LA-MANUAL motor.
