SKU: TOP-MET3

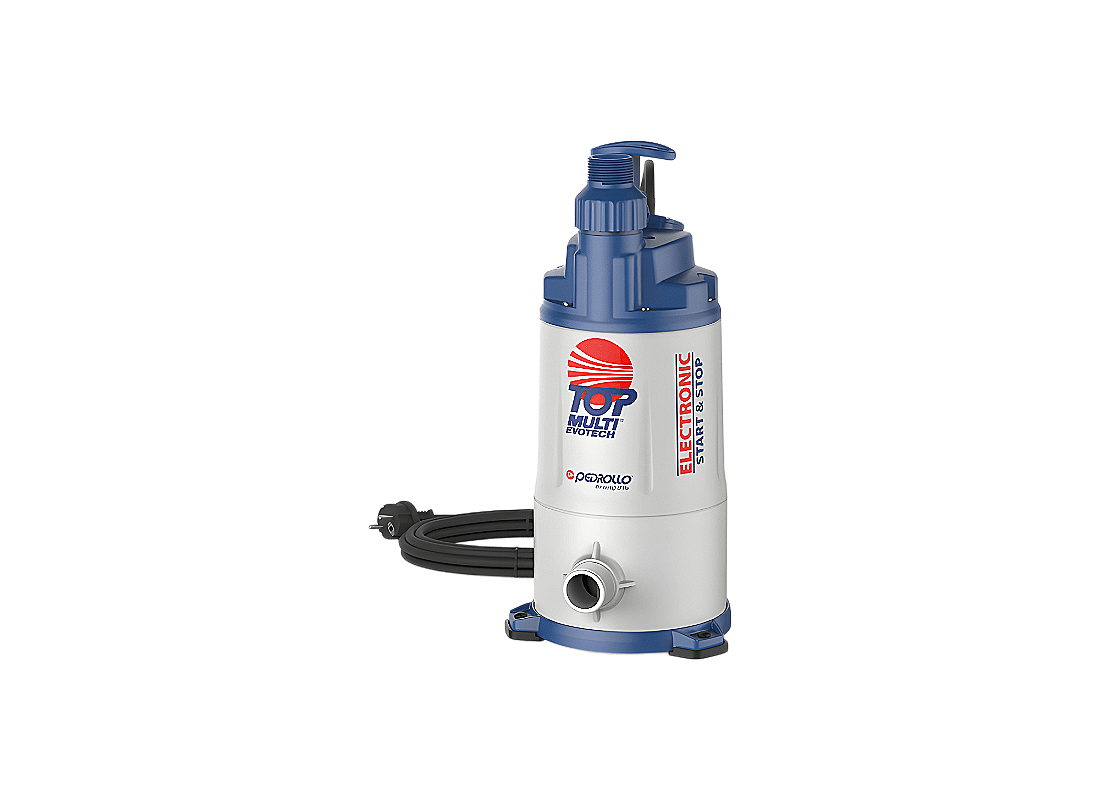

Pedrollo TOP-MET3 Technopolymer Submersible Multi-Stage Pump for Irrigation Supply with Noryl Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Irrigation supply from wells, tanks, and reservoirs is provided by the Pedrollo TOP-MET3 through its multistage centrifugal design. Suitable for both external and submerged installation, this technopolymer pump is intended for clean water applications including domestic watering, irrigation, and rainwater reuse systems. The integrated electronic controller provides automatic operation without the need for external pressure equipment.
Performance is delivered by a 0.55 kW single-phase motor operating from a 240v supply and drawing 3.6 Amps. The pump delivers up to 120 L/Min flow and up to 30 m head. The electronic controller automatically starts the pump when pressure falls below 1.5 bar and stops it when water demand ceases, while also providing dry-run protection and anti-blockage operation.
A multistage hydraulic assembly with Noryl impellers generates high delivery pressure for domestic water supply applications. The pump can be installed with a maximum vertical distance of 10 m between the pump and the point of use, while the suction body allows water to be drawn down to approximately 35 mm from the base of the tank or reservoir.
Construction features a technopolymer pump body and base together with an AISI 304 stainless steel motor sleeve for corrosion resistance. The drive assembly is protected by a double mechanical seal with an interposed oil chamber to protect the motor shaft against water ingress. Motor safety is provided by IPX8 protection, Class F insulation, and integrated thermal overload protection.
FEATURES
- Multistage centrifugal pump suitable for external or submerged installation.
- Integrated electronic controller with automatic start at 1.5 bar.
- Multistage Noryl impellers providing high delivery pressure for domestic water systems.
- Electronic dry-run protection and automatic anti-blockage function.
- Technopolymer pump body and base offering excellent corrosion resistance.
- Reliable 0.55 kW single-phase motor drawing 3.6 Amps at 240v.
- Double mechanical seal with an oil chamber protecting the motor shaft against water ingress.
- AISI 304 stainless steel motor sleeve for long service life.
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 30 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.6 Amps |
| Suitable For | Irrigation Supply |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What water sources and applications suit this pump?
Designed for clean water, the pump can draw from wells, tanks and reservoirs for domestic watering, irrigation and rainwater reuse using the TOP-MET3.
How does the electronic controller manage operation?
The integrated controller starts and stops the TOP MET3 automatically, removing the need for separate pressure equipment in suitable domestic water systems.
What motor rating and performance are provided?
A 0.55 kW single-phase motor runs on 240 V and delivers up to 120 L/min flow and 30 m head with the TOP/MET3.
What materials are used in the pump construction?
The pump body and base use technopolymer, while an AISI 304 stainless steel motor sleeve supports corrosion resistance in the TOP MET3 assembly.
What protections help safeguard the motor and hydraulic assembly?
A double mechanical seal and oil chamber help protect the shaft against water ingress, while the TOP-MET3 also has IPX8 protection and thermal overload protection.
