SKU: TOP-MT3

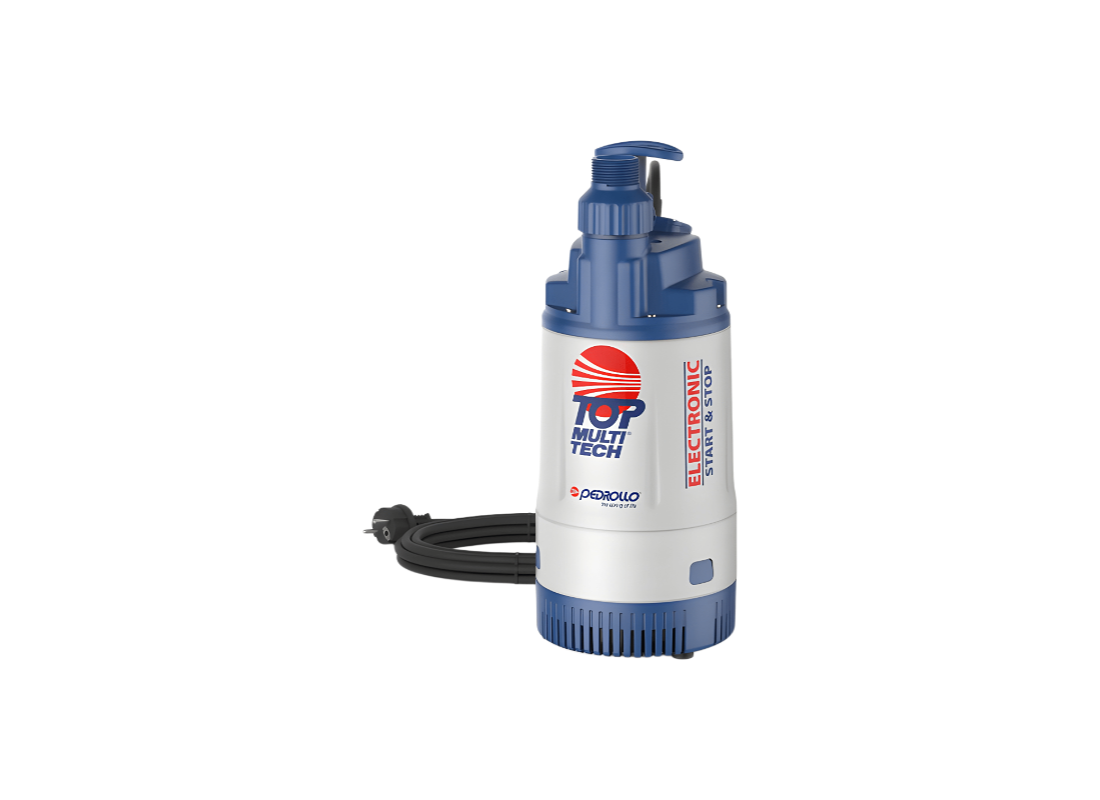

Pedrollo TOP-MT3 Technopolymer Submersible Multi-Stage Pump for Rainwater Harvesting with Noryl Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Rainwater harvesting and domestic pressure boosting systems utilise the Pedrollo TOP-MT3 through its multistage centrifugal design. This technopolymer unit incorporates an internal electronic start/stop device, allowing automatic operation for rainwater tanks and storage reservoirs. It is intended for clean water applications requiring reliable pressure for domestic watering and irrigation.
Performance is provided by a 0.55 kW single-phase motor operating at 240v, delivering up to 120 L/Min flow and up to 30 m head. Drawing a rated current of 3.6 Amps, the motor is designed for continuous duty. The integrated electronic device provides dry-run protection and performs an anti-blockage self-test every 48 hours to maintain reliable operation.
Pressure is generated by a multistage arrangement of Noryl impellers working with technopolymer diffuser vanes. This hydraulic design provides higher delivery pressure than conventional drainage pumps while maintaining reliable flow for domestic water supply and irrigation applications. The 32 mm threaded delivery connection allows integration with standard domestic pipework.
Construction combines a technopolymer pump body and base with an AISI 304 stainless steel motor sleeve for long service life. A double mechanical seal with an interposed oil chamber protects the motor shaft against water ingress. Motor protection is further supported by Class F insulation and winding-integrated thermal overload protection.
FEATURES
- Multistage centrifugal hydraulic design with Noryl impellers for high-head performance.
- Internal electronic start/stop device for fully automatic operation.
- Integrated dry-run protection for reliable pump operation.
- Anti-blockage self-test automatically operates the pump every 48 hours.
- Technopolymer pump body and suction filter providing excellent corrosion resistance.
- Efficient 0.55 kW motor drawing 3.6 Amps at 240v for domestic pressure applications.
- Double mechanical seal system with an oil chamber protecting the motor shaft.
- AISI 304 stainless steel motor sleeve for structural durability.
SPECIFICATIONS
| Max Flow | 120 L/Min |
| Max Head | 30 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.6 Amps |
| Suitable For | Rainwater Harvesting |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What applications is this automatic pump designed for?
Clean-water duties such as rainwater harvesting, domestic pressure boosting, watering and irrigation suit the TOP-MT3 when supplied from tanks or reservoirs.
What causes the pump to start and stop automatically?
The internal electronic device manages automatic start and stop operation, while dry-run protection and an anti-blockage self-test support the TOP MT3.
What pipe connection is provided for delivery?
A 32 mm threaded delivery connection allows integration with compatible domestic pipework, making the TOP/MT3 suitable for water supply and irrigation installations.
Which motor and performance ratings are listed?
A 0.55 kW motor operates at 240 V and draws 3.6 A, delivering up to 120 L/min and 30 m head with the TOP MT3.
How is the motor protected against water ingress and overheating?
A double mechanical seal and oil chamber protect the shaft from water ingress, while Class F insulation and thermal overload protection safeguard the TOP-MT3.
