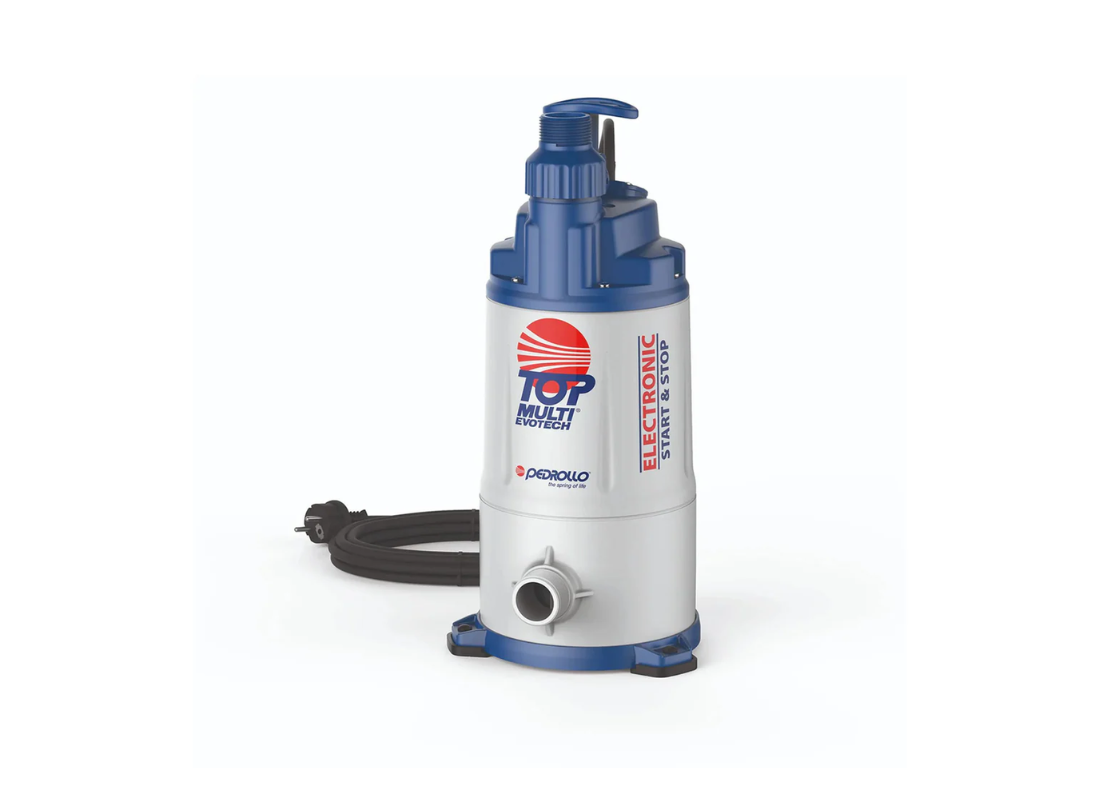

Pedrollo TOP MULTI EVOTECH 2 Submersible Multistage Pump with Built-In Controller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
The Pedrollo TOP MULTI EVOTECH 2 is an automatic multistage submersible pump designed for clean water pressure boosting from tanks, reservoirs and rainwater systems.
Featuring an integrated electronic controller, the pump automatically starts when pressure drops below 1.5 bar (tap opened) and stops when flow falls below 3 L/Min. The system includes dry-run protection and an anti-blockage function that runs the pump briefly every 48 hours after inactivity.
Built with Noryl™ multistage hydraulics, technopolymer body components and stainless steel motor sleeve, the EVOTECH 2 delivers reliable high-head performance for domestic and civil installations.
FEATURES
- Automatic multistage submersible pump
- Built-in electronic pressure controller
- Restart pressure: 1.5 bar
- Maximum flow: 80 L/Min
- Maximum head: 40 m
- Dry-run protection
- Anti-blockage auto-run every 48 hours
- Double mechanical seal with oil chamber
- Stainless steel AISI 304 motor sleeve
- Stainless steel AISI 431 shaft
- Maximum immersion depth: 5 m
- Maximum height between pump and outlet: 10 m
- Liquid temperature up to +40°C
- 10 m power cable
- 1¼" threaded delivery connection
- Ø 35 mm hose connector included
SPECIFICATIONS
| Max Flow | 80 L/Min |
| Max Head | 40 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.4 Amps |
| Suitable For | Clean Water / Rainwater Tanks / Domestic Pressure Boosting |
| Body Material | Technopolymer |
| Liquid Temperature | Maximum +40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What water systems is this automatic pump designed to serve?
The multistage submersible pump boosts clean-water pressure from tanks, reservoirs and rainwater systems, making the TOP-MET2 suitable for domestic supply applications.
When does the electronic controller stop the pump?
The electronic controller starts below 1.5 bar and stops when flow falls below 3 L/min, allowing the TOP MET2 to respond automatically to demand.
What protections help prevent dry running and blockage?
Dry-run protection and an anti-blockage cycle that briefly runs every 48 hours after inactivity help protect the TOP/MET2 during automatic service.
What motor and performance ratings are described?
A 0.55 kW single-phase motor runs at 240 V and delivers up to 120 L/min flow and 30 m head with the TOP MET2.
Which materials are used in the hydraulic and motor construction?
Noryl multistage hydraulic components and a technopolymer body provide corrosion-resistant construction, while stainless steel motor components support the TOP-MET2 assembly.
