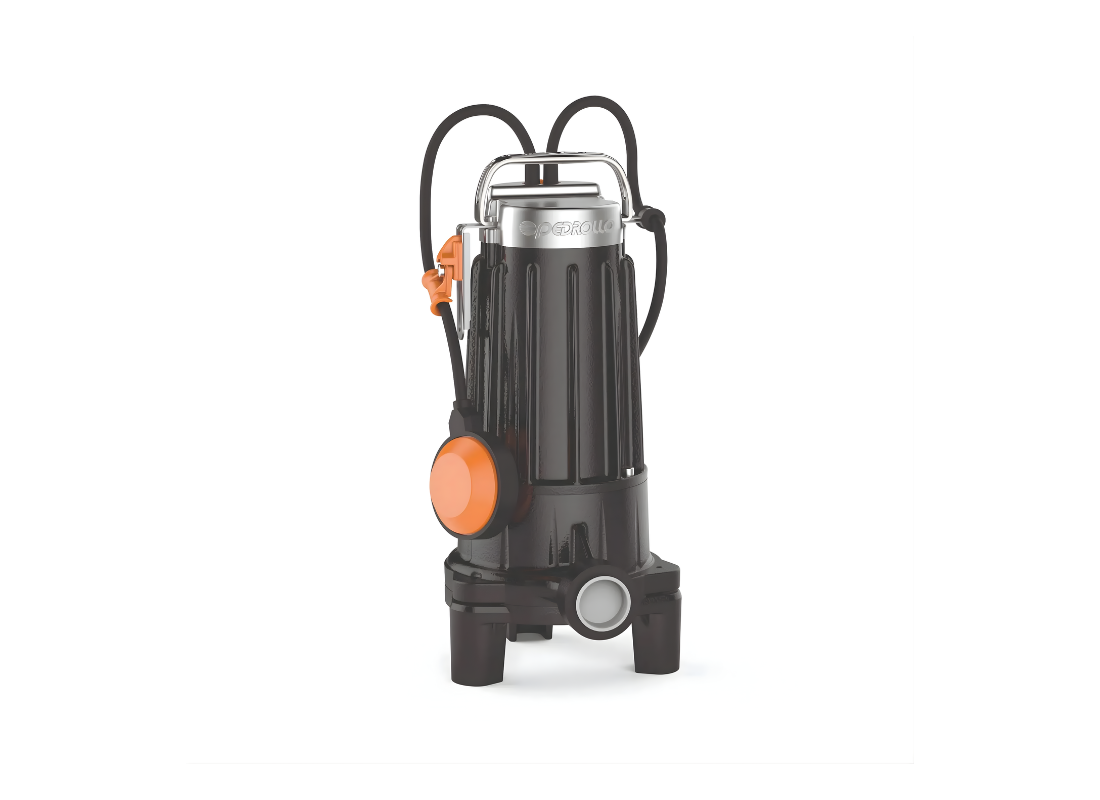

Pedrollo TR090 Cast Iron Thick Housing Submersible Grinder Pump for Dirty Water with Open Impeller

Highlighting advanced structural choices and casting designs, the Pedrollo TR090 grinder pump for dirty water that contains solids features a heavy-duty frame suited for high-stress applications. Constructed entirely from thick cast iron treated with cataphoresis, this robust unit offers high abrasion resistance against corrosive subterranean elements. By integrating these robust metals into the foundational blueprint, the system manages raw sewage extraction with remarkable physical resilience. It processes civil waste loads smoothly, helping manage heavy solids from compromising structural integrity.

Detailing the internal thermodynamic behavior and hydraulic stability, the specialized open technopolymer impeller is precisely balanced to support optimal fluid displacement. Configured to deliver a maximum flow rate of 170 L/Min and achieve a maximum head of 15 meters, the fluid pathways establish a highly stable circulation loop. Pressurized transfer of dense materials is handled efficiently through the 32 mm outlet port. To assist with internal protection during high-volume fluid optimization, a double mechanical seal inside an oil chamber safeguards the motor shaft from moisture.

Addressing the operational load challenges common in modern civil sanitation networks, this three-phase asset processes heavy domestic sewage through an intricate shearing mechanism. The primary processing component is a hardened stainless steel blade expertly designed to cut through solids before they reach the volute. This cutting action reduces large waste particles, preventing blockages across small-diameter discharge pipelines. The system supports guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well.

Focused on continuous safety protection and low operational disruption, the pump relies on a highly capable 0.9 kW motor driven by a dedicated 415v supply. Drawing a rated current of 2.6 Amps, the electrical framework provides consistent torque required to shred abrasive matter. Weighing in at 22.2 kg, the heavy physical mass minimizes shifting or vibration during sudden operational starts. The complete assembly provides a solid, highly dependable foundation for multi-inlet circulation loops while keeping overall maintenance straightforward.

Features

• Manufactured with a substantial net weight of 22.2 kg, delivering a sturdy base for challenging industrial mounting.
• Rated to effectively process fluids with a maximum internal liquid temperature limit of up to 40 °C.
• Includes a standard 10-meter H07 RN-F power cable configured to assist with submerged wiring requirements.
• Utilizes a Class F motor insulation rating to support extended thermal endurance during continuous duty periods.
• Constructed to handle safe operation at an immersion depth extending up to 10 meters.
• Suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well.
