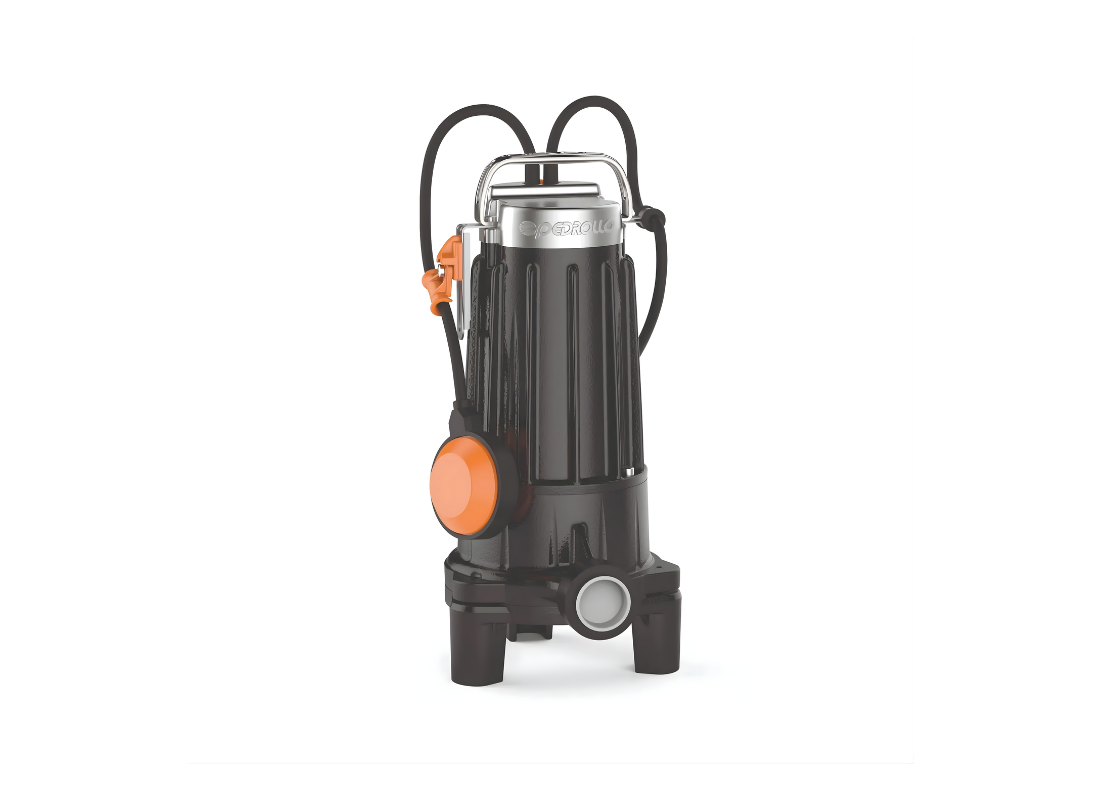

Pedrollo TR150 Cast Iron Thermal Motor Protection Grinder Pump for Effluent with Stainless Steel Grinder
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Detailing internal fluid velocity paths and hydraulic stability, the Pedrollo TR150 grinder pump for dirty water that contains solids is engineered for demanding fluid extraction. This robust unit utilizes an open micro-cast stainless steel impeller configured to maintain high circulation stability when moving heavy liquids. Built to achieve a substantial maximum head of 25 meters along with a peak flow of 270 L/Min, the thermodynamic core displaces waste efficiently. Pressurized transfer is carefully routed through a larger 40 mm flanged delivery port to accommodate increased flow.
Focusing on long-term operating efficiencies and safety containment, the heavy-duty three-phase configuration supports consistent output for civil projects. Powered by an industrial-grade 1.5 kW motor running on a 415v supply, the unit provides substantial rotational torque to manage dense sludge and sewage. Drawing a rated current of 3.7 Amps, the motor assembly is protected from subterranean moisture by a double mechanical seal with an interposed oil chamber. This containment strategy heavily mitigates the risk of catastrophic electrical failure.
Establishing the primary structural material footprint, the heavy exterior housing is manufactured entirely from thick cast iron treated with an anti-corrosive cataphoresis coating. This architectural layout offers high abrasion resistance, suitable for deep underground deployment where degradation is common. The system is supported by a massive net weight of 44.0 kg, which firmly anchors the equipment during high-torque startup phases. The unit is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well.
Addressing the explicit operational challenges of modern wastewater transfer, the unit requires a mechanical solution to prevent critical infrastructure blockages. The primary processing component relies on a hardened stainless steel grinder blade, expertly designed to cut through solids before fluid displacement occurs. By reducing thick fibrous materials into an easily manageable slurry, the assembly clears the pathway for continuous operation. This configuration assists operators in maintaining clear pressure maintenance infrastructure with minimal intervention.
Features
- Features an impressive net weight of 44.0 kg, establishing a highly secure and vibration-resistant physical footprint.
- Equipped to safely manage continuous active operation in liquid temperatures reaching up to 40 °C.
- Includes a standard IPX8 protection rating to maintain integrity during deep water immersion cycles.
- Engineered with a Class F motor insulation rating to effectively manage intense internal heat generation.
- Suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well.
- Designed to handle highly demanding applications with a maximum depth immersion rating of 10 meters.
- Requires a minimum continuous service immersion level of 350 mm to support safe thermal cooling.
SPECIFICATIONS
| Max Flow | 270 L/Min |
| Max Head | 25 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.7 Amps |
| Suitable For | Sewage Transfer |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40 °C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kinds of wastewater is this grinder pump designed to handle?
It is designed for dirty water containing solids, including dense sludge and sewage; TR150 uses a hardened grinder blade to reduce fibrous material before discharge.
Which electrical supply and motor rating does it use?
A 1.5 kW three-phase motor operates on a 415 V supply and draws 3.7 A, as listed for the TR_150 configuration.
How is the pump protected during submerged operation?
A double mechanical seal and oil chamber help protect the motor from moisture, while IPX8 protection supports submerged use for the TR/150.
What discharge connection is provided for wastewater transfer?
Wastewater exits through a 40 mm flanged delivery port, providing the connection described for the higher-flow hydraulic arrangement on the TR 150.
What installation features can simplify servicing?
Guide-rail installation with automatic coupling allows service access without entering the wet well, a practical maintenance feature offered with TR-150.
