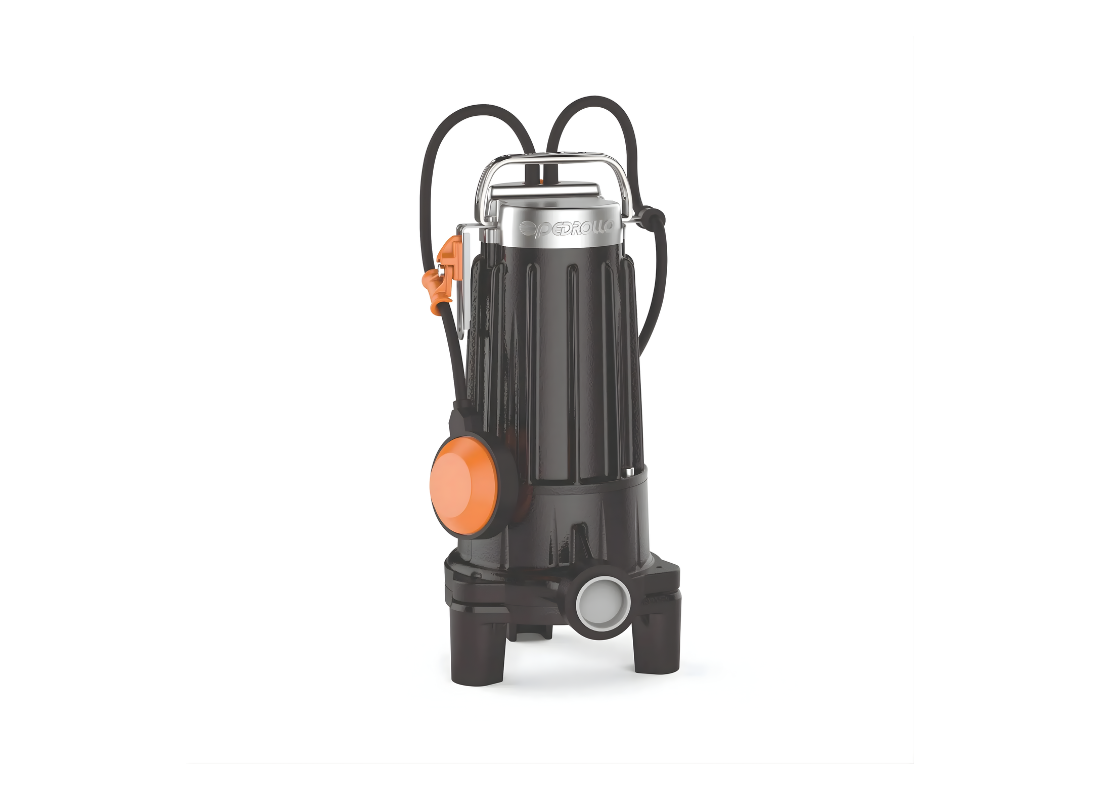

Pedrollo TRM075-MAN Cast Iron Stainless Steel Submersible Grinder Pump for Civil Wastewater with Open Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Constructed for structural integrity, the Pedrollo TRM075-MAN grinder pump for dirty water that contains solids utilizes a thick cast iron casing. This robust architecture offers high abrasion resistance. Configured for pressurized transfer via small-diameter piping, the system manages heavy wastewater loads.
The fluid pathway is developed to maintain consistent energy during operations. Designed to deliver a maximum head of approximately 15 meters and a maximum flow of 125 L/Min, the hydraulic core supports reliable circulation. A double mechanical seal in an oil chamber assists with motor protection.
Managing particulate loads requires a precise mechanical shearing process. This unit features a hardened stainless steel blade expertly designed to cut through solids safely. Deployed for high-volume fluid optimization, the system is suitable for rigorous civil wastewater transfer scenarios, supporting clear drainage networks.
Addressing operational parameters, the unit is driven by a capable 0.75 kW single-phase motor running at 240v. Built for manual control setups, this configuration supports specific infrastructure layouts requiring dedicated management. The assembly provides a reliable solution while keeping maintenance straightforward.
Features
- Engineered to handle a maximum liquid temperature of 40 °C for reliable continuous duty.
- Manufactured with an impressive net weight of 24.0 kg to assist installation stability.
- Features a specialized 32 mm outlet port designed for standard pressure piping networks.
- Equipped with an IPX8 protection class rating to completely withstand long-term submersion.
- Utilizes a Class F motor insulation rating to assist in managing internal thermal loads.
- Designed to support operation at a maximum immersion depth of up to 10 meters.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What makes this pump suitable for small-diameter sewage pipework?
Its hardened stainless steel blade cuts solids before discharge, supporting pressurised wastewater transfer through small-diameter piping with the TRM_075_MAN grinder pump.
What electrical supply is required?
A 0.75 kW single-phase motor operates on 240 V, making the listed electrical arrangement for TRM/075/MAN distinct from three-phase versions.
What are the maximum flow and head figures?
The stated maximum flow is 125 L/Min and maximum head is approximately 15 m; TRM 075 MAN lists these as separate limits.
How does the pump help protect its motor from liquid?
A double mechanical seal within an oil chamber assists with motor protection against liquid ingress during operation of the TRM-075-MAN wastewater pump.
What outlet connection is included?
The pump has a 32 mm outlet port for standard pressure piping networks, providing the described discharge connection on the TRM075 MAN.
