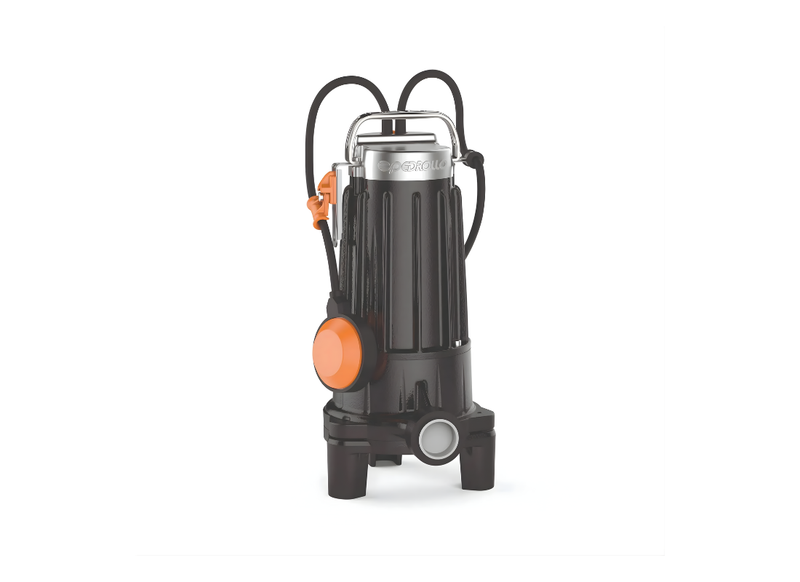

Pedrollo TRM090 Cast Iron Mechanical Oil Chamber Grinder Pump for Civil Wastewater Transfer with Open Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Addressing the need for environmental containment, the Pedrollo TRM090 grinder pump for dirty water that contains solids is built for structural reliability. Designed to alleviate maintenance costs, this automated unit manages fibrous materials across residential networks. Configured for continuous duty, the architecture supports optimal drainage.
The internal fluid paths demonstrate an optimized hydraulic blueprint for moving dense wastewater. Developed to reach a maximum head of approximately 15 meters and a peak flow of 170 L/Min, the pump maintains stable circulation. A double mechanical seal within an oil chamber provides motor protection from subterranean moisture.
Constructed from heavy-duty materials to resist abrasive conditions, the casing utilizes thick cast iron with a cataphoresis treatment. This foundation houses a hardened stainless steel blade expertly designed to cut through solids before fluid displacement. This shearing action makes the assembly suitable for dense civil wastewater loads.
Deployed for automated sanitation pathways, the unit incorporates an integrated float switch for safe fluid level management. Powered by a capable 0.9 kW single-phase motor running at 240v, the system provides consistent torque for the open impeller. This supports operation in sumps, supporting reliable automated transfer of contaminated fluids.
Features
- Constructed with a heavy-duty net weight of 23.9 kg to prevent movement during active operation.
- Equipped to manage continuous operation in liquid temperatures reaching up to 40 °C safely.
- Includes a standard IPX8 protection rating to maintain integrity during deep water submersion.
- Engineered with a Class F motor insulation rating to effectively manage internal heat generation.
- Features a highly durable 32 mm flanged delivery port for seamless integration into existing lines.
- Designed to handle demanding applications with a maximum depth immersion rating of 10 meters.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this pump manage fibrous solids in wastewater?
A hardened stainless steel grinder blade cuts solids before fluid displacement, helping manage fibrous domestic wastewater and reduce blockage risks with the TRM_090.
What protection helps guard the motor against moisture?
A double mechanical seal within an oil chamber helps protect the motor from moisture ingress during wastewater handling with the TRM/090 grinder pump.
What are the maximum flow and head values?
The listed maximum flow is 170 L/Min and maximum head is approximately 15 m; TRM 090 presents these as separate hydraulic limits.
Which casing material is used for abrasive environments?
The casing is made from thick cast iron with cataphoresis treatment, giving the TR-M090 a durable housing for demanding wastewater conditions.
What kind of operation is this model designed for?
The description presents this grinder pump as an automated, continuous-duty option for residential wastewater networks, helping manage fibrous material during drainage with TRM090.
