SKU: TRM090-MAN

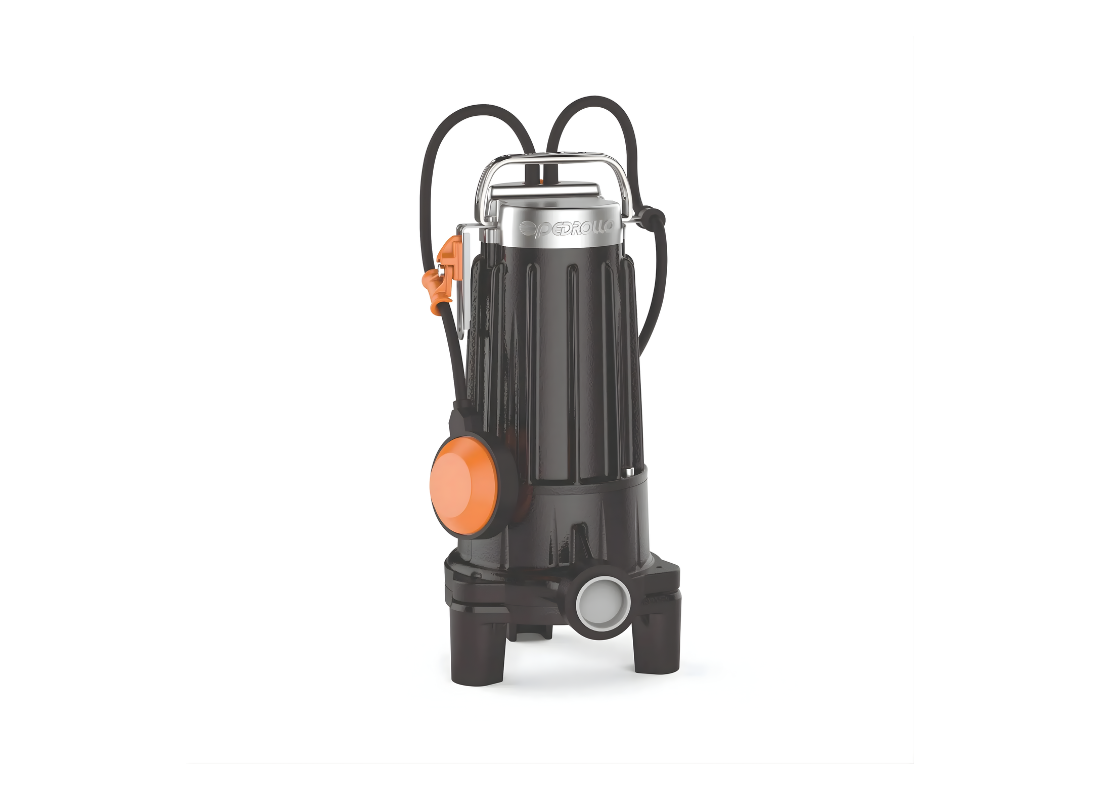

Pedrollo TRM090-MAN Cast Iron Cataphoresis Treatment Grinder Pump for Pressurized Transfer with Open Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
Developed to maintain internal fluid velocity, the Pedrollo TRM090-MAN grinder pump for dirty water that contains solids is constructed for high-performance drainage. This unit offers significant robustness, suitable for rigorous wastewater settings. Configured for pressurized transfer, it effectively manages heavy particulate matter.
The core framework reveals a thick cast iron casing enhanced with a cataphoresis treatment. This robust architecture is paired with a hardened stainless steel blade, expertly designed to cut through solids before entering the volute. This combination helps the system withstand corrosive degradation while supporting fluid displacement.
Addressing hydraulic capability, the unit is designed to achieve a maximum head of approximately 15 meters and a maximum flow of 170 L/Min. This output facilitates stable circulation when processing domestic sewage. A double mechanical seal within an oil chamber keeps the motor insulated from liquid ingress.
Supporting low operational disruptions, the pump is powered by a dependable 0.9 kW single-phase motor utilizing a 240v supply. Built for manual operation, this model allows operators to integrate it into dedicated control infrastructures. The assembly provides a solid foundation for waste management with minimal service needs.
Features
- Manufactured with a substantial net weight of 23.9 kg for secure operational placement.
- Rated to safely manage a maximum internal liquid temperature limit of 40 °C.
- Includes a standard 10-meter power cable configured to assist with deep well setups.
- Equipped with a Class F motor insulation rating to support thermal endurance.
- Constructed to handle operation at an immersion depth extending up to 10 meters.
- Designed to maintain a minimum continuous service immersion level of 300 mm.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What controls are intended for this version?
This is a manually operated configuration for dedicated control setups; the TRM090 MAN uses a single-phase motor rather than an automatic float-switch arrangement.
How does the grinder handle solids before discharge?
A hardened stainless steel blade cuts particulate matter before it enters the volute, helping support wastewater transfer through the TRM/090/MAN configuration.
What motor rating and voltage are provided?
The unit uses a 0.9 kW single-phase motor on a 240 V supply, providing the listed electrical configuration for the TRM090-MAN grinder pump.
What are its stated hydraulic performance limits?
Maximum flow is 170 L/Min and maximum head is approximately 15 m; these separate limits describe the hydraulic capability of TRM 090 MAN.
How is the casing prepared for wastewater service?
A thick cast iron casing with cataphoresis treatment provides abrasion resistance, while the TR_090-MAN grinder blade supports solids handling in demanding wastewater installations.
