SKU: VXC20/70-F

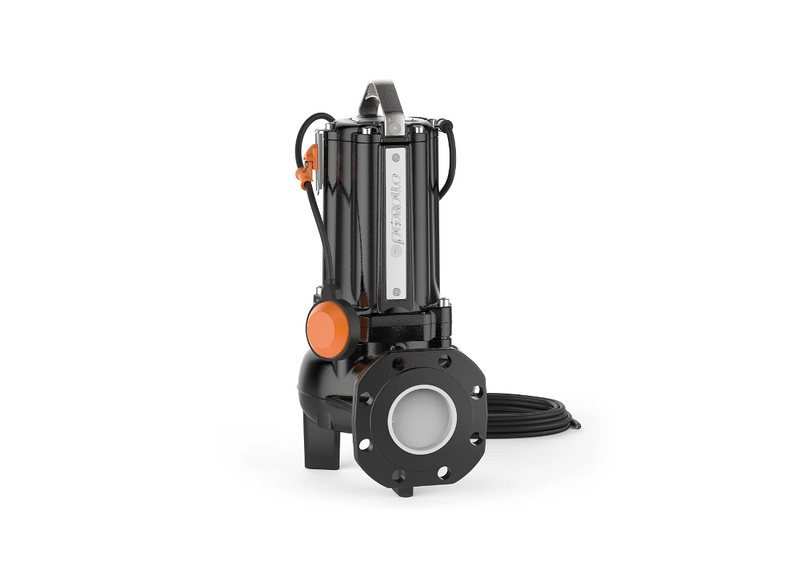

Pedrollo VXC20/70-F Cast Iron Guide Rail Submersible Drainage Pump for Dirty Water with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Pedrollo
Peace of Mind
Product Overview
The Pedrollo VXC20/70-F VXC Submersible Vortex Pump, Guide Rail supports commercial drainage. Developed for facilities managing dirty water with suspended solids, this unit processes unrefined sewage and sludge mixtures. By stabilizing fluid pathways, it helps reduce stalling associated with untreated effluent transfer.
Supporting continuous operation in challenging environments, the casing relies on a heavy-gauge cast iron construction fortified by a cataphoresis treatment. This architectural casting isolates internal mechanics from abrasion. Weighing 39.5 kg, the dense structural housing provides static stability, supporting stationary operation during high-volume processing.
Internal fluid velocity is managed by a cast iron VORTEX impeller tailored for wide-clearance movement. This assembly is protected by a double mechanical seal partitioned by an oil chamber, limiting moisture intrusion. These components accelerate liquids to generate a flow capacity of 1000 L/min while accommodating fluid extraction up to a 7.4 m head limit.
Electrical power is managed by a 1.5 kW three-phase motor drawing 4.2 Amps on a 415v line. Featuring an 80 mm port, the unit helps reduce back pressure. Furnished with a 10-metre cable, this platform handles immersion in liquids up to 40 degrees Celsius, and is configured for guide rail installations using an automatic coupling arrangement.
Features
- Configured for guide rail installations employing an automatic coupling base arrangement
- Manufactured from heavy-gauge cast iron featuring cataphoresis treatment for abrasion resistance
- Engineered to safely process suspended solids up to 70 mm in diameter
- Drive shaft protected by a double mechanical seal separated by an oil chamber
- Integrates an AISI 431 stainless steel motor shaft for rotational durability
- Equipped with a standard 10-metre power cable for deep well deployments
- Verified dry unit weight of 39.5 kg to support static underground stability
SPECIFICATIONS
| Max Flow | 1000 L/min |
| Max Head | 7.4 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.7 Amps |
| Suitable For | High Flow Drainage Applications |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Documents
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of wastewater can this pump transfer?
It is intended for dirty water containing suspended solids, including unrefined sewage and sludge mixtures; VXC20/70-F supports commercial drainage duties.
What temperature limit applies to the liquid being pumped?
The unit handles liquids up to 40°C and is furnished with a 10-metre cable; VXC20_70-F is configured for continuous immersion.
How does the pump protect its internal drive components?
A double mechanical seal and oil chamber help limit moisture intrusion, while an AISI 431 stainless steel motor shaft supports durability in VXC20/70/F.
What motor and electrical connection are required?
A 1.5 kW three-phase motor draws 4.2 amps on a 415 V line; VXC 20 70-F also has an 80 mm port.
Does the installation support guide-rail mounting?
Yes, the design supports guide-rail installation using an automatic coupling arrangement, helping simplify service access; VXC20-70-F also includes a 10-metre power cable.
