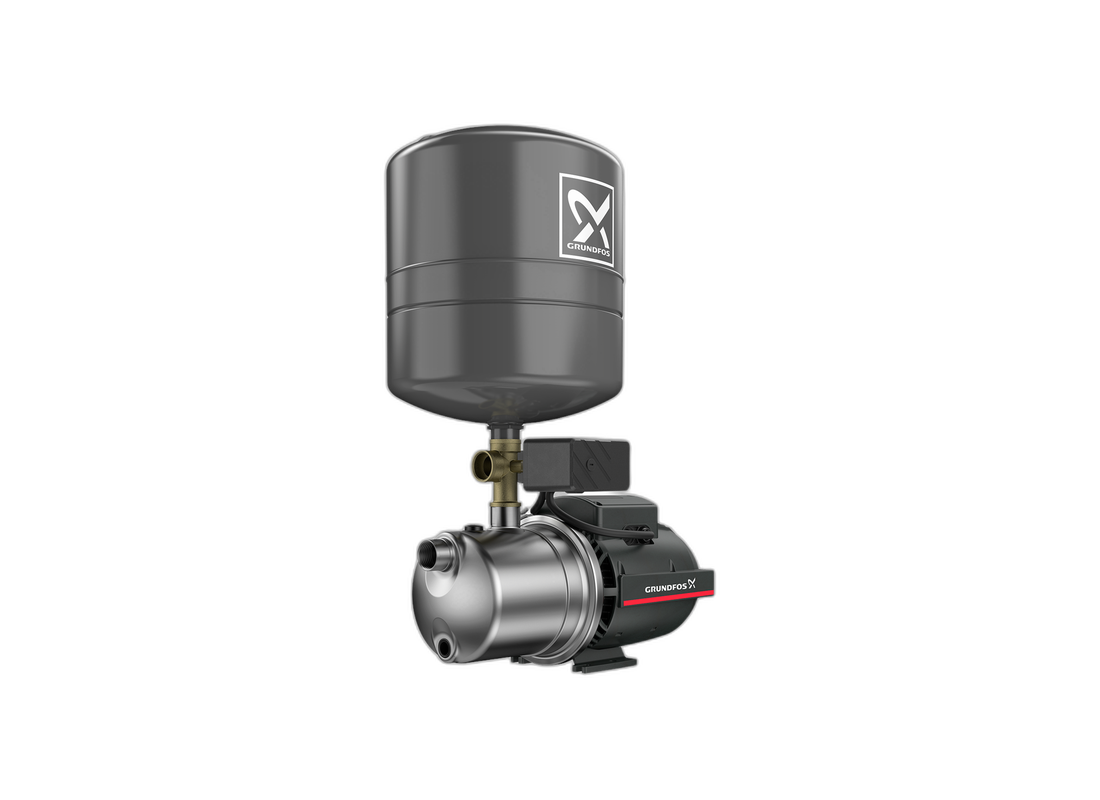

Grundfos JP 3-42 Stainless Steel Self-Priming Jet Pump for Home Supply with Pressure Tank
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos JP 3-42 PT-V is an automatic pressure jet pump system designed for home water supply, garden irrigation, and light water transfer applications. The system includes a Grundfos JP self-priming pump, a pressure switch, pressure gauge, and a vertical diaphragm pressure tank, delivering stable and automatic pressure control.
The integrated pressure tank reduces water hammer in the pipeline and minimizes pump cycling by supplying stored water during low demand conditions. The pressure switch and tank work together to ensure efficient start and stop operation, improving system performance and extending pump life.
The pump is constructed with a stainless steel housing (AISI 304) and a composite impeller (PPO-20GF), ensuring corrosion resistance and durability. The self-priming design allows the pump to handle air-liquid mixtures during start-up and supports suction lift from below-ground water sources.
According to the technical data, the pump operates at a rated flow of 3 m³/h with a corresponding head of 36.5 metres. From the performance curve, the unit achieves a maximum head of approximately 42 metres at shut-off conditions and supports a suction lift of up to 8 metres.
The unit is powered by a 0.45 kW electric motor operating on a 1 x 240 V, 50 Hz supply, with a rated current of 3.1 Amps. The pressure switch is preset with a cut-in pressure of 2.2 bar, ensuring reliable automatic operation based on system demand.
FEATURES- Complete Booster System with pump, pressure switch, gauge, and diaphragm tank
- 20 L Vertical Pressure Tank reduces water hammer and stabilizes pressure
- Preset Cut-In Pressure of 2.2 bar for automatic operation
- Reduced Pump Cycling using stored tank water during low demand
- Self-Priming Capability with suction lift up to 8 m
- Handles air-liquid mixtures during priming for reliable start-up
- Thermal Protection safeguards motor against overheating
- Air-Cooled Motor with sealed bearings for quiet performance
- Corrosion-Resistant Stainless Steel Construction for durability
- Automatic Pressure Control for consistent household supply
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid throughput and pressure head are developed by this pump?
Depending on operating conditions, the Grundfos JP 3-42 delivers a maximum flow rate of 50 L/Min and a maximum head of 42 m.
What voltage supply and motor power does this pump need?
Connecting across 240v lines, the JP 3-42 draws approximately 3.1 Amps with an efficient 0.45 kW motor.
Is the pump body built to withstand harsh and corrosive liquids?
Durable Stainless Steel construction gives the JP-3-42 exceptional structural strength and long-term protection against corrosive fluids.
Which pumping tasks and system installations are ideal for this unit?
System installations deploy the JP 3 42 for Energy optimization in supports self-priming suction from shallow ground wells, rainwater barrels, and garden wash points, maintaining steady circulation and reliable line pressure.
What manufacturer warranty coverage is included with this pump?
Purchase of the JP/3/42 includes an official 2 Years warranty from Grundfos, covering parts and manufacturing quality.
