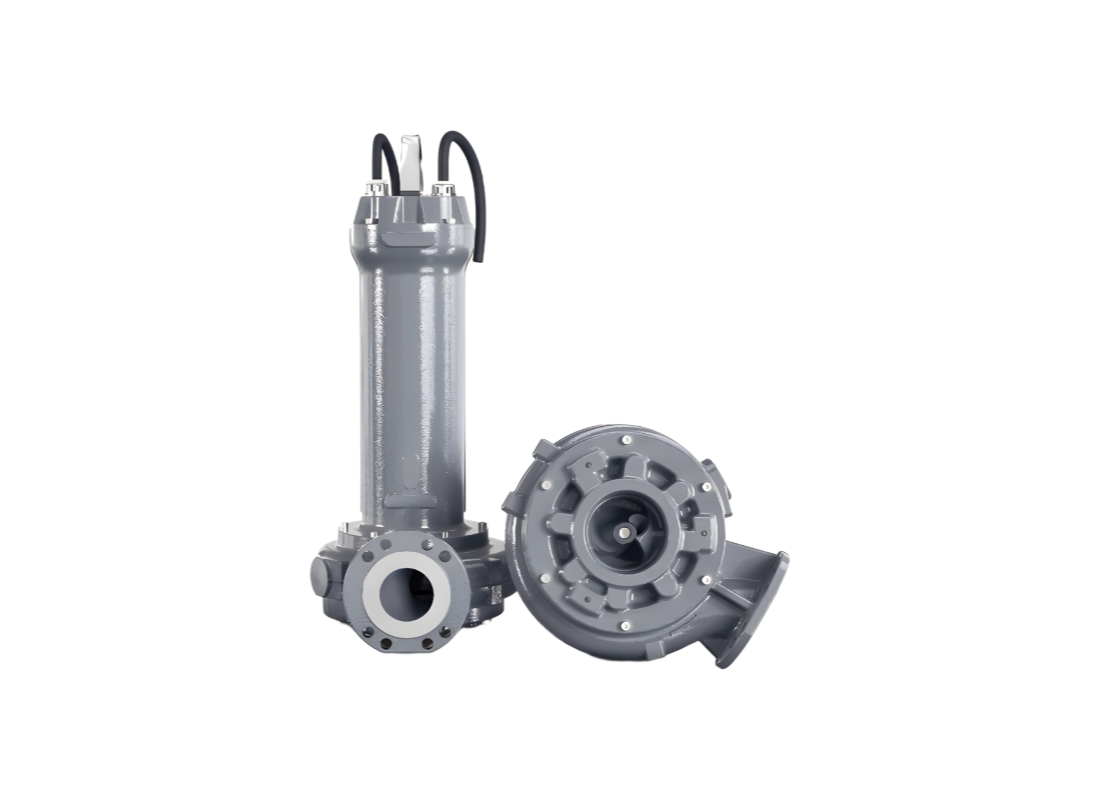

Zenit CTG300/4/80 Cast Iron Vortex Chopper Pump for Agricultural Waste with Open Channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Highly soiled sewage with fibrous waste in commercial and industrial applications requires pumps that combine high flow rates with effective solids management. The Zenit CTG 300/4/80 is a 2.2 kW submersible impeller chopper pump that combines the high flow rates of Open Channel design with the solids handling capacity of Vortex hydraulics, paired with an active chopper cutting assembly. The unit is suitable for lifting highly soiled sewage with fibrous waste in agricultural and industrial settings.
Maximum head reaches 13.6 metres with a maximum flow of 2100 L/Min, driven by a 415V three-phase motor drawing 5.2 Amps. The 2.2 kW motor uses direct starting with 25.3 Amps starting current and produces 14.9 Nm of rated torque. These performance characteristics suit high-volume applications requiring significant flow capability with moderate head requirements.
Hydraulic design incorporates an open channel impeller with cutting system, with the impeller manufactured from Cast Iron EN-GJS 600. The active chopper cutting system processes solids before they enter the impeller, with a free passage of 32 mm for processed material. Hydraulic efficiency is rated at 75.9%, with suction and discharge configurations of DN 100 (undrilled) and DN 80 respectively.
Construction consists of a Cast Iron EN-GJL 250 casing with bi-epoxy 200 ?m sea water resistant coating. The shaft is stainless steel AISI 431, and sealing uses two mechanical seals in silicon carbide (2SiC). Motor protection includes Class H insulation, IP68 rating, thermal protection, and a leakage sensor. Cable length is 10 metres with 4G1,5+3x1 configuration, and the unit weighs 125.4 kg. An accessory (code 9024.114) is required for installation.
FEATURES
- Open channel impeller with cutting system for solids chopping
- Cast Iron EN-GJS 600 impeller material for durability
- Double silicon carbide mechanical seals for reliable sealing
- Stainless steel AISI 431 shaft for corrosion resistance
- Bi-epoxy 200 ?m sea water resistant coating
- Hydraulic efficiency of 75.9% for optimised performance
- Maximum starts per hour: 20
- Requires accessory code 9024.114 for installation
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which materials form the casing and rotating shaft?
The casing is Cast Iron EN-GJL 250, and CTG300_4_80 pairs it with an AISI 431 stainless steel shaft and mechanical seals.
Which maximum flow and head values apply to this pump?
CTG300 4 80 has maximum flow of 2100 L/Min and amaximum headrating of 13.6 m for hydraulic selection.
Where is this pump intended to transfer wastewater?
For loaded wastewater containing solids and fibrous waste, CTG300-4-80 transfers wastewater from collection sumps and drainage systems across intended service settings.
How does the hydraulic system handle fibrous solids?
An active chopper cuts solids before they enter the open-channel impeller in CTG300/4/80, with a 32 mm passage for processed material.
What electrical configuration powers this pump during normal operation?
A 2.2 kW motor uses 415 V three-phase supply in CTG300480, with Class H insulation and IP68 protection for submerged service.
