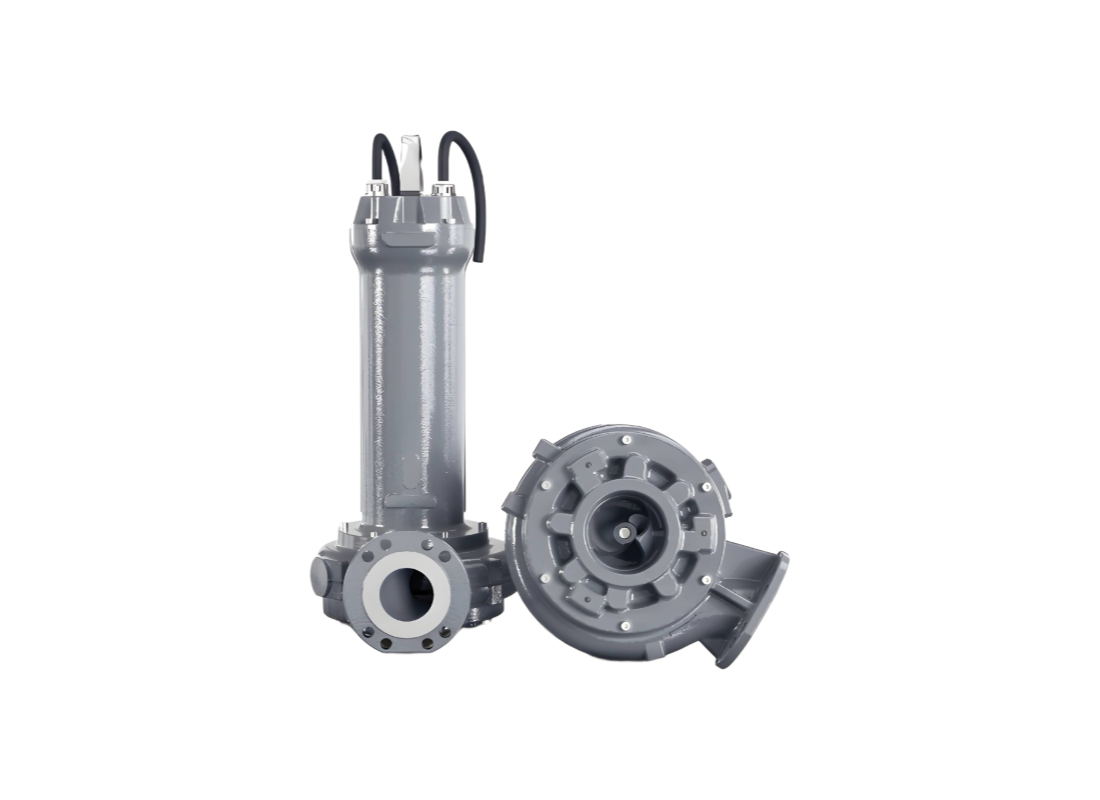

Zenit CTG750/4/100 Cast Iron Open Channel Chopper Pump for Construction Dewatering with Open Channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Wastewater management, construction, and industrial processing facilities require pumps that combine high flow rates with effective solids chopping for loaded wastewater streams. The Zenit CTG 750/4/100 is a 5.5 kW submersible impeller chopper pump featuring a high-efficiency open-channel hydraulic system with Vortex capabilities and hard-wearing active chopper cutting blades. The unit is suitable for a wide range of heavy-duty applications including wastewater management, agriculture, construction, and industrial processing.
Maximum head for this model is 20.0 metres with a maximum flow of 2982 L/Min, powered by a 415V three-phase motor drawing 11.5 Amps. The 5.5 kW motor provides consistent performance across the operating range, with Class H insulation and IP68 ingress protection. These performance characteristics suit high-volume applications requiring significant flow capability with moderate head requirements.
Hydraulic design incorporates an open channel impeller with cutting system, with the impeller manufactured from Cast Iron EN-GJS 600. The active chopper cutting system processes solids before they enter the impeller, with a free passage of 36 mm for processed material. Hydraulic efficiency is rated at 70%, with suction and discharge configurations of DN 150 (undrilled) and DN 100 respectively.
Construction features a Cast Iron EN-GJL 250 casing with bi-epoxy 200 ?m sea water resistant coating. The shaft is stainless steel AISI 431, and sealing uses two mechanical seals in silicon carbide (2SiC). Motor protection includes thermal protection and a leakage sensor. Cable length is 10 metres with 4G1,5+3x1 configuration, and the unit weighs 149.2 kg. An accessory (code 9024.091) is required for installation.
FEATURES
- Open channel impeller with cutting system for solids chopping
- Cast Iron EN-GJS 600 impeller material for durability
- Double silicon carbide mechanical seals for reliable containment
- Stainless steel AISI 431 shaft for corrosion resistance
- Bi-epoxy 200 ?m sea water resistant coating on all cast iron
- Hydraulic efficiency of 70% for optimised performance
- Maximum starts per hour: 20
- Requires accessory code 9024.091 for installation
SPECIFICATIONS
| Max Flow | 2982 L/Min |
| Max Head | 20 m |
| Power | 5.5 kW / 415v |
| Rated Current | 11.5 Amps |
| Suitable For | Wastewater Management |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 150 mm |
| Outlet Size | 100 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How is the motor configured for safe operation?
A 5.5 kW motor uses 415 V three-phase supply in CTG750_4_100, with Class H insulation and IP68 protection for submerged service.
How does the hydraulic system handle fibrous solids?
An active chopper cuts solids before they enter the open-channel impeller in CTG750 4 100, with a 36 mm passage for processed material.
What construction details support submerged pump operation?
The casing is Cast Iron EN-GJL 250, and CTG750-4-100 pairs it with an AISI 431 stainless steel shaft and mechanical seals.
Where is this pump intended to transfer wastewater?
For loaded wastewater containing solids and fibrous waste, CTG750/4/100 transfers wastewater from collection sumps and drainage systems across intended service settings.
What maximum flow and head can this model reach?
CTG7504100 has maximum flow of 2982 L/Min and amaximum headrating of 20.0 m for hydraulic selection.
