SKU: 800347

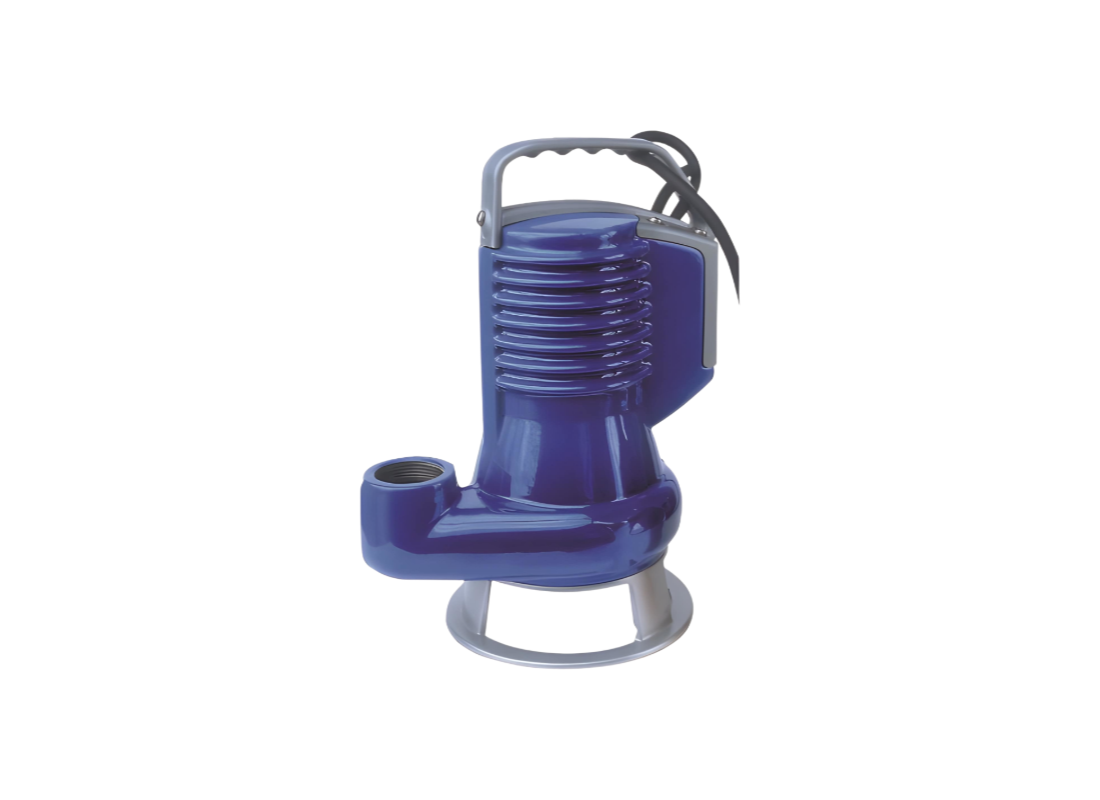

Zenit DG Blue 100/2/G40V A1BM5 Cast Iron Float Drainage Pump for Domestic Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Handling domestic wastewater and soiled liquids is the primary application for this automatic submersible unit. It is rated for liquid temperatures reaching 40°C and is engineered for fixed vertical installation in residential collection sumps. The integrated float switch facilitates fully unattended operation by managing the start and stop cycles based on real-time fluid levels.
Performance output for the 0.75 kW induction motor includes a maximum flow rate of up to 430 L/Min and a total manometric head reaching approximately 11.5 m. Operating on a single-phase 240 V supply, the unit draws a rated current of 5.6 Amps. This air-filled 2-pole dry motor is protected by 10 meters of submersible power cable.
The hydraulic design utilizes a set-back vortex impeller with 40 mm free passage through the pump. This configuration ensures efficient movement of dirty water through the discharge port. It is optimized for domestic dewatering where reliable operation is required.
Structural components including the pump casing and motor frame are manufactured from cast iron EN-GJL 250 for durability in submerged duty. Shaft sealing is managed by a double mechanical system in an oil chamber featuring Silicon Carbide and Alumina Graphite faces. The assembly is built with an AISI 431 stainless steel shaft and includes an in-built thermal protector for motor safety.
FEATURES
- Cast iron EN-GJL 250 pump body and motor frame provide structural stability in permanent submerged installations.
- Automatic start and stop functionality is managed by an integrated float switch for unattended management of liquid levels.
- Set-back vortex impeller design provides 40 mm free passage.
- Double mechanical shaft sealing system isolated by an oil chamber prevents fluid ingress and extends motor service life.
- Silicon Carbide and Alumina Graphite seal faces provide wear resistance in wastewater environments.
- In-built thermal overload protector safeguards the 0.75 kW induction motor from damage during high-load drainage cycles.
- Supplied with a 10-meter H07RN-F power cable suitable for installation in collection pits at depths reaching 10 meters.
- Class F electrical motor insulation and IP68 protection rating support safe operation in soiled liquids reaching 40°C.
Model: ZEN-DGBLUE100/2/G40VMGEX
SPECIFICATIONS
| Max Flow | 430 L/Min |
| Max Head | 11.5 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.6 Amps |
| Suitable For | Sewage Transfer |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What liquid temperature can this pump handle?
For soiled liquids, DG_Blue_100_2_G40V_A1BM5 supports temperatures up to 40°C and includes IP68 protection for submerged drainage installations in collection pits.
Which construction features protect the motor during pumping?
The double mechanical shaft seals with Silicon Carbide and Alumina Graphite faces in an oil chamber on DG Blue 100 2 G40V A1BM5 helps protect.
How does the impeller manage solids in wastewater?
The set-back vortex impeller with 40 mm free passage on DG-Blue-100-2-G40V-A1BM5 allows suspended solids to pass through the hydraulic section during wastewater pumping.
What motor features support its operating requirements?
The 0.75 kW motor in DG/Blue/100/2/G40V/A1BM5 drives the pump, while built-in thermal protection guards the winding against overheating during demanding drainage cycles.
What supplied features assist installation and handling?
The supplied cable and handling features on DGBlue1002G40VA1BM5 support placement and connection at drainage pits for installation at drainage pits.
