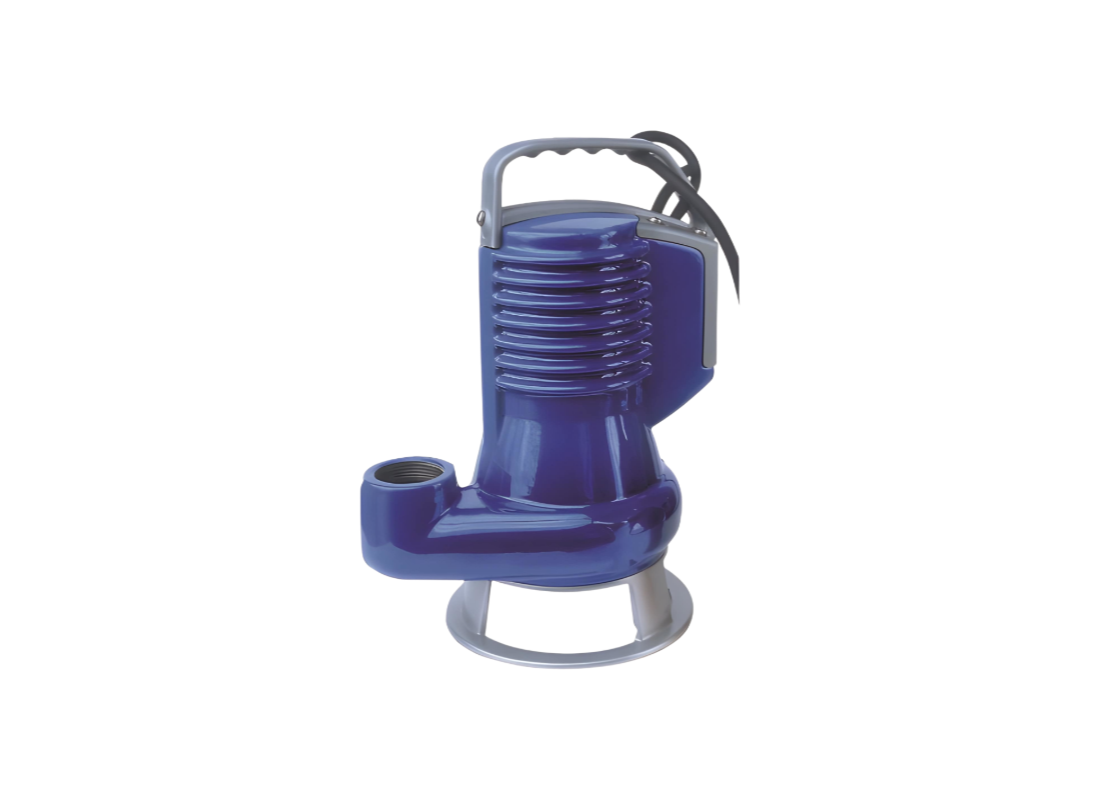

Optimized for residential wastewater drainage and the lifting of soiled liquids, this vertical unit handles liquid temperatures reaching 40°C. It is IP68 rated for submerged operation and is designed for permanent installation in collection pits with minimum clearance. The pre-installed float switch allows for fully automated drainage cycles without the need for an external control panel.
Hydraulic output is provided by a 0.37 kW motor delivering a maximum flow rate of up to 290 L/Min and reaching approximately 7.8 m head. Operating on a 240 V single-phase supply, the unit draws a rated current of 2.8 Amps during continuous duty. The air-filled 2-pole induction motor is protected by a 10-meter submersible power cable.
The hydraulic design utilizes a set-back vortex impeller with 40 mm free passage through the pump. This configuration provides a recessed flow path through the discharge port. This system is ideal for dewatering tasks where solids may be present.
Construction features include a cast iron EN-GJL 250 pump casing and motor frame paired with an AISI 431 stainless steel shaft extension. Sealing is managed by a double mechanical system in an intermediate oil chamber utilizing Silicon Carbide and Alumina Graphite faces. The motor assembly features Class F electrical insulation and includes an integrated thermal protector for safety.
FEATURES
- Cast iron EN-GJL 250 pump body and motor casing ensure structural longevity in submerged environments.
- Integrated float switch technology enables automated start/stop functionality for unattended wastewater management.
- Set-back vortex impeller design provides 40 mm free passage.
- Double shaft seals in an oil-lubricated chamber provide protection against fluid ingress to the motor winding.
- Silicon Carbide and Alumina Graphite seal faces provide wear resistance when handling soiled liquids with debris.
- 0.37 kW motor draws 2.8 Amps while delivering stable hydraulic performance for domestic drainage.
- In-built thermal protector prevents motor damage from overheating during high-load vertical lifting cycles.
- Supplied with 10 meters of H07RN-F power cable and plug for rapid installation in domestic wastewater pits.
Model: ZEN-DGBLUE50/2/G40VMGEX
