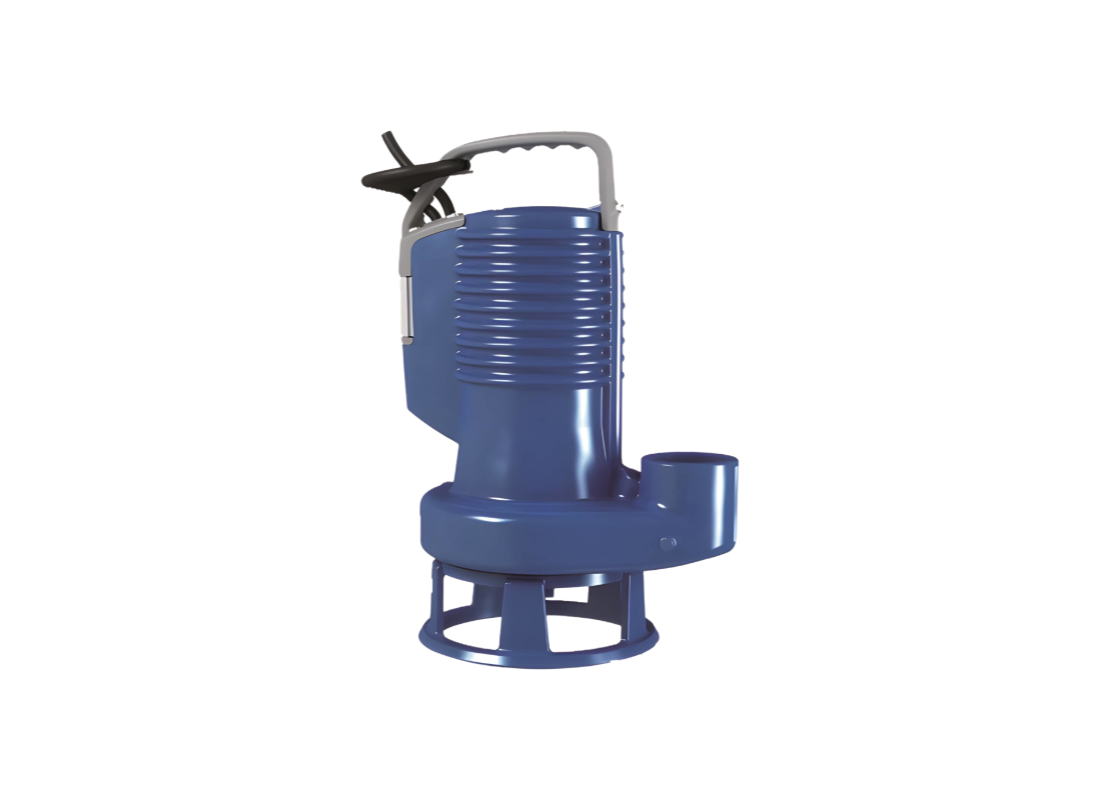

Zenit DG BluePRO 150/2/G50V A1CM5 Cast Iron Drainage Pump for Sewage Transfer with Solids-Handling Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Designed for wastewater lifting and the transfer of soiled liquids in industrial stations, this vertical unit handles temperatures reaching 40°C. It is rated for continuous service in submerged environments and is engineered for stationary installation in collection pits. The manual configuration is designed for tasks where pump cycles are managed by an external control panel.
Performance output for the 1.1 kW motor includes flow rates of up to 600 L/Min and a total manometric head of approximately 12.3 m. Drawing a rated current of 7.5 Amps on a single-phase 240 V supply, the unit is protected by 10 meters of submersible power cable. The air-filled 2-pole induction motor operates at approximately 2780 rpm and features Class F electrical insulation.
The hydraulic system utilizes a vortex impeller with 50 mm free passage through the pump. This configuration provides a clear internal flow path through the discharge port. It is engineered for stable operation in systems where solids are present.
Materials of construction feature cast iron EN-GJL 250 for the pump body and motor casing with AISI 420 stainless steel for the shaft. Protection is managed by two silicon carbide mechanical seals isolated in an intermediate oil chamber. The assembly is secured with A2-70 stainless steel screws and utilizes a bi-epoxy coating for resistance to wastewater environments.
FEATURES
- Cast iron EN-GJL 250 construction provides structural stability for permanent collection pit installations.
- Vortex impeller configuration provides 50 mm free passage.
- Two silicon carbide mechanical shaft seals in an oil chamber safeguard the motor from fluid ingress in deep wells.
- Single-phase 1.1 kW motor reaches approximately 12.3 m head while drawing 7.5 Amps for wastewater duty.
- Bi-epoxy 80 µm coating provides durability against corrosive elements found in soiled liquids.
- Ball bearings support the rotating assembly for stable mechanical behavior during 2780 rpm run cycles.
- Integrated motor thermal protection safeguards the winding from damage during high-load drainage tasks.
- Standard 10-meter submersible power cable allows for secure integration into deep collection wells.
Model: ZEN-DGBLUEP150/2/G50VMEX
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 12.3 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.5 Amps |
| Suitable For | Septic Wastewater |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor features support its operating requirements?
The 1.1 kW motor in DG_BluePRO_150_2_G50V_A1CM5 drives the pump, while built-in thermal protection guards the winding against overheating during demanding drainage cycles.
What liquid temperature can this pump handle?
DG BluePRO 150 2 G50V A1CM5 handles liquid temperatures up to 40°C in the submerged drainage applications in collection pits or wells.
How does the impeller manage solids in wastewater?
The vortex impeller with 50 mm free passage in DG-BluePRO-150-2-G50V-A1CM5 allows suspended material to pass through the hydraulic section during wastewater pumping.
What electrical supply does this model require?
The DG/BluePRO/150/2/G50V/A1CM5 requires a 240 V single-phase supply with a rated current of 7.5 A; match the site connection before installation.
Which construction features protect the motor during pumping?
DGBluePRO1502G50VA1CM5 combines two silicon carbide mechanical seals in an oil chamber with a cast iron body to protect the motor during the described drainage duty.
