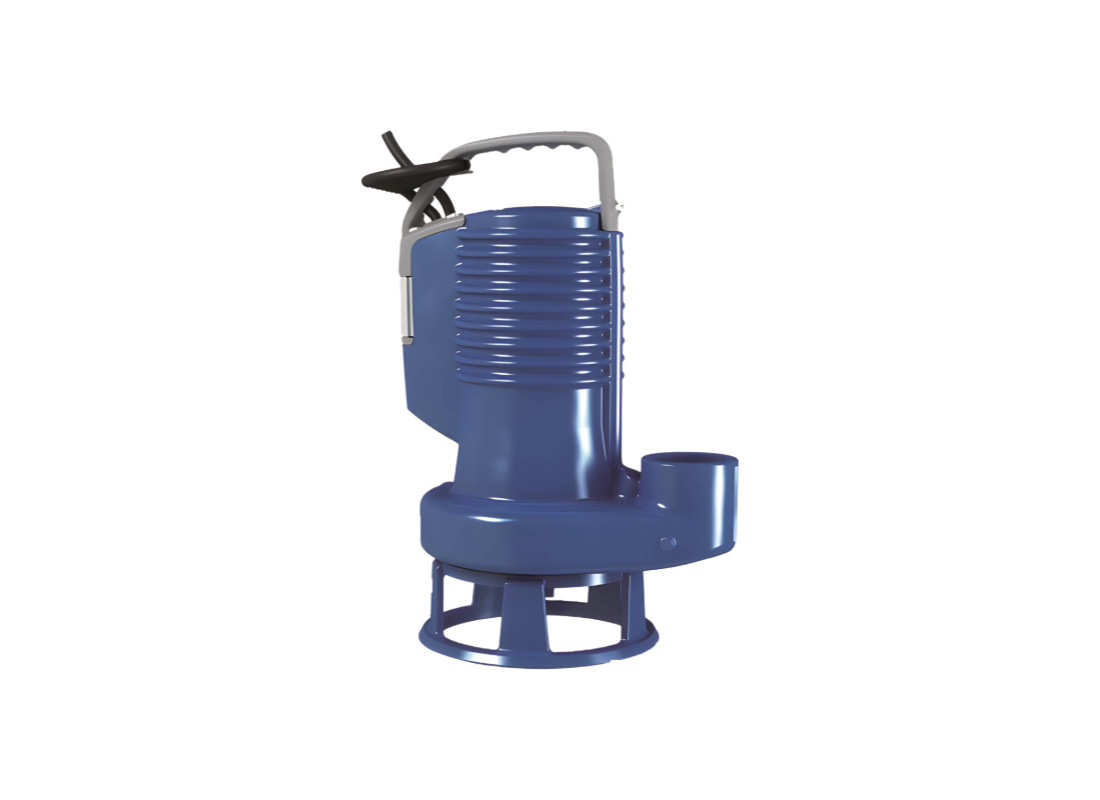

Automated collection of wastewater and the lifting of soiled liquids are the primary service duties for this automatic submersible unit. It is rated for liquid temperatures reaching 40°C and is engineered for fixed vertical installation in industrial pits. The pre-installed float switch allows for fully unattended operation by managing the start and stop drainage cycles.
Performance output for this 1.1 kW motor includes flow rates of up to 600 L/Min and reaching a total manometric head of approximately 12.3 m. Drawing a rated current of 7.5 Amps on a single-phase 240 V supply, the system maintains stable hydraulic performance during continuous drainage. The unit is supplied with 10 meters of submersible power cable and a Shuko plug.
The hydraulic design utilizes a vortex impeller with 50 mm free passage through the pump. This configuration ensures efficient movement of soiled liquids through the discharge port. It is suited to wastewater collection applications.
Structural components include a cast iron EN-GJL 250 pump casing and motor frame paired with an AISI 420 stainless steel shaft. Protection is managed by two silicon carbide mechanical seals in an intermediate oil chamber, supported by NBR gaskets. The rotating assembly utilizes sealed ball bearings and includes an in-built thermal protector and capacitor for motor safety.
FEATURES
- Cast iron EN-GJL 250 construction for the pump body and casing ensures longevity in permanent submerged pits.
- Integrated float switch technology enables fully automated management of fluid levels without an external panel.
- Vortex impeller design provides 50 mm free passage.
- Two mechanical seals in silicon carbide isolated by an oil chamber prevent moisture ingress to protect the motor.
- 80 µm bi-epoxy coating provides resistance to environmental corrosion in wastewater environments.
- 1.1 kW motor draws 7.5 Amps while delivering 600 L/Min flow for high-volume wastewater collection.
- In-built thermal protector and capacitor safeguard the motor winding from damage during high-load drainage tasks.
- Standard 10-meter H07RN-F power cable and Shuko plug allow for immediate portable or stationary installation.
Model: ZEN-DGBLUEP150/2/G50VMGEX
