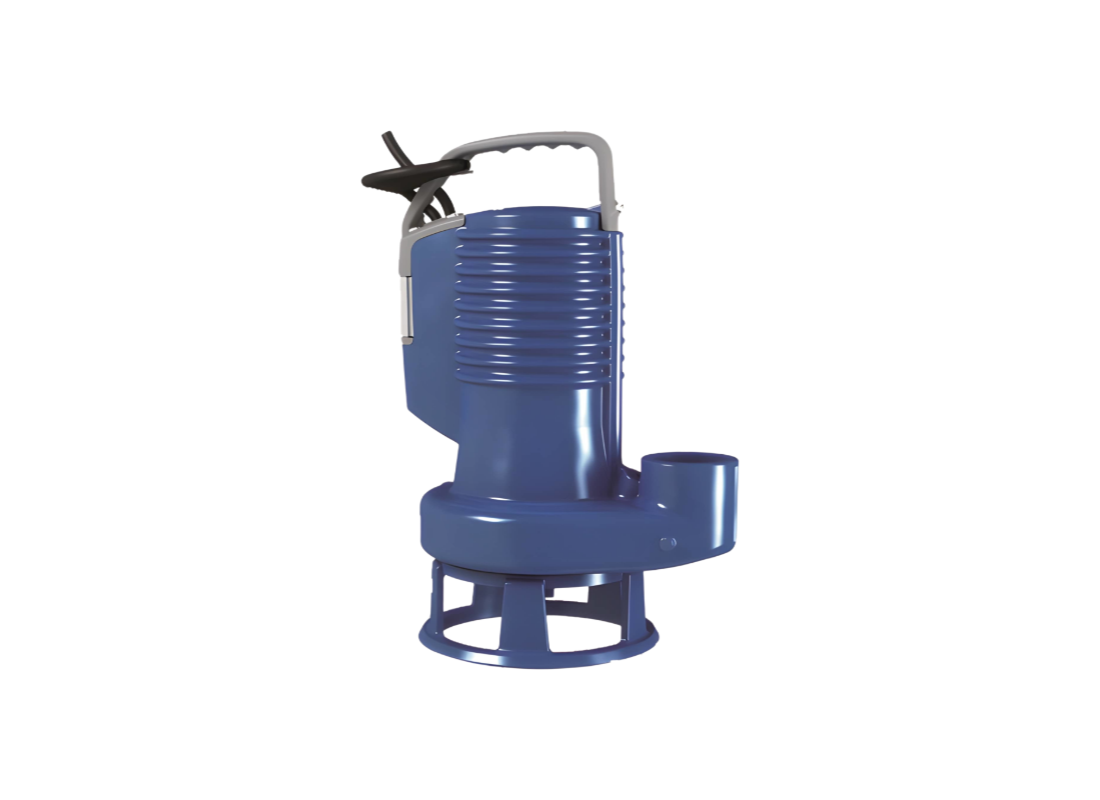

Lifting soiled liquids and floodwater drainage in municipal or industrial stations are the documented service duties for this automatic unit. It is rated for liquid temperatures up to 40°C and is engineered for fixed installation in collection sumps. The integrated float switch ensures fully unattended operation by managing start and stop cycles based on real-time fluid levels.
Performance output for this 1.5 kW motor includes a maximum flow rate of up to 690 L/Min and reaching approximately 15.3 m head. Operating on a 240 V single-phase supply, the unit draws a rated current of 10 Amps during continuous run cycles. This 2-pole induction motor operates at 2750 rpm and is supplied with a 10-meter power cable and plug.
The hydraulic design features a vortex impeller with 50 mm free passage through the pump. This system provides an open flow path through the discharge port. It is optimized for reliability in floodwater management systems where debris may be present.
Construction features include a cast iron EN-GJL 250 pump casing and motor frame paired with an AISI 420 stainless steel shaft extension. Sealing is managed by two silicon carbide mechanical seals in an intermediate oil chamber featuring a bi-epoxy coating. The motor assembly includes an integrated thermal protector and capacitor with Class F electrical insulation for long-term safety.
FEATURES
- Cast iron EN-GJL 250 pump body and motor casing provide structural stability in permanent collection pits.
- Automatic start/stop functionality managed by an integrated float switch for unattended management of water levels.
- Vortex impeller design provides 50 mm free passage.
- Shaft sealing uses a double system with two silicon carbide mechanical seals in an oil chamber for motor protection.
- 1.5 kW motor reaches approximately 15.3 m head while drawing 10 Amps for floodwater drainage.
- 80 µm bi-epoxy coating provides durability in soiled water service.
- In-built thermal protector and capacitor safeguard the winding from damage during demanding automated run cycles.
- Standard 10-meter H07RN-F power cable and Shuko plug allow for immediate stationary installation in deep wells.
Model: ZEN-DGBLUEP200/2/G50VMGEX
