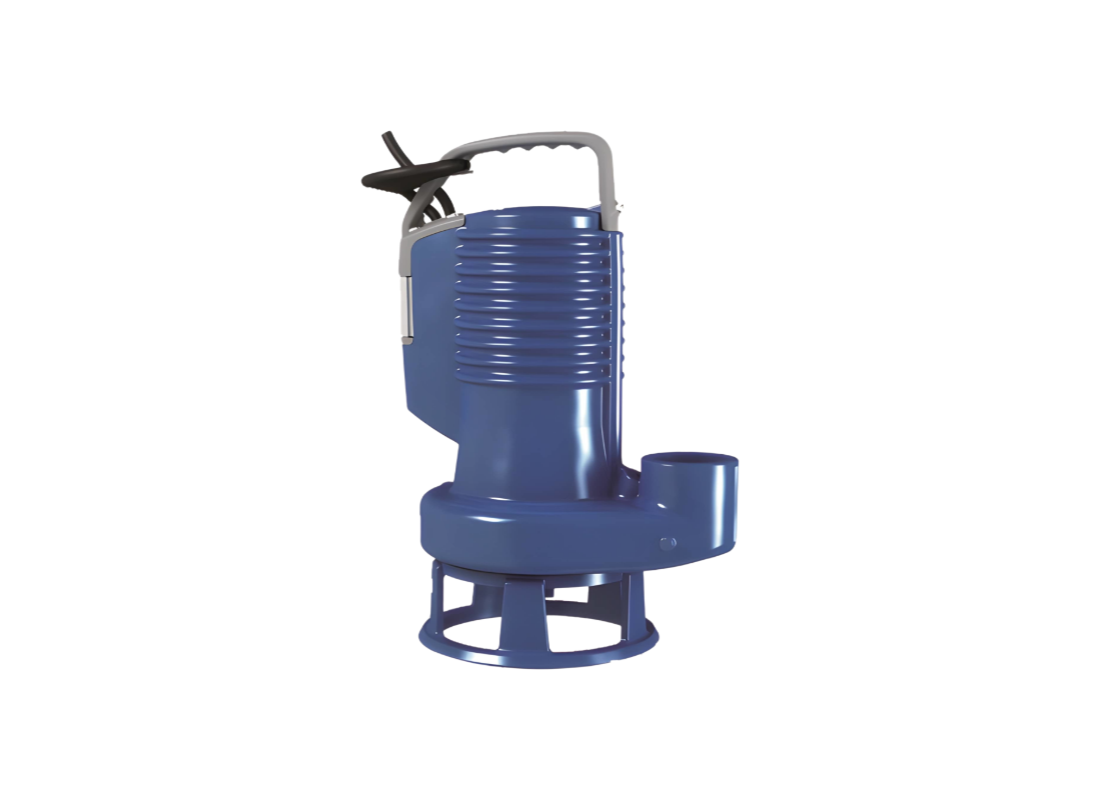

Zenit DG BluePRO 200/2/G50V A1CM5 Cast Iron Drainage Pump for Commercial Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Service duties for this manual submersible unit include industrial wastewater lifting and the transfer of soiled liquids in commercial stations. It handles liquid temperatures up to 40°C and is engineered for fixed vertical installation in deep collection wells. The manual configuration is designed for installations where pumping cycles are managed by an external control panel.
Performance for the 1.5 kW motor includes flow rates of up to 690 L/Min and a total manometric head of approximately 15.3 m. Drawing a rated current of 10 Amps on a single-phase 240 V supply, the system is protected by 10 meters of submersible power cable. The air-filled 2-pole induction motor operates at approximately 2750 rpm and features Class F electrical insulation.
The hydraulic system utilizes a vortex impeller with 50 mm free passage through the pump. This configuration ensures efficient movement of dirty water through the discharge port. It is optimized for high-volume transfer in systems where solids are present.
Materials include a cast iron EN-GJL 250 pump body and motor casing paired with an AISI 420 stainless steel shaft. Protection is managed by two silicon carbide mechanical seals in an intermediate oil chamber featuring a bi-epoxy 80 µm coating. The rotating assembly utilizes sealed ball bearings and includes an in-built thermal protector and capacitor for motor safety.
FEATURES
- Cast iron EN-GJL 250 construction for the pump frame and body provides durability in permanent duty.
- Vortex impeller configuration provides 50 mm free passage.
- Two silicon carbide mechanical shaft seals in an oil-lubricated chamber safeguard the dry induction motor.
- 1.5 kW motor draws 10 Amps to deliver 690 L/Min flow for high-volume wastewater stations.
- 80 µm bi-epoxy coating provides resistance to corrosion in wastewater environments.
- Ball bearings support the rotating assembly for stable mechanical behavior during 2750 rpm run cycles.
- In-built thermal protector and capacitor safeguard the single-phase motor from damage during high-load tasks.
- Extended 10-meter submersible power cable allows for secure vertical installation in deep collection wells.
Model: ZEN-DGBLUEP200/2/G50VMEX
SPECIFICATIONS
| Max Flow | 690 L/Min |
| Max Head | 15.3 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10 Amps |
| Suitable For | Industrial Wastewater |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor features support its operating requirements?
A 1.5 kW motor drives DG_BluePRO_200_2_G50V_A1CM5, with thermal protection guarding the winding against overheating during demanding drainage cycles in collection wells.
What cable or installation details are supplied?
The supplied 10 m submersible cable on DG BluePRO 200 2 G50V A1CM5 supports connection for fixed installation in collection wells or sumps.
How does the impeller manage solids in wastewater?
The vortex impeller with 50 mm free passage in DG-BluePRO-200-2-G50V-A1CM5 allows suspended material to pass through the hydraulic section during wastewater pumping.
Which construction features protect the motor during pumping?
The two silicon carbide mechanical seals in an oil-lubricated chamber and 80 µm bi-epoxy coating on DG/BluePRO/200/2/G50V/A1CM5 help protect the motor from pumped liquid.
What are the maximum flow and head ratings?
The DG BluePRO 200 2 G50V A1CM5 delivers a maximum flow of 690 L/Min and an approximate total manometric head of 15.3 m, supporting high-volume wastewater transfer.
