SKU: 711189

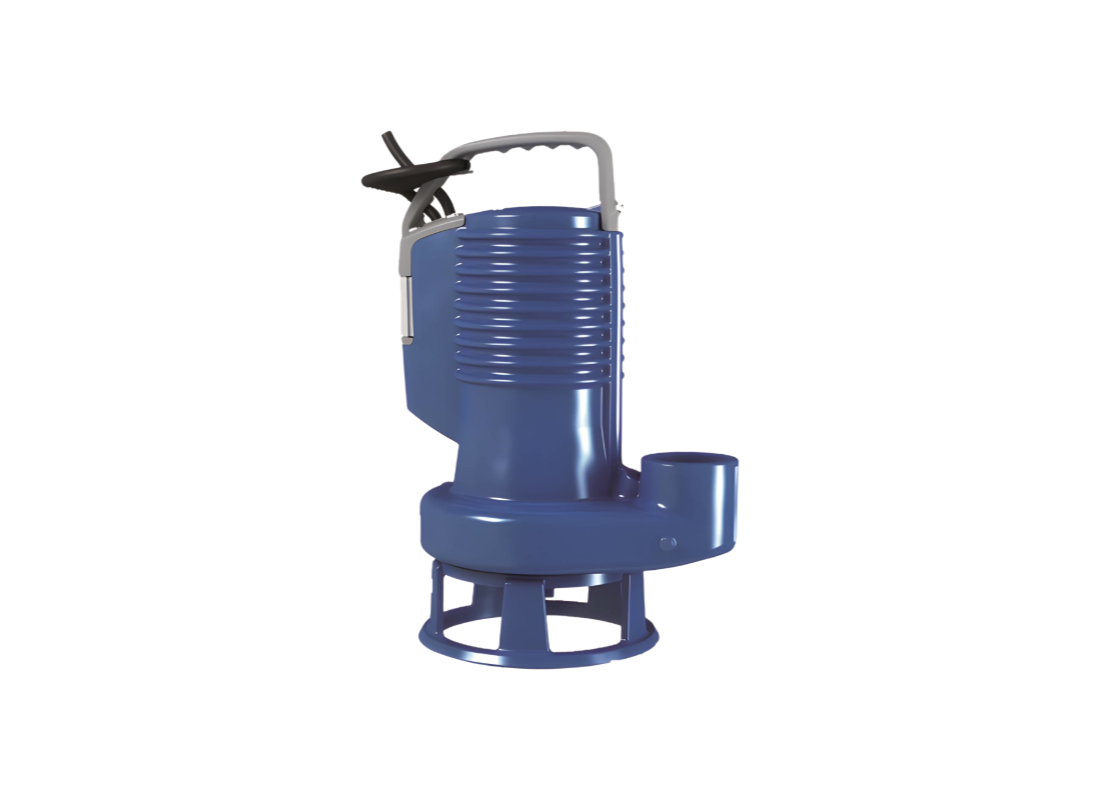

Zenit DG BluePRO 200/2/G50V A1CT5 Cast Iron Direct Start Submersible Pump for Industrial Drainage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Engineered for wastewater lift stations and the transfer of soiled liquids in commercial systems, this vertical unit handles temperatures reaching 40°C. It is rated for continuous S1 service and is designed for stationary installation in collection stations. The manual configuration requires an external three-phase supply and control panel for start and stop management.
Hydraulic output for the 1.5 kW motor includes flow rates of up to 690 L/Min and reaching a total manometric head of approximately 15.3 m. Operating on a three-phase 415 V supply, the unit draws a rated current of 4.3 Amps. The air-filled 2-pole dry induction motor is supplied with 10 meters of submersible power cable.
The hydraulic system utilizes a vortex impeller with 50 mm free passage through the pump. This configuration ensures efficient movement of soiled liquids through the discharge port. It is ideal for industrial lift stations where solids are present.
Materials include a cast iron EN-GJL 250 pump body and motor frame with AISI 420 stainless steel for the shaft. Protection is managed by two silicon carbide mechanical seals in an intermediate oil chamber featuring a bi-epoxy coating. The assembly is secured with A2-70 stainless steel screws and features Class F motor insulation for safe submerged duty.
FEATURES
- Cast iron EN-GJL 250 construction ensures structural longevity in permanent industrial wells.
- Vortex impeller configuration provides 50 mm free passage.
- Two silicon carbide mechanical shaft seals isolated by an oil chamber prevent fluid ingress to the dry induction motor.
- Three-phase 415 V motor draws 4.3 Amps while delivering high-volume 690 L/Min flow for industrial lift stations.
- Bi-epoxy 80 µm coating provides durability against corrosive elements found in liquids.
- Ball bearings support the rotating assembly for stable mechanical behavior at 2818 rpm.
- AISI 420 stainless steel shaft and Class A2-70 fasteners provide structural stability.
- Supplied with a 10-meter industrial power cable suitable for vertical installations at depths reaching 20 meters.
Model: ZEN-DGBLUEP200/2/G50VTEX
SPECIFICATIONS
| Max Flow | 690 L/Min |
| Max Head | 15.3 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.3 Amps |
| Suitable For | Wastewater Lift Stations |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical supply does this model require?
The DG_BluePRO_200_2_G50V_A1CT5 requires a three-phase 415 V supply with a rated current of 4.3 A; match the site connection before installation.
What cable or installation details are supplied?
The supplied 10 m submersible cable on DG BluePRO 200 2 G50V A1CT5 supports connection for fixed installation in collection wells or sumps.
Which construction features protect the motor during pumping?
The two silicon carbide mechanical seals in an oil chamber and bi-epoxy coating on DG-BluePRO-200-2-G50V-A1CT5 help protect the motor from pumped liquid.
How does the impeller manage solids in wastewater?
The vortex impeller with 50 mm free passage in DG/BluePRO/200/2/G50V/A1CT5 allows suspended material to pass through the hydraulic section during wastewater pumping.
What motor features support its operating requirements?
The 1.5 kW motor in DGBluePRO2002G50VA1CT5 drives the pump, while built-in thermal protection guards the winding against overheating during demanding drainage cycles.
