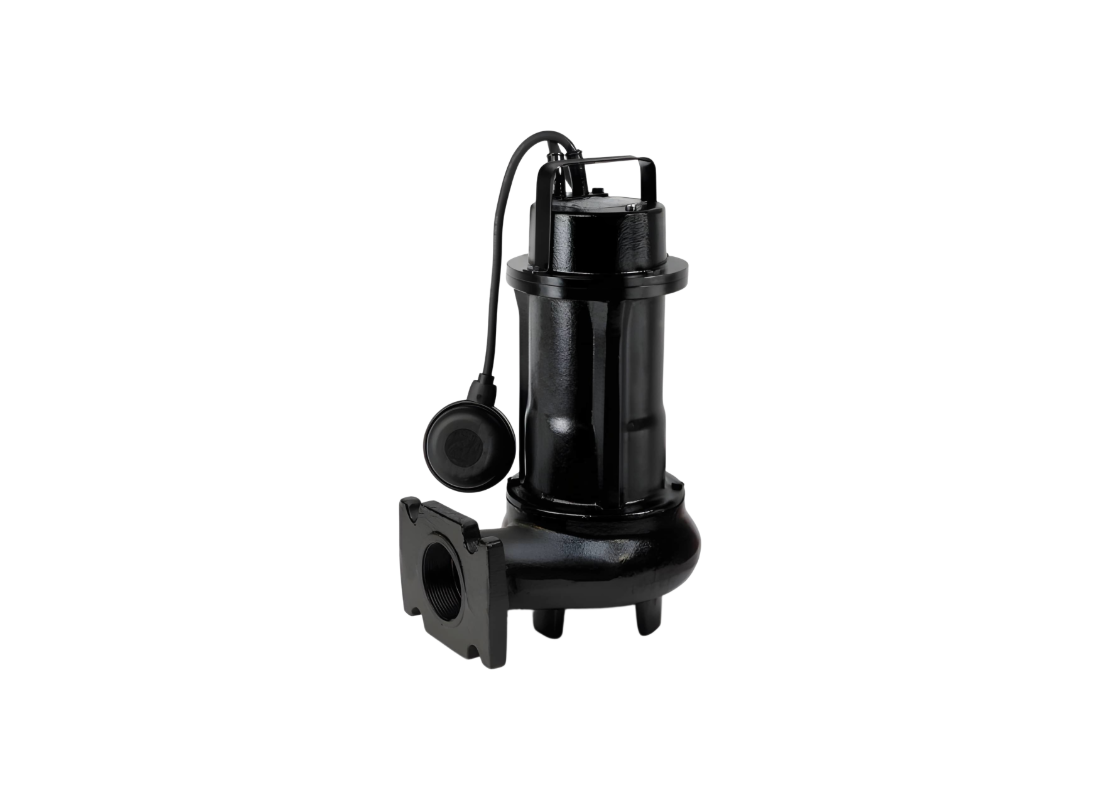

Zenit DGE50/2/G50HMGSIC Cast Iron 0.37 kW Sewage Pump for Domestic Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Ideally suited for residential sewage disposal and wastewater handling, this compact submersible pump provides a reliable solution for household septic pits. It is designed to manage sewage and wastewater where space is limited but effective fluid movement is critical. The unit operates efficiently when submerged in collection sumps or small household basins.
Providing a maximum flow rate of up to 240 L/Min, this pump is optimized for consistent performance in domestic transfer tasks. It generates a maximum head of approximately 6 m, utilizing an efficient 0.37 kW electric motor that runs on standard 240v single-phase power. These performance characteristics make it suitable for residential sewage transfer and wastewater disposal applications.
Liquid handling is managed by a set-back vortex impeller that creates a 40 mm free passage for organic solids and sediment. By maintaining an open flow path through the pump housing, the vortex design prevents clogging and reduces the mechanical strain on the motor when dealing with wastewater. This hydraulic design maintains reliable wastewater handling while minimizing the risk of clogging during normal operation.
The pump features a compact EN-GJL 250 cast iron body that provides high structural strength and long-term reliability in wet installations. Mechanical protection is provided by a dual sealing system including a silicon carbide seal and lip seal. The motor features integrated thermal protection and a float switch for automatic level control up to 40°C.
FEATURES
- Compact EN-GJL 250 cast iron construction provides strength for residential wastewater applications.
- Set-back Vortex impeller with 40 mm free passage handles sewage and organic solids efficiently.
- Integrated float switch enables automatic level control in wastewater pits.
- Built-in thermal protection helps prevent motor overheating.
- Silicon carbide mechanical seal with auxiliary lip seal protects against liquid ingress.
- AISI 431 stainless steel shaft provides excellent corrosion resistance and durability.
- 10 m power cable with integrated starting capacitor simplifies installation.
- 120 µm bi-epoxy coating improves corrosion resistance in sewage environments.
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 6 m |
| Power | 0.37 kW / 240v |
| Rated Current | 2.8 Amps |
| Suitable For | Dirty Water Drainage |
| Body Material | Cast iron - EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What wastewater applications suit this pump's design?
For domestic sewage and slightly dirty wastewater, DGE50_2_G50HMGSIC transfers wastewater from collection sumps and drainage systems across intended service settings.
What electrical configuration powers this pump during normal operation?
A 0.37 kW motor uses 240 V single-phase supply in DGE50 2 G50HMGSIC, with vortex hydraulics and mechanical sealing for submerged service.
How are solids processed before the liquid is discharged?
A set-back vortex impeller in DGE50-2-G50HMGSIC moves wastewater containing suspended solids through a 40 mm passage for domestic sewage duties.
What maximum flow and head can this model reach?
DGE50/2/G50HMGSIC has maximum flow of 240 L/Min and amaximum headrating of 6 m for hydraulic selection.
What construction details support submerged pump operation?
The casing is Cast Iron EN-GJL 250, and DGE502G50HMGSIC pairs it with an AISI 431 stainless steel shaft and mechanical seals.
