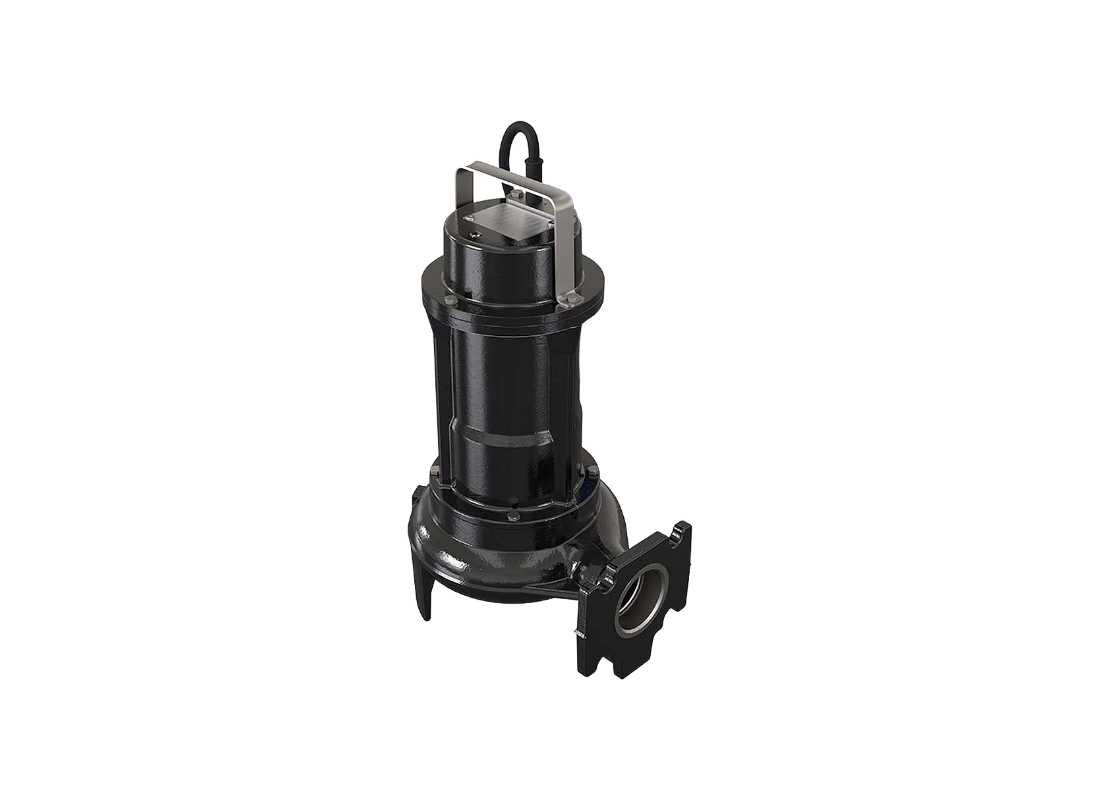

Zenit DGE75/2/G50HMSIC A1 Cast Iron Submersible Drainage Pump for Residential Sewage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Domestic plumbing infrastructure and residential septic systems benefit greatly from the ZEN-DGE75/2/G50HMSIC vortex pump. Its engineering is optimized for pumping slightly soiled water, biological effluent, and raw domestic sewage in civil installations.
Equipped with a single-phase 240V electric motor, this ZEN-DGE75/2/G50HMSIC pump provides consistent flow performance. The hydraulic curve yields a maximum flow of 360 L/min and a maximum head of 8.1 metres, operating up to a pressure of 0.81 bar.
Liquid containing suspended particulates is managed smoothly via the ZEN-DGE75/2/G50HMSIC vortex hydraulic mechanism, which handles soft solids up to 40mm. The physical connection is established through a horizontal 2" BSPF female outlet port.
Delivered without an attached float switch, the ZEN-DGE75/2/G50HMSIC allows for custom integration with external liquid-level sensors or automated building management systems. A standard 2-year Zenit manufacturer warranty is provided with the model.
FEATURES
- Manual operation configuration making this model ideal for multi-pump alternating controllers.
- Vortex flow design facilitating steady high fluid volume transfer with minimal impeller deterioration.
- Double mechanical seal barrier protecting delicate internal electric elements from liquid exposure.
- Reinforced motor casing designed specifically for continuous underwater operation in sump environments.
- Wide free passage hydraulic casing preventing clogging from fibrous biological materials.
- Standardised 2-inch BSPF female horizontal discharge port for clean system connection.
- Efficient thermal cooling design utilizing surrounding fluid medium for motor temperature regulation.
SPECIFICATIONS
| Max Flow | 360 L/Min |
| Max Head | 8.1 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.6 Amps |
| Suitable For | Biological Waste Sump |
| Body Material | Cast Iron |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the hydraulic system handle fibrous solids?
A set-back vortex impeller in DGE75_2_G50HMSIC_A1 moves wastewater containing suspended solids through a 40 mm passage for domestic sewage duties.
Which liquids and drainage duties can this model handle?
For domestic sewage and slightly dirty wastewater, DGE75 2 G50HMSIC A1 transfers wastewater from collection sumps and drainage systems across intended service settings.
How is the motor configured for safe operation?
The motor uses 240 V single-phase supply in DGE75-2-G50HMSIC-A1, with vortex hydraulics and mechanical sealing for submerged service.
Which materials form the casing and rotating shaft?
The casing is Cast Iron EN-GJL 250, and DGE75/2/G50HMSIC/A1 pairs it with an AISI 431 stainless steel shaft and mechanical seals.
Which maximum flow and head values apply to this pump?
DGE752G50HMSICA1 has maximum flow of 360 L/Min and amaximum headrating of 8.1 m for hydraulic selection.
