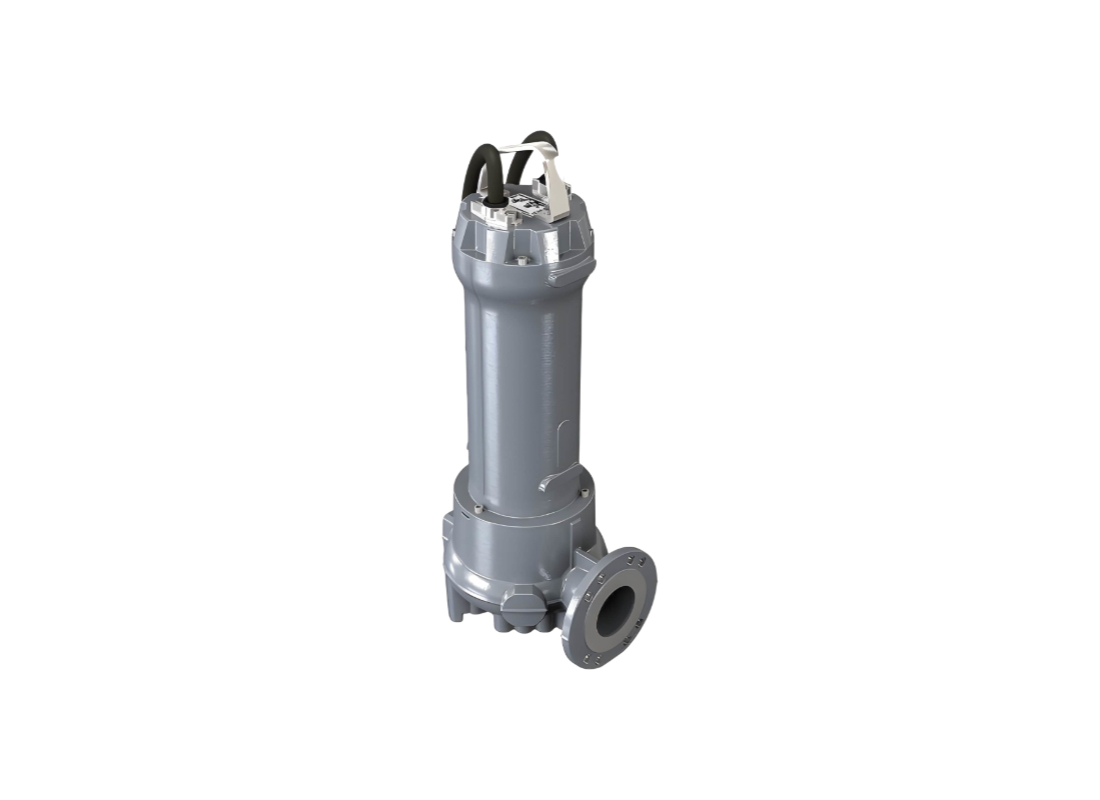

Zenit DGG1000/2/80HA0FTEX Cast Iron ATEX Submersible Pump for Sewage Treatment Plants with Vortex Impeller

For large-scale sewage treatment plants, this submersible vortex pump is a preferred solution for municipal sewer systems and intensive livestock farming duties. It provides high-capacity liquid management in professional environments where the reliable transfer of wastewater containing large solids is mandatory. The unit is optimized for heavy-duty service in public and private infrastructure requiring continuous wastewater handling.

Pumping capability is provided by a 7.5 kW motor configured for a 415v three-phase supply, delivering dependable discharge performance across high-volume cycles. This model achieves a maximum flow of approx 2190 L/Min and reaches a maximum vertical head upto 20.8 m. These parameters ensure effective wastewater handling capability in demanding scenarios where high flow and discharge head are required simultaneously.

The hydraulic design utilizes a set-back vortex impeller to create a powerful rotational vortex within the casing. This design helps reduce the risk of clogging by ensuring that solids and fibrous filaments pass through the pump body without making constant contact with moving parts. This action maintains reliable hydraulic performance even when handling unscreened liquids and industrial waste.

Constructed from Cast iron EN-GJL 250, the pump incorporates a stainless steel AISI 431 shaft and double mechanical seals in silicon carbide (2SiC). A 200 µm bi-epoxy coating protects exposed surfaces against abrasive operating environments, while ATEX certification permits installation in Zone 1 hazardous atmosphere locations.

FEATURES

• 80 mm free passage optimized for the transfer of soiled liquids and sewage containing large solids.
• Type DG set-back vortex hydraulic configuration for consistent liquid movement in polluted environments.
• 2-pole motor with Class H insulation and IP68 protection for continuous submerged service.
• Double mechanical seals in silicon carbide (2SiC) housed in an inspectable oil chamber for motor protection.
• ATEX certified (Ex db IIB T4 Gb) for safe operation in regulated hazardous areas with potentially explosive gas.
• High mechanical strength AISI 431 stainless steel drive shaft for reliable rotational performance.
• 200 µm bi-epoxy coating offering high resistance to sea water and aggressive waste.
• 10 m main power cable with a universal GAS thread gland to protect against chemical or physical damage.
