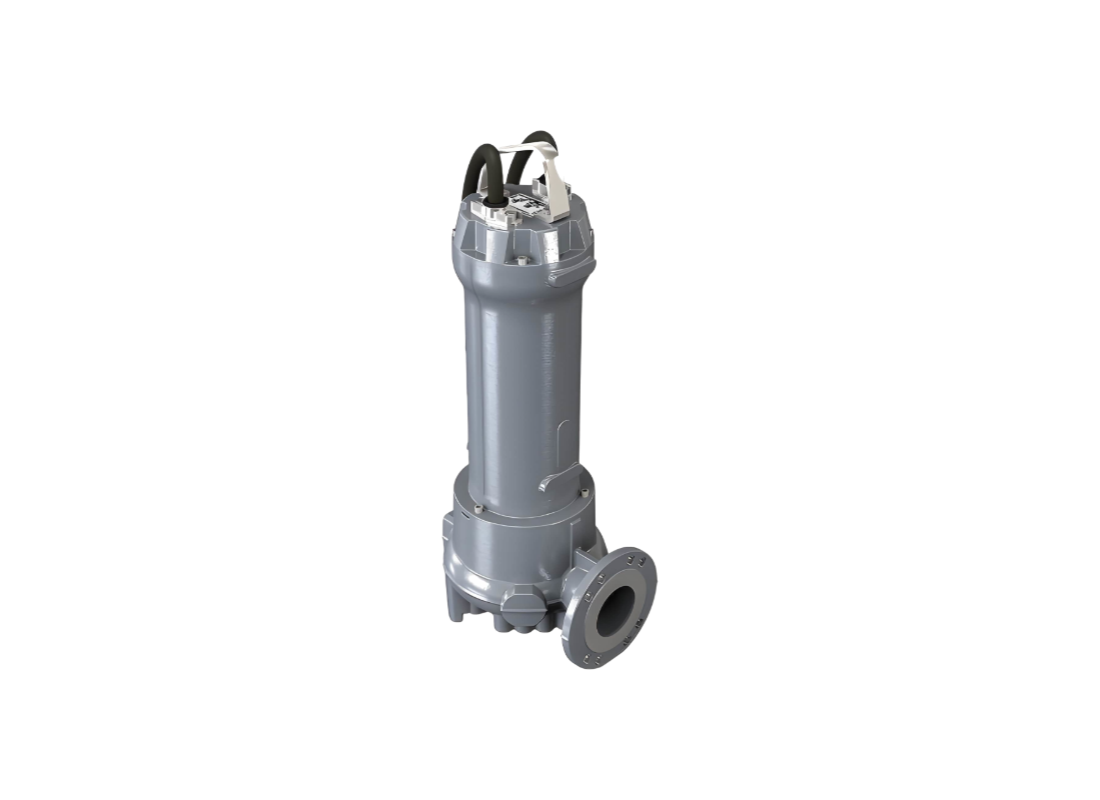

Zenit DGG300/4/80HE0ETEX Cast Iron ATEX Submersible Pump for Heavily Soiled Wastewater with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Optimized for handling heavily soiled wastewater and industrial drainage systems, this robust submersible pump is built for professional liquid management. It is a preferred choice for stormwater management, civil lifting stations, and commercial drainage where high solid content is present. The unit's design ensures efficient wastewater transfer through complex civil and industrial systems.
The motor delivers 2.2 kW of power rated for 415v, providing steady liquid movement across its four-pole configuration for constant drainage management. It achieves a maximum vertical head approx 11.0 m and maintains a flow capacity upto 1386 L/Min. These parameters provide effective pumping capability during peak demand periods in commercial and industrial systems.
Integration of a set-back vortex impeller helps reduce the risk of clogging by allowing solids and filaments to bypass the rotating parts. By creating a powerful centrifugal vortex, the hydraulic configuration moves polluted liquids without material making constant contact with the impeller vanes. This reduces mechanical stress and prolongs the service life of the hydraulic components.
Constructed from Cast iron EN-GJL 250, the casing and motor housing are treated with a 200 µm bi-epoxy coating for durability in abrasive operating environments. The internal drive system features an AISI 431 stainless steel shaft and double mechanical seals in silicon carbide (2SiC). ATEX certification ensures the unit is suitable for hazardous area installations where explosive gases may be present.
FEATURES
- Vortex hydraulic configuration provides exceptional solids handling capability in heavily soiled wastewater environments.
- Efficient 4-pole motor with Class H insulation and IP68 protection for constant liquid transfer.
- Cast iron EN-GJL 250 construction for the motor casing and pump body designed for abrasive operating environments.
- High mechanical strength AISI 431 stainless steel drive shaft provides resistance to corrosive industrial effluents.
- Double mechanical seals in silicon carbide (2SiC) ensure the motor remains dry during continuous submerged operation.
- Full ATEX certification (Ex db IIB T4 Gb) for deployment in hazardous zones with flammable gas or explosive risk.
- 200 µm bi-epoxy coating protects critical surfaces from aggressive chemical agents.
- GAS thread power cable gland allows for secure installation and protection against physical damage.
SPECIFICATIONS
| Max Flow | 1386 L/Min |
| Max Head | 11 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5.2 Amps |
| Suitable For | Heavily Soiled Wastewater |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kinds of wastewater can this pump transfer?
For heavily soiled wastewater, DGG300_4_80HE0ETEX provides vortex pumping for stormwater management, civil lifting stations and commercial drainage systems in wastewater systems.
Which motor and power supply are specified?
The 2.2 kW motor in DGG300 4 80HE0ETEX operates on 415 V for professional drainage and wastewater transfer for professional pumping.
How much flow and head are available?
DGG300-4-80HE0ETEX provides a maximum flow of 1386 L/Min and a maximum head of 11.0 m through its 80 mm discharge.
What protects the unit during submerged service?
Double silicon carbide seals protect DGG300/4/80HE0ETEX from liquid ingress, and its AISI 431 stainless steel shaft resists corrosion during submerged service.
Which cable gland connection is fitted to protect the power lead?
The GAS-thread cable gland protects the power connection on DGG300480HE0ETEX, which also carries ATEX certification Ex db IIB T4 Gb.
