SKU: 807394

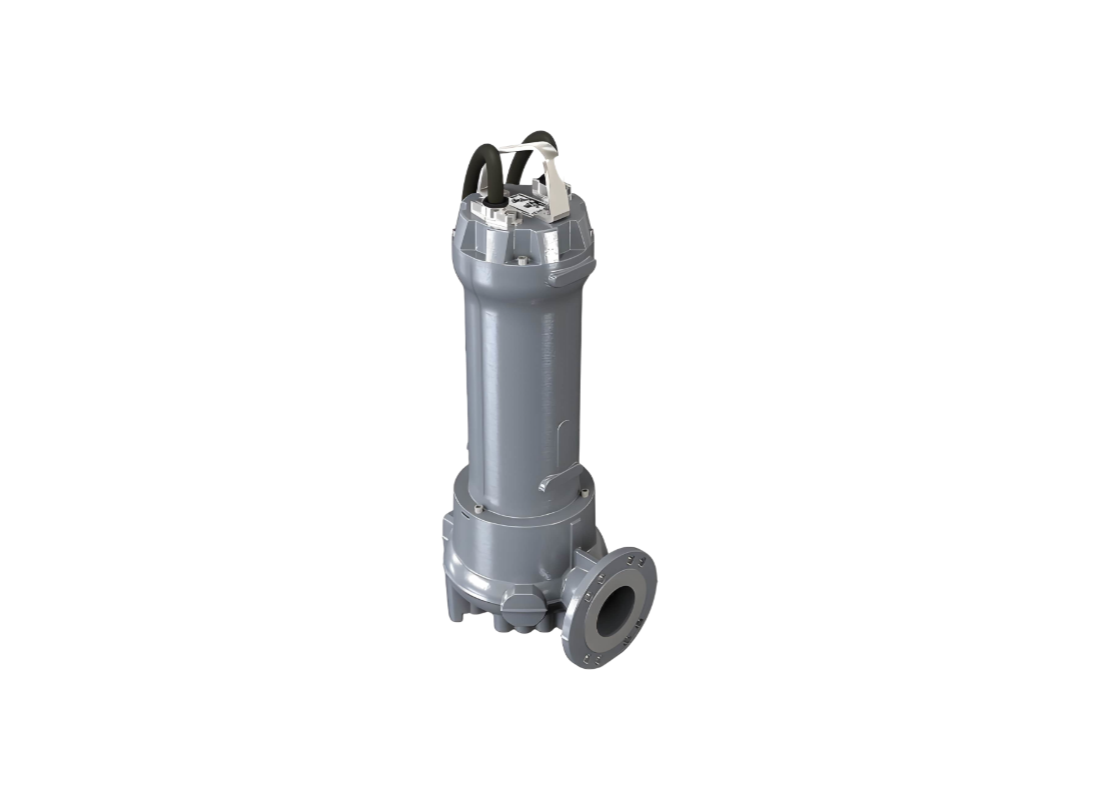

Zenit DGG550/2/80HN0FTEX Cast Iron ATEX Submersible Pump for Solids Handling Sewage with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Tackle solids handling sewage with this professional-grade submersible vortex pump, designed for heavy-duty municipal and industrial liquid management. It provides reliable liquid movement for the transfer of soiled liquids in wastewater treatment plants and sewer networks. The unit delivers exceptional service in environments where liquids contain high concentrations of suspended solids and fibrous filaments.
Pumping capability is driven by a high-output 4 kW motor configured for 415v three-phase supply, delivering dependable discharge performance for demanding duties. It achieves a maximum vertical head approx 16.3 m and maintains a flow capacity upto 1386 L/Min. These specifications ensure the pump manages significant lifting requirements in complex wastewater management systems.
The hydraulic configuration utilizes a set-back vortex impeller to create a powerful rotational vortex within the housing. This design helps reduce the risk of clogging by maintaining an open passage for solid materials to pass through the pump body without making constant contact with moving parts. This vortex action maintains high flow rates even when handling heavily polluted wastewater.
Constructed from Cast iron EN-GJL 250, the pump incorporates a stainless steel AISI 431 shaft and double mechanical seals in silicon carbide (2SiC). A 200 µm bi-epoxy coating protects exposed surfaces against abrasive operating environments, while ATEX certification permits installation in hazardous atmosphere locations.
FEATURES
- Type DG set-back vortex hydraulic configuration ensures wide free passage for solids and filaments in polluted wastewater.
- 2-pole motor with Class H insulation and IP68 protection for reliable high-speed operation.
- Cast iron EN-GJL 250 construction for the motor casing and pump body ensures long-term structural durability.
- Double mechanical seals in silicon carbide (2SiC) housed in an inspectable oil chamber for motor protection.
- ATEX compliant (Ex db IIB T4 Gb) for safe operation in regulated hazardous areas with explosive gas.
- High mechanical strength AISI 431 stainless steel drive shaft for resistance to corrosive liquids.
- 200 µm bi-epoxy coating offering high resistance to aggressive industrial effluents and sea water.
- Universal GAS thread cable gland protects the 10 m power cable from chemical or physical damage.
SPECIFICATIONS
| Max Flow | 1386 L/Min |
| Max Head | 16.3 m |
| Power | 4 kW / 415v |
| Rated Current | 7.7 Amps |
| Suitable For | Solids Handling Sewage |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of wastewater service is this pump designed for?
Wastewater treatment plants and sewer networks suit DGG550_2_80HN0FTEX, designed to transfer heavily soiled liquids containing solids and fibrous filaments in wastewater systems.
Which motor output and supply are specified?
A 4 kW motor on a 415 V three-phase supply powers DGG550 2 80HN0FTEX for municipal wastewater handling for professional pumping.
What are the maximum hydraulic ratings for this drainage pump?
DGG550-2-80HN0FTEX reaches a maximum flow of 1386 L/Min and a maximum head of 16.3 m through its 80 mm discharge.
How are seals and cable entry protected?
Double silicon carbide seals sit in an inspectable oil chamber on DGG550/2/80HN0FTEX, while a GAS-thread gland protects its 10 m power cable.
Which coating supports use in aggressive liquids?
An inspectable oil chamber houses the double silicon carbide seals on DGG550280HN0FTEX, protecting the motor during submerged service for wastewater installations.
