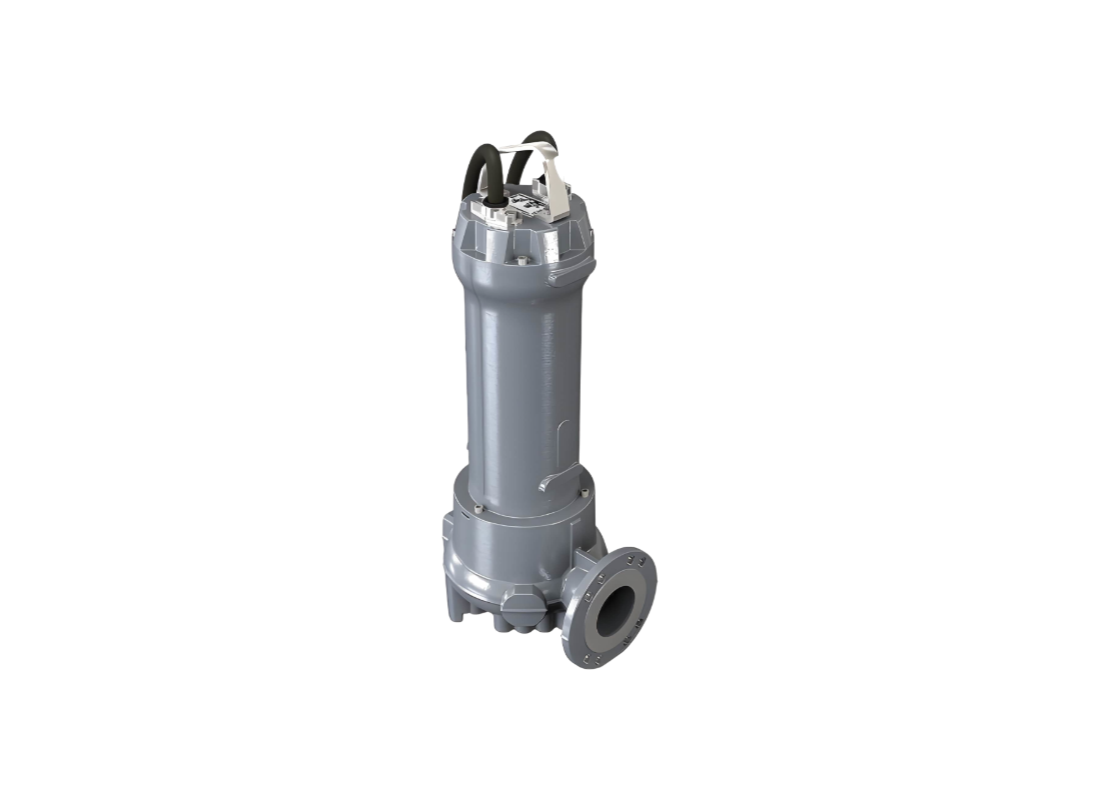

Zenit DGG750/2/80HA0FTEX Cast Iron ATEX Submersible Pump for Wastewater Lift Stations with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
This professional submersible vortex pump is designed for wastewater lift stations and industrial and municipal wastewater applications. It transfers heavily soiled liquids in municipal infrastructure, livestock farms, and industrial wastewater treatment plants. The design provides hydraulic capacity in demanding environments with significant solid content.
Pumping capability is provided by a 5.5 kW motor configured for 415v, delivering consistent liquid movement for professional drainage duties. It achieves a maximum vertical head upto 16.1 m and maintains a maximum flow capacity approx 1680 L/Min. These metrics ensure reliable wastewater transfer in critical lifting and industrial infrastructures where high flow and discharge head are required.
The hydraulic design utilizes a specialized set-back vortex impeller to facilitate the passage of solids through centrifugal action. This design helps reduce the risk of clogging by ensuring that sewage and fibrous solids are moved away from the impeller center. This configuration maintains stable hydraulic performance even when handling heavily polluted soiled liquids.
Features Cast iron EN-GJL 250 construction for the primary casing and motor housing, providing a robust exterior resistant to abrasive operating environments. The drive assembly uses an AISI 431 stainless steel shaft and double mechanical seals in silicon carbide (2SiC). ATEX certification ensures the unit is compliant for installation in hazardous atmosphere locations.
FEATURES
- Set-back vortex impeller design creates an efficient flow path for solids and biological matter.
- 2-pole motor with Class H insulation and IP68 protection for continuous submerged service in industrial environments.
- Cast iron EN-GJL 250 construction for structural durability and weight for stability in lift stations.
- High mechanical strength AISI 431 stainless steel drive shaft for reliable rotational performance.
- Double mechanical seals in silicon carbide (2SiC) provide high-integrity motor protection in an inspectable oil chamber.
- ATEX compliant (Ex db IIB T4 Gb) for safe deployment in hazardous zones with potentially explosive gas.
- 200 µm bi-epoxy coating protects critical surfaces from aggressive wastewater environments.
- Specialized GAS thread cable gland to protect the power lead from chemical or mechanical damage.
SPECIFICATIONS
| Max Flow | 1680 L/Min |
| Max Head | 16.1 m |
| Power | 5.5 kW / 415v |
| Rated Current | 10.8 Amps |
| Suitable For | Wastewater Lift Stations |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which wastewater facilities are suitable for this pump?
For high-capacity sewage transfer, DGG750_2_80HA0FTEX handles heavily soiled liquids in municipal infrastructure, livestock farms and industrial treatment plants in wastewater systems.
What motor power and supply does it use?
A 5.5 kW motor on a 415 V supply powers DGG750 2 80HA0FTEX for professional wastewater duties for professional pumping.
What flow and head ratings are provided?
DGG750-2-80HA0FTEX provides a maximum flow of 1680 L/Min and a maximum head of 16.1 m for wastewater drainage through the stated discharge.
Which seal arrangement protects the motor during submerged operation?
Double silicon carbide mechanical seals in an inspectable oil chamber protect DGG750/2/80HA0FTEX during submerged hazardous-wastewater pumping for regulated hazardous installations.
What certification is specified for hazardous environments?
A specialized GAS-thread cable gland protects the power lead on DGG750280HA0FTEX against chemical or mechanical damage at the installation site.
