SKU: 711231

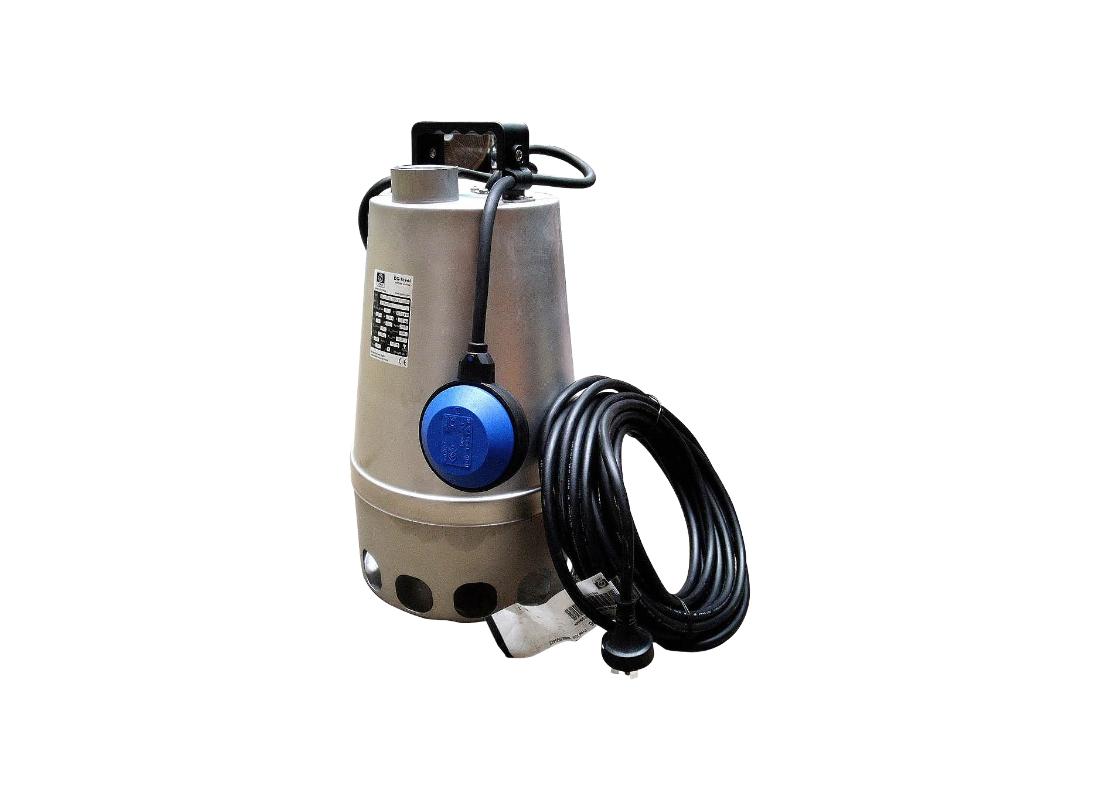

Zenit DGSTEEL55MA Stainless Steel Automatic Drainage Pump for Sewerage Treatment with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Sewerage plants, agricultural livestock farms, and industrial car wash facilities utilize the ZEN-DGSTEEL55MA for rugged drainage duties. This automatic steel pump is specifically designed to manage stormwater and diverse hydro-sanitary drainage requirements.
Engineered with a 0.55kW (0.75hp) motor operating on single-phase 240V electricity, the ZEN-DGSTEEL55MA produces substantial hydraulic force. The operating specifications feature a maximum head of 8.1 metres and a maximum flow rate of 330 L/min at 0.81 bar.
Heavy solid handling in the ZEN-DGSTEEL55MA is supported by an open vortex design, allowing the safe passage of suspended particulates up to 38mm. The discharge layout utilizes a standard 1 1/2" BSPF female threaded outlet port for solid plumbing.
Self-regulation of the ZEN-DGSTEEL55MA is achieved via an integrated float switch, enabling automated start-up and shutdown cycles as the water table fluctuates. A 2-year factory warranty covers the entire mechanical assembly.
FEATURES
- Rugged chrome-nickel steel AISI 304 lifting handle and impeller structure resisting hydraulic wear.
- Advanced triple sealing arrangement containing double SiC-Al seals inside a protected oil chamber.
- Lubricated oil sump filled with non-toxic, eco-friendly food-grade lubricating oil for seals.
- Chrome-nickel steel AISI 304 suction strainer with large maximum free passage clearance up to 40mm.
- Internal recycled liquid cooling jacket protecting motor windings during shallow fluid drainage runs.
- Pre-wired mechanical float control switch enabling standalone automatic self-regulating operation.
- One-and-a-half inch BSPF female threaded horizontal discharge port matching standard pipe fittings.
SPECIFICATIONS
| Max Flow | 330 L/Min |
| Max Head | 8.1 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.3 Amps |
| Suitable For | Livestock Farm Wastewater |
| Body Material | Stainless Steel |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Where is this pump intended to transfer wastewater?
For stormwater, hydro-sanitary drainage and wastewater, DGSTEEL55MA transfers wastewater from collection sumps and drainage systems across agricultural and commercial drainage settings.
Which motor supply and protection features does it use?
A 0.55 kW motor uses 240 V single-phase supply in DGSTEEL55MA, with an integrated float switch for automatic level control for submerged service.
What impeller or cutting arrangement manages solid waste?
The vortex impeller and strainer in DGSTEEL55MA pass suspended solids up to 38 mm while screening incoming debris during drainage.
What are the pump's maximum flow and head ratings?
DGSTEEL55MA has maximum flow of 330 L/Min and amaximum headrating of 8.1 m for hydraulic selection.
Which materials form the casing and rotating shaft?
The casing is Cast Iron EN-GJL 250, and DGSTEEL55MA pairs it with an AISI 431 stainless steel shaft and mechanical seals.
