SKU: 800343

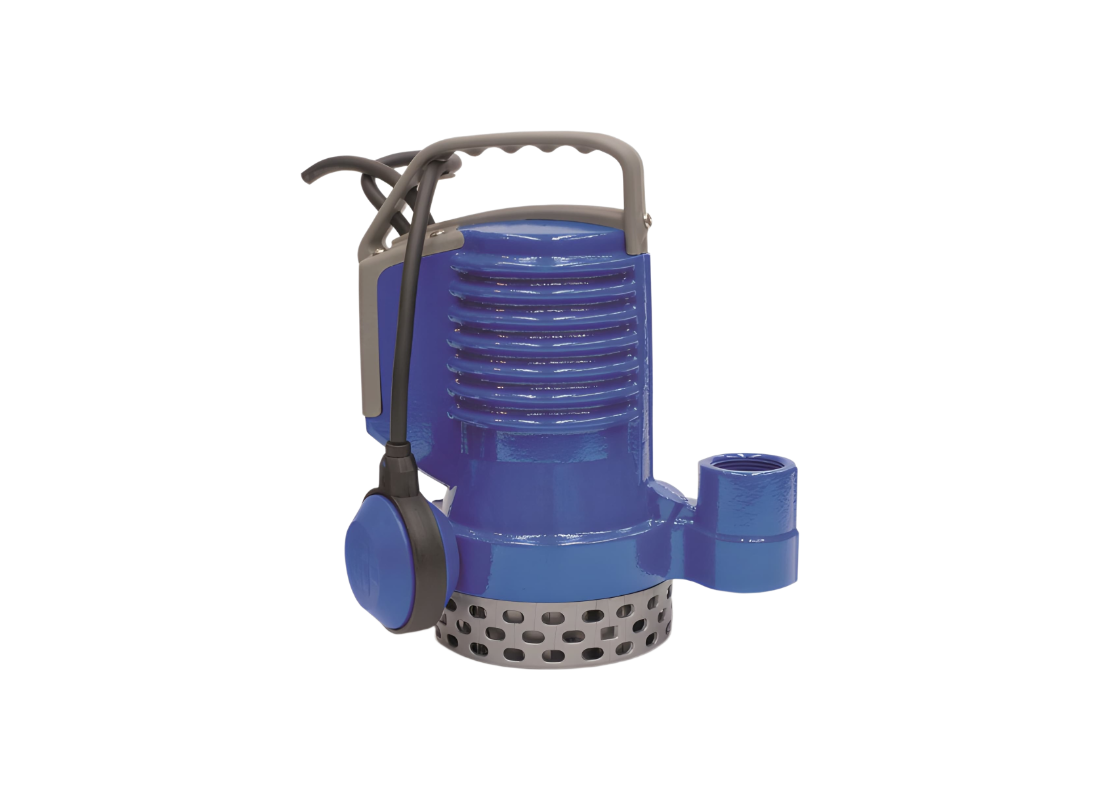

Zenit DRBLUE100/2/G32VMGEX Cast Iron 0.74kW Submersible Drainage Pump for Slightly Dirty Water with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Domestic slightly dirty water management requires a dependable submersible solution capable of clearing rainwater and seepage from sumps or underground collection points. This Zenit model is designed to handle lightly soiled liquids in residential environments, ensuring efficient transfer of slightly dirty water through household drainage systems. Its wet installation design allows it to operate continuously in residential drainage applications where reliability is paramount.
Hydraulic capability for this unit includes a maximum flow of up to 330 L/Min and a maximum head of approximately 14 m. The 0.75 kW motor is optimized for 240v single-phase power, providing stable hydraulic performance for rapid evacuation of storage tanks. This balance of power and lift makes it an effective choice for domestic drainage tasks requiring efficient turnover.
The hydraulic design features an open channel impeller, specifically configured to manage slightly dirty water. This configuration facilitates smooth liquid handling and helps prevent blockages from small suspended solids common in residential drainage. The submerged installation assists motor cooling during continuous operation, supporting reliable performance during intensive duty cycles.
Mechanical construction features a rugged cast iron EN-GJL 250 body and a stainless steel shaft for superior durability in corrosive wet environments. It utilizes a dual mechanical seal system involving silicon carbide and alumina graphite for enhanced motor protection against moisture ingress. The unit is rated for liquid temperatures up to 40°C and includes an integrated float switch for automatic, hands-off operation.
FEATURES
- Open channel impeller designed for efficient handling of domestic slightly dirty water and seepage.
- Cast iron EN-GJL 250 construction provides robust structural support and corrosion resistance.
- IECEx Zone 2 certified motor enclosure for safe operation in potentially hazardous atmospheres.
- Double mechanical seal arrangement using silicon carbide (SiC) and alumina graphite (AL) faces.
- Single-phase 240v motor includes built-in thermal protection and an internal starting capacitor.
- Integrated automatic float switch allows for autonomous level control within residential sumps.
- Vertical G 1" 1/4 threaded discharge facilitates easy connection to standard plumbing configurations.
- Stainless steel AISI 431 shaft ensures high mechanical durability and alignment precision.
SPECIFICATIONS
| Max Flow | 330 L/Min |
| Max Head | 14 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.6 Amps |
| Suitable For | Domestic Slightly Dirty Water |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which domestic drainage liquids can this model handle?
Domestic collection pits can use DRBLUE100_2_G32VMGEX to remove slightly dirty water, rainwater and seepage from residential drainage systems in domestic drainage systems.
What automatic feature controls water level in the collection sump?
An integrated float switch starts and stops DRBLUE100 2 G32VMGEX automatically as the liquid level changes in the collection pit.
What are its motor and electrical ratings?
A 0.75 kW single-phase motor operates on 240 V in DRBLUE100-2-G32VMGEX for residential drainage and water removal for residential pumping.
How are the flow and head rated?
Maximum flow is 330 L/Min and maximum head is approximately 14 m for DRBLUE100/2/G32VMGEX, with both values taken from the product data.
Which discharge connection is fitted to the pump?
The vertical G 1 1/4 threaded outlet on DRBLUE1002G32VMGEX connects with compatible domestic drainage pipework for residential installation for domestic pipework.
